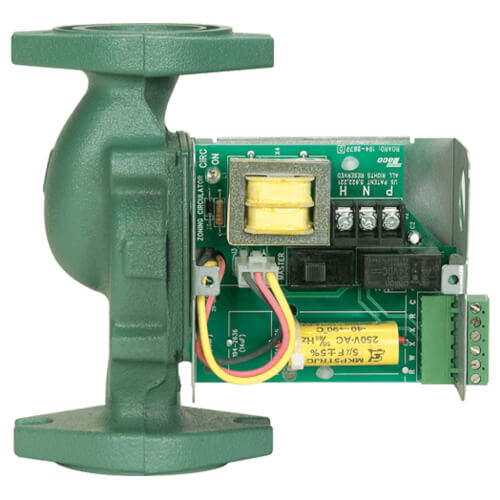

007 Cast Iron Priority Zoning Circulator 1/25 HP

Name: 007 Cast Iron Priority Zoning Circulator 1/25 HP
Brand: Taco
SKU: 007-ZF5-10
Price: 335.47 USD
Availability: OutOfStock

Brand:

Taco

SKU:

007-ZF5-10

Rating:

(0)

Q&A:

(0)

007 Cast Iron Priority Zoning Circulator 1/25 HP

Hover image to zoom

007-ZF5-10 has been discontinued

Discontinued August 21, 2024

This product was discontinued by the manufacturer.

MANUALS (6)

Replacement Parts List

Replacement Parts List

Replacement Parts

View All

Suggested Alternative:

007 Cast Iron Circulator, 1/25 HP

Brand:

Taco

SKU:007-F5

(452)

Order by today, receive 200 by Tuesday

VIEW ALTERNATIVE

Product Highlights

–

115V

1/25 HP

Flanged x Flanged Connection

23 MAX GPM

125 MAX PSI

Cast Iron

Description

–

To directly replace this item, please purchase both 007-F5 and SR501-4.

Features

Flange Type R
Universal Thermostat Compatibility, Thermostat Ready
Can be used in conjunction with other circulators or zone valves
Available in a full range of sizes from 003-0014
00 Reliability
Snap-In PC Board
Low and High Voltage Strips
Removable low-voltage terminal strip simplifies wiring installation
LED Power Light
UL and CSA Listed
100% Factory Tested
Made in USA

Typical Applications

Indirect Hot Water Heaters
Adding Zones
Zoning with Circulators
Prioritizing Under-Sized Zones

Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 007-042RP

Specs

–

Material:	Cast Iron
Amperage:	0.71
Application:	Heating
Voltage:	115V
Max Pressure (PSI):	125
Type:	Pump
Horse Power:	1/25
Connection Size:	1-1/4" 3/4" 1-1/2" 1"
Max Flow (GPM):	23
Flow Range (GPM):	0-23
Head Range (ft.):	0-10
Max Head (Ft):	10
Hertz:	60
Phase:	1
RPM:	3250
Temperature Range (F):	40°F - 240°F
Connection Type:	Flanged x Flanged
