Hover image to zoom
$684.21 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (6)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/8 HP
Flanged x Flanged Connection
10 MAX GPM
125 MAX PSI
Cast Iron
Description
–
Features
Typical Applications
- Universal Thermostat Compatibility, Thermostat Ready
- Can be used in conjunction with other circulators or zone valves
- Available in a full range of sizes from 003-0014
- 00 Reliability

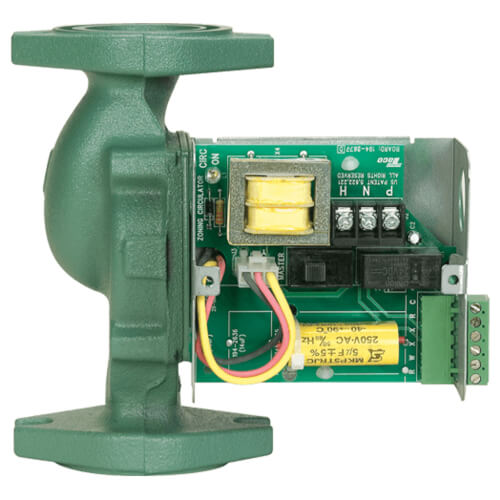

- Snap-In PC Board
- Low and High Voltage Strips
- Removable low-voltage terminal strip simplifies wiring installation
- LED Power Light
- UL and CSA Listed
- 100% Factory Tested
- Made in USA
Typical Applications
- Indirect Hot Water Heaters
- Adding Zones
- Zoning with Circulators
- Prioritizing Under-Sized Zones
Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Cartridge Assembly Complete: 009-021RP
Specs
–
| Material: | Cast Iron |
|---|---|
| Amperage: | 1.4 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 1/8 |
| Connection Size: | 3/4" 1" 1-1/4" 1-1/2" |
| Max Flow (GPM): | 10 |
| Flow Range (GPM): | 0-10 |
| Head Range (ft.): | 0-35 |
| Max Head (Ft): | 35 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3250 |
| Temperature Range (F): | 40°F to 230°F |
| Connection Type: | Flanged x Flanged |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
4 Replacement Parts
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.5 out of 2 reviews
100% would recommend this product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Long wait, but worth it.
This circulating pump is my back up for my hydronic floor heat. This pump is difficult to find but the SupplyHouse carried it but it was out of stock. Fortunately I had a rebuild kit, also from SupplyHouse. I found it no where else!
Cowboy Billy
Bishop, California
4 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
TACO Circulator
I use the Taco line of products in my business, and do highly recommend them.I will never give a 5 star for their products, because I believe their price is higher than it should be.
Fred
Amity Arkansas
13 years ago
Verified Buyer
Was this review helpful to you?
