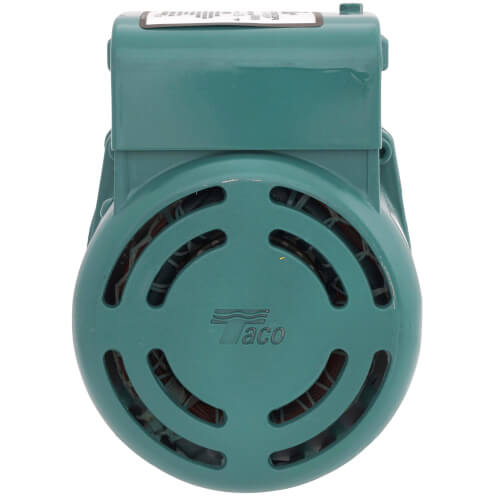

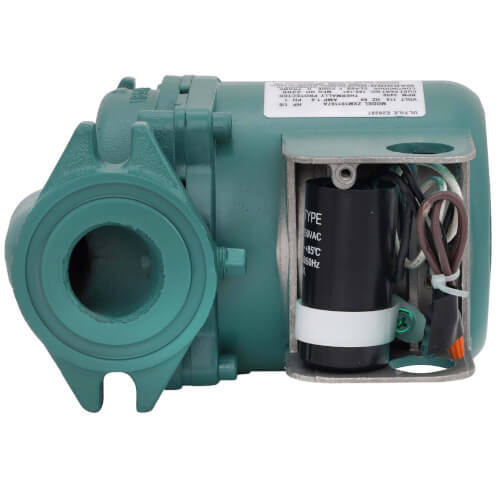

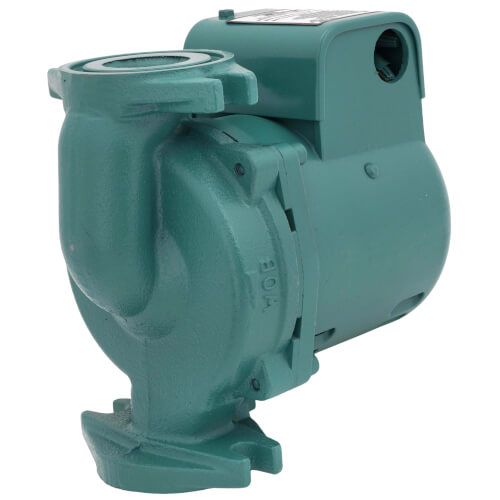

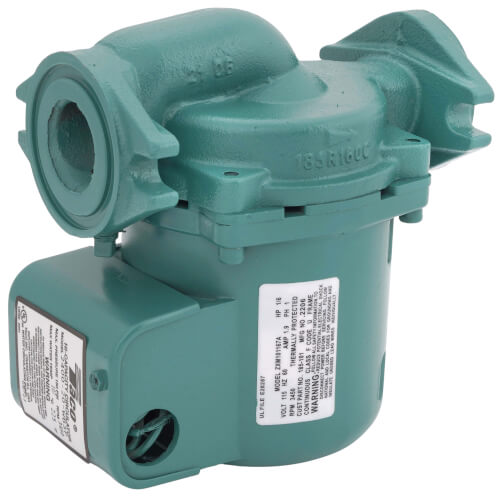

Cast Iron 2400 Series Wood Boiler Circulator Pump, 1/6 HP
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$495.26 each
In Stock
Get 7 Wed, Jun 10
Order by today, receive Wednesday
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/6 HP
Flanged x Flanged, Threaded Connection
32 MAX GPM
150 MAX PSI
Cast Iron
Description
–
The Taco Wood Boiler Series Hi-Capacity circulators are designed specifically for use on unpressurized outdoor wood boiler applications. Features include a quiet running, close-coupled, thermally protected motor assembly with permanent split-capacitor and permanently lubricated bearings. A stainless steel shaft, silicon-carbide mechanical seal and non-ferrous impeller make the Wood Boiler Series
Circulator an ideal choice for years of maintenance-free operation.
Features:
Features:
- Compact, space saving design
- Powerful close-coupled, maintenance free motor
- Superior efficiency, high starting torque
- Permanently lubricated, sealed for life bearings
- Rugged 1/2" Stainless Steel Shaft
- Carbon/Silicon-Carbide mechanical seal for long life
- Universal flange to flange dimensions - Ideal for retrofits
- Anti-Condensate design for chilled water
- Dual electrical knock-outs
- Dual pressure taps, suction/discharge
Specs
–
| Material: | Cast Iron |
|---|---|
| Application: | Heating |
| Voltage: | 115V |
| Amperage: | 1.9 |
| Max Pressure (PSI): | 150 |
| Type: | Pump |
| Horse Power: | 1/6 |
| Connection Size: | 3/4" 1-1/2" 1-1/4" 1" |
| Max Flow (GPM): | 32 |
| Max Head (Ft): | 29 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3450 |
| Temperature Range (F): | 40°F - 225°F |
| Connection Type: | Flanged x Flanged Threaded |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
6 Replacement Parts
Taco Seal Kit For 2400 Pumps
SKU: 2400-029RP
TacoTaco Body Gasket Kit
SKU: 1400-018RP
TacoImpeller Kit for 2400-20 Series Pumps
SKU: 2400-021RP
TacoSleeve Gasket, 920-007RP
SKU: 920-007RP
Taco1/6 HP Motor for 2400 Series Pumps (115V)
SKU: 2400-006RP
Taco
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.18 out of 22 reviews
82% would recommend this product
5 star
73%
4 star
9%
3 star
0%
2 star
0%
1 star
18%
Customer Images
Most Liked Positive Review
The Strong Silent Type
For high head hydronic use, this is an amazingly economical circulator. For less than half the price of competitive pumps, the silent operation, performance to fit the promises and drop-in replacement fit surprised me.
The only challenge was wiring, lacking a convenient termination for the ground wire but that's solved with a little extra work using a longer screw for the capacitor bracket.
Heavy duty case and performance so far tell me I made a good purchase. Thanks PexSupply!
VS
Most Liked Negative Review
3rd one in 5 years
I wish there was an alternative (I have to look further) to this. First one seized right after the warranty. I run the entire system a few times in the summer to avoid that. Thew that in the garbage. The last one we replaced is out there screaming (sounds like the bearings/some sort of alarm) and is leaking around the impeller housing (not the flanges). Water level fine, lines purged of air - running on coil heat until it arrives/installed. That should be cheap as the burner does/barn at over 6000 sq/ft. Not fun!
Kudos to Supply house on their pricing, great customer service and speedy delivery. Let's see if this #2 Taco explodes before the 3rd gets here!
Showing 1-10 of 22 reviews
3rd one in 5 years
I wish there was an alternative (I have to look further) to this. First one seized right after the warranty. I run the entire system a few times in the summer to avoid that. Thew that in the garbage. The last one we replaced is out there screaming (sounds like the bearings/some sort of alarm) and is leaking around the impeller housing (not the flanges). Water level fine, lines purged of air - running on coil heat until it arrives/installed. That should be cheap as the burner does/barn at over 6000 sq/ft. Not fun!
Kudos to Supply house on their pricing, great customer service and speedy delivery. Let's see if this #2 Taco explodes before the 3rd gets here!
No Taco for me!
Waverly, PA
2 years ago
Was this review helpful to you?
Great customer service supplyhouse greats 5 stars for that
This is my third one of these pumps under warranty. These are supposed to be designed for Outdoor wood boilers.
But I have had two fail in less than 2 years. If they weren't being replaced under warranty I would never buy another. Supply House has been great with their customer service on this pump they get 5 stars in my book.
Not happy
Ma
2 years ago
Verified Buyer
Was this review helpful to you?
I highly recommend this pump
I recommend this pump for outdoor wood burners.works great!
Moose
Bancroft Michigan
2 years ago
Verified Buyer
Was this review helpful to you?
I would definitely buy again
I put this pump on my outdoor wood furnace to pump to a big open loop hydronic system 40x60 slab. It runs the system very well with plenty of pressure.
Hardlyable
Missouri
3 years ago
Verified Buyer
Was this review helpful to you?
Good Price
Pump was alittle noisy at first but quieted down after about A month Pump is outside on wood boiler so it didn't bother me and seem to work fine
Jim
New Hampton NH
4 years ago
Verified Buyer
Was this review helpful to you?
i would buy nthis again
the first one was bad, and it was replaced within two days, Great
Stub
Walton NY
4 years ago
Verified Buyer
Was this review helpful to you?
Great pump
Watch a video on YouTube about how this pump was specifically designed for outdoor wood boilers and boy is it… it put the 0014 to shame much more powerful push. It sits at the stove 160' away and push's through a heat exchanger. It over loaded my pressure gauge in the line lol I had to replace it!
Pete
Central Ma
4 years ago
Verified Buyer
Was this review helpful to you?
I will purchase the most excellent service from SuplyHouse,
My purchase was a pump. It is exactly as advertised.
Jim
Williston VT
4 years ago
Verified Buyer
Was this review helpful to you?
Third pump starting to fail. in 18 months.
I just installed the 3rd circulation pump on my Geo-Thermal heating system..
The first pump failed after one year.
The second pump seized up after 3 months.
The third one, the one in the system right now, has developed a vibration.
The water temperature is 160 F at 15 lbs. well within the limits of the pump.
Geo-Thermal nightmare.
Klamath Falls, OR.
5 years ago
Verified Buyer
Was this review helpful to you?
I will use this company for all my wood boiler needs!
I purchased this pump and it works great! Customer service was very good and shipping was fast. I have bought a few things from this company and watched some of their instructional videos. They are a very good company
Ez
Indiana
5 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Good afternoon - I was wondering if there was a rebuild kit or seal kit for this pump? If the pump fails is it junk or is there a way to rebuild? Thanks, Zach
Asked by Zach 13 years ago
Add your answer
Verified Reply- PexSupply StaffThe seal kit is part 2400-002RP. Replacement motors, body and flange gaskets, and impellers are also available as replacement parts for the unit.
