$166.32 each
In Stock
Get 17 Thu, Jun 18
Order by today, receive Thursday
Size:
3/4"
Connection Type:
C x C
Flow Capacity (Cv):
2.3
Features:
Gauge
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
C x C Connection
3/4"
2.3 Cv
3-Way
20 MAX GPM
200 MAX PSI
Description
–

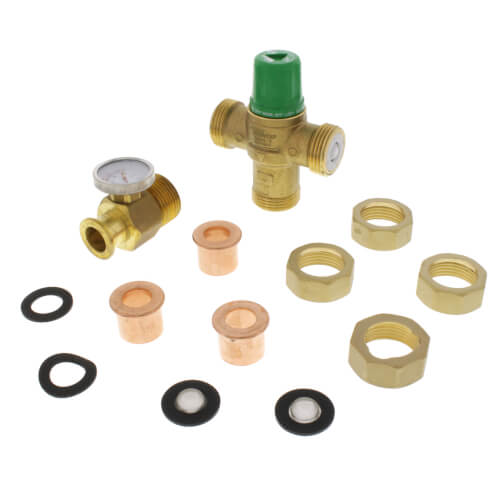

Includes:
Applications:
- (1) Taco 5002-N3 Lead Free Mixing Valve
- (1) Temperature gauge
- (1) Outlet Temperature Strip
Applications:
- Low Temperature and Radiant Systems
- Domestic Hot Water
- less than .25% lead
- ASSE 1017 Listed
- Ideal for Domestic Water Distribution Points
- Suitable for use in Potable Water
- Delivers Stable Mixed Water Temperature
- Extended Mix Temperature Range of 85-176°F (29-80°C)
- Tamper-Resistance Cap
- Union and NPT Options
- Sweat, NPT, Pex, CPVC Union Connections
- Low Headloss
- Outlet Temperature Strip
- Optional Dial Gauge and Adaptor
Specs
–
| Features: | Gauge |
|---|---|
| Connection Type: | C x C |
| Size: | 3/4" |
| Connection Method: | Sweat |
| Body Pattern: | 3-Way |
| Max Flow (GPM): | 20 |
| Max Pressure (PSI): | 200 |
| Flow Capacity (Cv): | 2.3 |
| Standards Met: | ASSE 1017 |
| Material: | Forged Brass |
| Application: | Point of Source |
| Lead Free: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.5 out of 18 reviews
88% would recommend this product
5 star
83%
4 star
6%
3 star
0%
2 star
0%
1 star
11%
Customer Images
Most Liked Positive Review
This is a reliable mixing valve with consistent temps
I have 4 of these mixing valves running in my house in multiple applications, radiant floor water, domestic hot water, driveway de-ice, and warm water spickets. They are consistent and reliable, easy to install, and seem to last a long time (I have one yet to fail). The integrated check valves work well. My only caution is to be VERY careful when sweating them in, the check valves melt easily. I keep a spare on hand, but it doesn't look like I'll ever need it (knock on wood).
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
This Mixing valve is junk
This is the first one that bought. There is another review for the second valve that I got. I tried to use it in in floor heat. I have a high end boiler that reads outside temperature to find its set point. This mixing valve could not handle the changing temperature it was all over the place 106 to 160 it had no control at all. The first one did the same thing. So I replaced it whit a Watts LFMMV-UT-M1 mixing valve now the in floor heat stays at 115 +/-1.
Showing 1-10 of 18 reviews
Exactly as expected
Mixes as expected
Maddog
SC
2 years ago
Verified Buyer
Was this review helpful to you?
Good valve, works as expected, but came short one gasket
Overall a great valve.
I'm not sure if it was opened or something, but it came with one gasket for the mating surfaces missing entirely. Took quite a number of trips to local shops to find one the right size.
Ignoring that, it does what it's supposed to. Drops my 150F water to just under 125F.
Note that the setting adjustment does have 'H' and 'C' directional indicators to show which way to turn the dial....I hadn't noticed these initially, so figured I'd mention as they are handy.
Overall, recommended!
Jerry
Burlington, VT
3 years ago
Was this review helpful to you?
Yes
Using for radiant floor heating. Works Great! Great service
RAP
Evansville WY
3 years ago
Verified Buyer
Was this review helpful to you?
very good product
it was for my furnace for my hot water and it worked of perfectly,thanks
carnutdean
meredith,nh.
4 years ago
Verified Buyer
Was this review helpful to you?
I will be buying a few more of these as time goes on.
Works as expected no problems, fast shipping.
Grover59
East Millinocket ME
5 years ago
Verified Buyer
Was this review helpful to you?
This Mixing valve is junk
This is the first one that bought. There is another review for the second valve that I got. I tried to use it in in floor heat. I have a high end boiler that reads outside temperature to find its set point. This mixing valve could not handle the changing temperature it was all over the place 106 to 160 it had no control at all. The first one did the same thing. So I replaced it whit a Watts LFMMV-UT-M1 mixing valve now the in floor heat stays at 115 +/-1.
Chris
IL
6 years ago
Verified Buyer
Was this review helpful to you?
Temperature gauge spins and cannot read temp
The mixing valve is fine. You need to remove the cap to adjust it. No Clear indicator on the valve setting. Which would be ok if the temp gauge did not spin and change the displayed temp.
Ernie
Bronx NY
7 years ago
Verified Buyer
Was this review helpful to you?
Good unit
I have used these for over 10 years and never had a failure. Great mixing valve, easy operation.
Smantion
Titusville Pa
7 years ago
Verified Buyer
Was this review helpful to you?
Works great
Very intuitive product to set up. Fine level of adjustment. I was able to accurately set hot water temp by leaving a faucet on and turning the valve until the temp gauge was at 120 degrees. It's much easier to do it this way than to use the valve without the temp gauge where you would be guessing and checking by running back and forth between WH and a faucet. This also has check valves built in and mesh screen washers to protect the valve.
plumber
Oakland, CA
8 years ago
Verified Buyer
Was this review helpful to you?
Works as Advertised
I bought this unit to replace a Taco Mixer that was 30 years old that had ceased functioning years ago. This one works great and is especially more desirable because it has 3 unions instead of only 2 like the old one. Hopefully when this new one wears out, it will be much easier to replace.
Targa Man
Howard County, MD
8 years ago
Verified Buyer
Was this review helpful to you?
