$165.92 each
In Stock
Size:
3/4"
Connection Type:
MNPT x MNPT
Flow Capacity (Cv):
2.3
Features:
Gauge
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
MNPT x MNPT Connection
3/4"
2.3 Cv
3-Way
20 MAX GPM
200 MAX PSI
Description
–

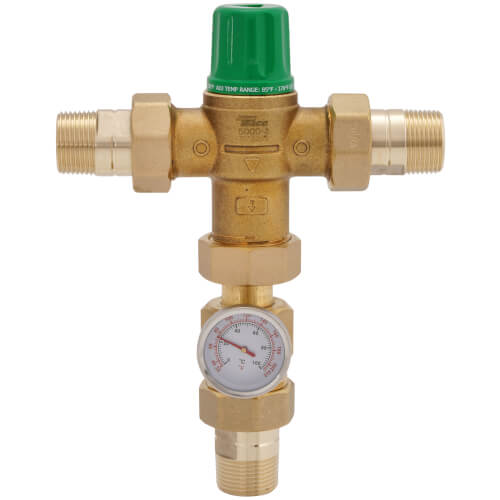

Taco may be renowned for their circulators, but those are not the only pieces of efficient, reliable hydronic mixing equipment that they make. The 5003-T3-G is a low head loss brass mixing valve, ideal for a wide range of hydronic heating and domestic hot water applications. An integral thermostatic element monitors and regulates water temperature. The 5003-T3-G is capable of handling temperatures up to 176 degrees Fahrenheit to ensure potability, and ASSE 1017 certification guarantees that the water will be mixed down to a usable temperature before flowing through your system. The valve features a tamper resistant cap to prevent alterations to the mixing temperature. Dependable temperature mixing for your hydronic system is as easy as adding a 5003-T3-G.
Features:
Includes:
Applications:
Features:
- less than .25% lead
- ASSE 1017 Listed
- Ideal for Domestic Water Distribution Points
- Suitable for use in Potable Water
- Delivers Stable Mixed Water Temperature
- Extended Mix Temperature Range of 85-176°F (29-80°C)
- Tamper-Resistance Cap
- Union and NPT Options
- Sweat, NPT, Pex, CPVC Union Connections
- Low Headloss
- Outlet Temperature Strip
- Optional Dial Gauge and Adaptor
Includes:
- (1) Taco 5003-T3-G Lead Free Mixing Valve
- (1) Temperature Gauge
- (1) Outlet Temperature Strip
Applications:
- Low Temperature and Radiant Systems
- Domestic Hot Water
Specs
–
| Features: | Gauge |
|---|---|
| Body Pattern: | 3-Way |
| Connection Type: | MNPT x MNPT |
| Size: | 3/4" |
| Connection Method: | Threaded |
| Max Flow (GPM): | 20 |
| Max Pressure (PSI): | 200 |
| Flow Capacity (Cv): | 2.3 |
| Standards Met: | ASSE 1017 |
| Material: | Forged Brass |
| Application: | Point of Source |
| Lead Free: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Connection Type
Size
Connection Method
Max Pressure (PSI)
Standards Met
CURRENT ITEM
MNPT x MNPT
3/4"
Threaded
200
ASSE 1017
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Hot water tank mixing valve
Easy to install. required a few pipe fittings and an extra hose available at most hardware stores. low degree of ingenuity to install. The temperature guage (supplied) is a must have and the valve holds 120 deg f constant line temp with 150 deg f tank temperature. Almost doubles the constant supply temperature from the tank.
gwooty
Tucson, AZ
8 years ago
Verified Buyer
