$700.75 each
In Stock
Get 4 Fri, Jul 3
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
PEX-b
Oxygen Barrier
Push Fit, PEX Compression, Clamp, Crimp, PEX Press
1000' Length
1/2"
Coil
Description
–

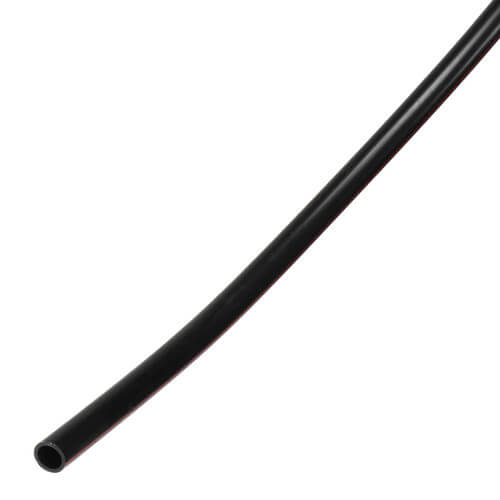

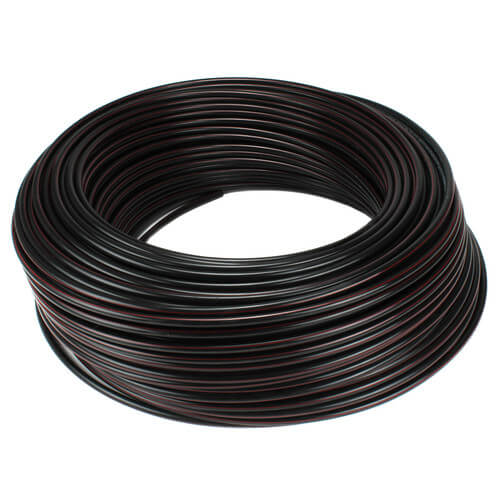

ViegaPEX Barrier tubing is produced from cross-linkable, high density polyethylene resin. ViegaPEX Barrier includes four layers. The first layer is cross-linked, high density polyethylene. The second layer is an adhesive for the third layer, the ethylene vinyl alcohol layer (EVOH oxygen barrier). The fourth layer is another thin layer of polyethylene, applied on the outside to protect the EVOH layer from damage. EVOH is highly resistant to the passage of oxygen.
ViegaPEX Barrier tubing is recommended for hydronic radiant heating, cooling and snow melting systems using water or a water/glycol mix as the heat transfer media. Tubing may be installed in concrete, gypsum based lightweight concrete, sand, asphalt (in accordance with special guidelines) in or under wood flooring or behind wallboard or plaster. ViegaPEX Barrier may also be used as transfer lines for baseboard heating systems with a maximum operating temperature of 200°F @ 80 psi.
Tubing is marked with manufacturer, ViegaPEX Barrier, nominal size, rating, codes and standards, approvals, date, material code and location of production. Tubing is third party tested to the requirements of the stated ASTM and CSA standards. Tubing includes incremental footage markings to assist with loop layout. ViegaPEX is certified to NSF 61 and 14 for use as part of, or connected to a potable water system. ViegaPEX Barrier comes with a 90 day UV protection.
ViegaPEX Barrier tubing is recommended for hydronic radiant heating, cooling and snow melting systems using water or a water/glycol mix as the heat transfer media. Tubing may be installed in concrete, gypsum based lightweight concrete, sand, asphalt (in accordance with special guidelines) in or under wood flooring or behind wallboard or plaster. ViegaPEX Barrier may also be used as transfer lines for baseboard heating systems with a maximum operating temperature of 200°F @ 80 psi.
Tubing is marked with manufacturer, ViegaPEX Barrier, nominal size, rating, codes and standards, approvals, date, material code and location of production. Tubing is third party tested to the requirements of the stated ASTM and CSA standards. Tubing includes incremental footage markings to assist with loop layout. ViegaPEX is certified to NSF 61 and 14 for use as part of, or connected to a potable water system. ViegaPEX Barrier comes with a 90 day UV protection.
Specs
–
| Length (Feet): | 1000' |
|---|---|
| Size: | 1/2" |
| Shape: | Coil |
| Tubing Type: | Oxygen Barrier |
| Material: | PEX |
| Color: | Black |
| Application: | Heating |
| Max Pressure (PSI): | 80 |
| Max Temp (F): | 200°F |
| Grade: | PEX-b |
| Warranty: | 10 Year |
| Standards Met: | ASTM F877 ASTM F876 NSF |
| Fitting System Compatibility: | Push Fit PEX Compression Clamp Crimp PEX Press |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Need help calculating?
Use Our CalculatorProduct Reviews
5 out of 5 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
Perfect product for the application
Used this for a solar heater to heat an above ground pool. So far it works wonders.
The Engineer
Chicago, IL
4 years ago
Verified Buyer
Was this review helpful to you?
Good quality
Good quality
ISJ
Millville, PA
5 years ago
Verified Buyer
Was this review helpful to you?
Great product
Product really good I never used it before but the customer demanded that he only wanted that specific one and it comes the next day quick delivery
Frank
Ny
5 years ago
Verified Buyer
Was this review helpful to you?
Cost more but worth it
This product is very rigid but strong. I use it due to how strong the material is. When you have rebar on top of the tubing and concrete wheelbarrows going over it to dump the concrete, you need a very strong material to handle the abuse. The downside is it is very rigid and takes some care when laying down. However, even with 5" spacing, it is workable.
Todd
Minnesota
7 years ago
Verified Buyer
Was this review helpful to you?
excellent and informative
I use this product for radiant floor heating, home runs to boiler room from manifold locations. An excellent value but a little difficult to work with in cold weather.
D Pressnall
Napa, Ca
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
11 Questions11 Questions
Q: Can this tubing be for a tile job tacked down right on top of the wire lathe with mud floor right over it?
Asked by Charles 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it could. 3/4" of pour over the top of the tubing is recommended.
Was this review helpful to you?
Q: How well does this tubing recover if it is kinked? I am threading 1/2' ViegaPEX Barrier tubing through joists for a radiant floor install, and I managed to kink it in two places while threading it. Is this more likely to fail once it is under pressure? Do I need to replace the tubing, or repair the sections that were kinked with a pex press coupling? Thanks!
Asked by Jeffrey 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffViega tubing is PEX-b grade and unfortunately, when PEX-b is kinked it is not something that is fixable without splicing out the kinked sections and installing a coupling to join the two pieces back together. For future reference, PEX-a graded tubing is more durable and utilizing a heat gun can make the tubing retract back to its original shape after a kink.
Was this review helpful to you?
Q: Will this work with the viega pex press fittings?
Asked by Nate 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes, this is compatible with a press connection.
Was this review helpful to you?
Q: at what temperture will this piping freeze? I have to run the pex, strapped to the roof joice of an A frame house. I was going to insulate the tubing, using foam insulation. Will this be enough?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe tubing will freeze when the liquid inside it freezes. This would be 32 °F for a 100% water mixture. If you're worried about a freeze issue we would recommend using heat tape and insulation on the piping.
Was this review helpful to you?
Q: Can you paint this type of pex tubing?
Asked by badabing man 15 years ago
Add your answer
Verified Reply- PexSupply StaffNo, no kind of PEX tubing can be painted.
Was this review helpful to you?
Q: Can Viega Pex Barrier also be used for potable water?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffNo. This tubing in not NSF approved
Was this review helpful to you?
Q: can i use sharkbite connectors with this tubing to connect to a baseboard heating system?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, SharkBite fittings are compatible with ViegaPEX tubing.
Was this review helpful to you?
Q: Is the max temperature rating for the tubing based on the pressure rating? i.e. can the tubing handle more temperature at a lower pressure?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it is. The maximum temperature rating for PEX tubing is 200°F, but this is at 80psi.
Was this review helpful to you?
Q: How long will this tubing last in the sun? I would like to make a solar collector with it.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffPEX tubing is not UV resistant; it may not even last a month in direct sunlight. We recommend that you sleeve the tubing in PVC. This will protect the PEX from UV rays.
Was this review helpful to you?
Q: What is the ID of this 1 1/2" PEX?
Asked by Doug 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe inside diameter of the 1 1/2" ViegaPEX is 1.244".
