Description

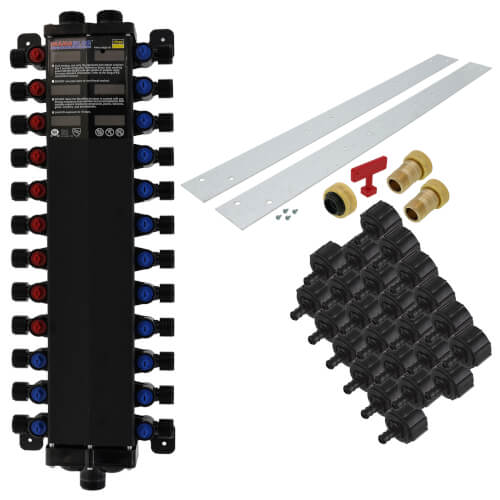

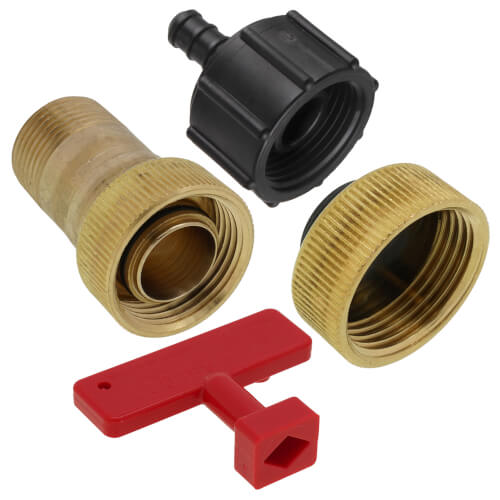

This Convenient Complete Viega MANABLOC Plumbing Package with Port Adapters Includes the Following:
- (1) 49620: 24 Port MANABLOC (9 Hot, 15 Cold)
- (24) 50023: 3/8" PolyAlloy Crimp x MANABLOC Port Adapter (Lead Free)

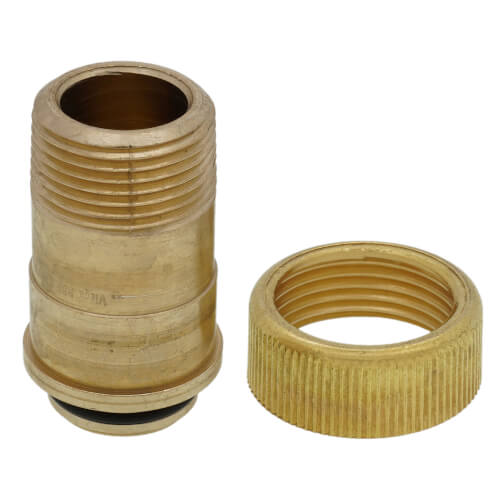

- (2) 46646: 3/4" MNPT x MANABLOC Supply Adapter

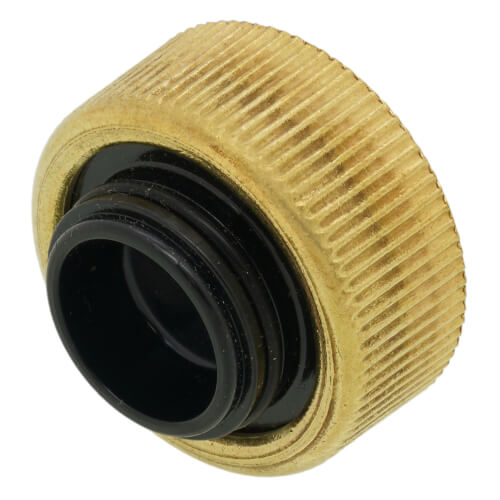

- (1) 53601: MANABLOC Supply End Cap
- (1) 45716: Set of 2 Mounting Straps

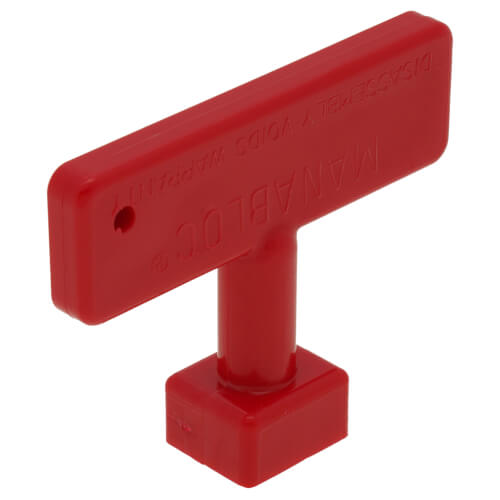

- (1) Additional 50601: Valve T-Handle (1 comes with MANABLOC)
**Important**
- The MANABLOC plumbing system carries a maximum pressure/temperature rating of 100 psi @ 180°F. Excessive pressure to the MANABLOC will cause leaks.
- Do not allow chemicals such as PVC glues or solder flux to come into contact with the MANABLOC. They will compromise the integrity of the MANABLOC and cause leaks.
- Please consult the MANABLOC install instructions for a more comprehensive list of chemical materials that will cause harm to the MANABLOC plumbing system.
Specs
| Application: | Plumbing |
|---|---|
| Type: | MANABLOC Package |
| Port Size: | 3/8" |
| Outlet Type: | PEX |
| Number of Outlets: | 24 |
| Number of Outlets (Cold): | 15 |
| Number of Outlets (Hot): | 9 |
| Tubing Compatibility: | PEX |
| Inlet Type: | MNPT |
| Loop Connection: | PEX Crimp |
| Manifold Compatibility: | Manabloc |
| Fitting System Compatibility: | Crimp Clamp |
| Supply Connection: | Male NPT |
Contact
Happy Independence Day!
You May Also Need
Product Q&A
12 QuestionsQ: Can I connect to the 3/4 NPT with a copper line or would this put to much stress on the manifold from expansion and/or contraction? If so how do you recommend connecting it.
Asked by TB 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, the manabloc can be connected to a copper supply line without issue.
Q: Can I surface mount the Manbloc on a suitably sized piece of 1/2" plywood attached to the garage wall? I would guess I would bring each pex pipe out into a plastic bend support, that would be screwed to the plywood, and turn up into the attic? Thanks.
Asked by Capt. Epsilon 13 years ago
Add your answer
We always attach our blocks to plywood usually 3/4 plywood. Three to four feet wide is best. Use a gentle bend as you connect to the block. We never use the premade bends at the block just use nail clips to secure the tubing to the plywood. It's pretty easy to make it look professional with the nail clips and leaving plenty of tubing to make the sweeps into the block. Rick
Yes you can.I mounted mine to a piece of 3/4 plywood no problem
Q: I have a zurn manifold that has 1 inch inlet. These only have a 3/4 inlet. I have a 1 inch supply line: . My problem is I'm afraid that the reduction from a 1 inch to 3/4 would not be a great choice. Please let me know if I am wrong here. I don't wanna have reduced flow due to smaller inlet. Thank you!!!!!
Asked by greektruck 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou can use MANABLOCs with 1" inlet lines. You just need to get 1" supply adapters (part 46656 for threaded) instead of the 3/4" ones included in this package.
Much depends on water pressure. In a typical installation the reduction in flow is minimal. If you are concerned you can split the inlet and connect to both inlets in the manifold. Sent from my iPhone
Won't be an issue with either pressure or volume. Rick
Q: Would it be possible to include a flow diagram for the MANABLOC’s? I see two connections at one end and one at the other. Then, a few scenarios detailing the proper use would be nice.
Asked by Fressssh 14 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to page 11 of the document linked below. http://s3.pexsupply.com/manuals/1303922718433/54567_PROD_FILE.pdf
The manifold I bought and installed was a larger size but i believe they are "plumbed" the same! The single inlet I placed at the bottom and used this for my cold water (well) inlet. The fitting then on the top on the cold water side (as indicated by the blue knobs) was used to feed the cold water to the water heater. The remaining fitting on the top (on The red handle side) was used to bring the hot water from the water heater back into the manifold. Hope this helps.
Q: What needs to be done to a port that is not used?
Asked by Didactic Jim 14 years ago
Add your answer
Verified Reply- PexSupply StaffAll you need to do is close the valves on those ports, but you can also cap them off (using part 36205) for an extra layer of protection and to give the MANABLOC a more finished look.
You can buy caps and they just screw in. It is as easy as it can get.
Nothing needs to be done to the port that isn't used. The built in ball valve isolates it. Sent via DroidX2 on Verizon Wireless™
Q: If I have a choice between the crimp or compression fittings , is one better than the other ? The unit will be drained for the winter months. Also, the water supply is spring water , & or well water. I'm planning on using an instant on hot water supply. I've heard that the hard water can corrode the element in the instant on water supply? Will the hard water effect the manifold? Thanks
Asked by frank 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe method of connection on the MANABLOC is more of a preference than anything else. Some people prefer crimp connections because they have the tools to use for it and others prefer compression connections because it requires no tools and because of familiarity. In regards to the instant hot water, many of those have stainless steel heat exchangers so they are very resistant to corrosion. Hard water should not have an adverse effect on the MANABLOC.
I prefer to use crimp connections as it is a much faster install as long as you have the tool. As for hard water, we have extremely hard water and I have had no issue with this manifold in the year we have been using it. Typically hard water affects heating elements but not piping as much.
Use crimp it's quick and easy and the tool is pretty inexpensive
Q: I am installing a tankless hot water system.I have read the instruction manual on how to pressurize and bleed the air out of the system.The hot water tank actvates on pressure drop in system.Will I have trouble pressurizing and bleeding the air out of this manifold.I have read the instruction manual for this valve and it only says to make sure valves are open that are connected..
Asked by Cookie 14 years ago
Add your answer
You will not have any problem bleeding the air from the manifold. Keep in mind that whenever you install these they are always filled with air. Just open the valves and let the water fill the manifold and lines. Sent from my iPad
As long as you bleed the individual lines that you have hooked up you should not have any problems. I used my manifold with a water heater and now with a tankless water heater and didn't have any issues bleeding the air, I just had to bleed it at each fixture in the house.
Q: Can this be used with the clamp style connectors?
Asked by Refit1 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the fittings that come with the crimp-style MANABLOC work with either copper crimp rings or stainless steel clamp rings.
Q: Does it matter what brand of pex tubing/crimps I use with the manabloc manifolds?
Asked by diyer 15 years ago
Add your answer
Verified Reply- PexSupply StaffNo, it does not. Any brand should be compatible. You should use PEX tubing without an oxygen barrier that is approved for potable water use.
Q: What is the difference between NPTS-36303 and NPTS-41303? I can't seem to locate the spec difference in the descriptions. thanks
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffNPTS-36303 is a compression MANABLOC package. It has compression fittings at its ports. The NPTS-41303 package has crimp connections at the ports.
