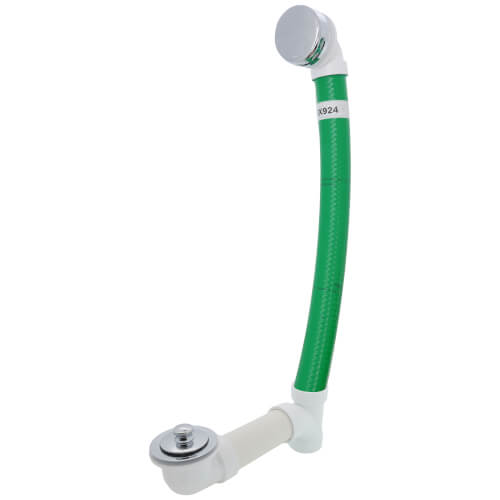

Innovator Flex924 Flexible PVC Bath Waste with Push Pull Bathtub Stopper and Innovator Overflow (Chrome Plated)

Note: Image may not represent actual product.

Flex900 Innovator Models Flex916 / Flex924 - Flexible tubing in place of the rigid PVC overflow pipe allows the overflow tubing to easily bend over from a misaligned drain pipe to the overflow hole of the tub. Model Flex924: Fits most tubs to 24” high (length of flexible tubing = 24")

Features:

• Eliminates the need to use 45° elbows for offsets. Just bend the flexible tubing to correct the misalignment
• Eliminates all screws and a separate overflow test plug
• Eliminates leaks due to loose overflow attachment
• Eliminates dual inventory of one- and two-hole overflow plates
• Overflow elbow/flexible tubing joint is factory-welded; flexible tubing/sanitary tee joint is designed to cut and fit in the field
• Non-corrugated, flexible PVC tubing
• Manufactured in compliance with ASME A112.18.2-2005/CSA B125.2-2005; and IAPMO PS 69-2006
• Includes built-in test membrane
• Piping: Schedule 40, available only in PVC

Thread Size:

• 11/2” – 111/2 NPSM (Coarse Thread)
• 1.865” Major Diameter (Outside Thread Diameter)
• 11.5 threads per inch
