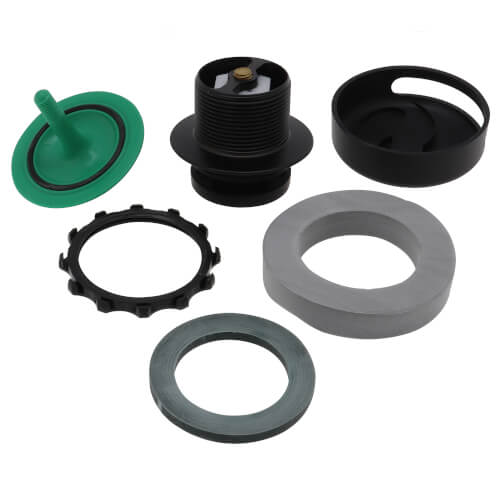

The Watco 901 Innovator Half Kit is a sturdy 1.5 in. Schedule 40 PVC pipe with solvent-weld assembly. Half kits include drain elbow, coarse-thread strainer body, stopper, drain test plug, gaskets, overflow elbow
with test membrane, retainer nut, high-flow, snap-on Innovator® overflow faceplate. Testable up to five floors.
Features:
- Eliminates all screws
- Eliminates need for separate overflow test plug
- Eliminates leaks due to loose overflow attachment
- Eliminates dual inventory of one- and two-hole overflow plates
Approvals:
- Manufactured in compliance with ASME A112.18.2-2005/ CSA B125.2-2005
Threads (Strainer Body and Drain Elbow):
- 1-1/2"-11-1/2" NPSM (Coarse Thread)
- 1.865" Major Diameter (Outside Thread Diameter)
- 11.5 threads per inch
