Description

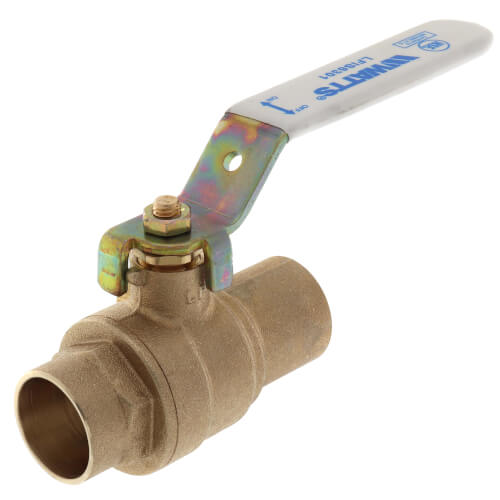

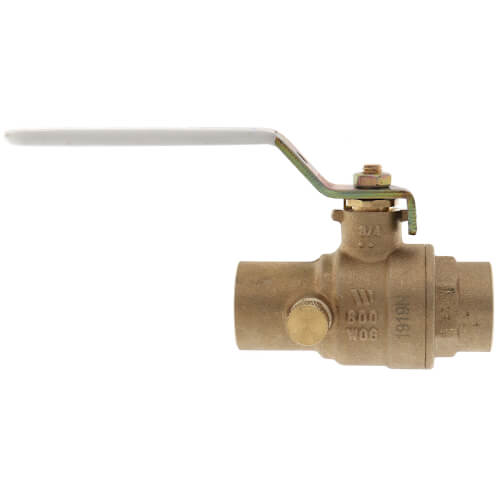

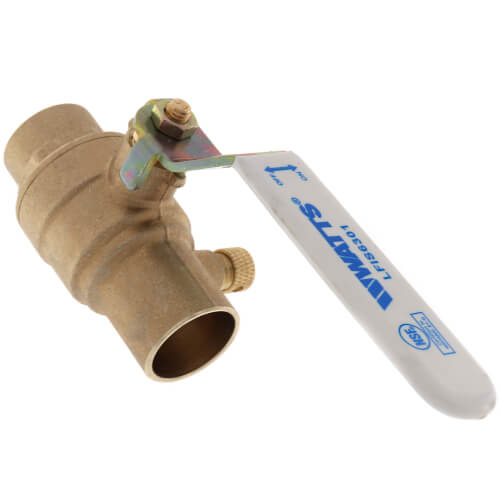

This 3/4 inch two-piece, full port ball and waste ball valve is used in commercial and industrial applications. It features a side drain waste port that allows draining or venting of the downstream line when the valve is in the closed position. It has a lead free brass body, 3/4 inch solder end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, and a bottom loaded blowout proof stem. The temperature range is 0 to 350 degrees F (minus 18 to 177 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock.

Features
  • Adjustable packing design
  • Lead free brass body construction
  • Side drain waste port for downstream draining or venting
  • Chrome plated lead free brass ball
Hide Description
Manuals (1)
Specs
Size:

3/4"

WOG:

600

Material:

Brass

Connection Method:

Sweat

Connection Type:

C x C

Handle Style:

Lever

Max Temp (F):

350°F

Min Temp (F):

-40°F

Features:

Bleeder

Lead Free:

Yes

Port Type:

Full Port

Valve Construction:

2 piece

×
