$413.07 each
In Stock
Get 5 Thu, Jun 25
Order by today, receive Thursday
MANUALS (1)
This item replaces: 0379086
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2"
Yes
Brass
FNPT x FNPT Connection
Female Thread Type
125 psi (WSP), 400 psi (WOG)
Description
–

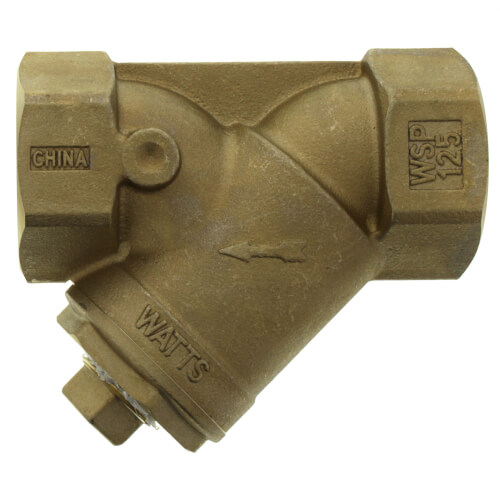

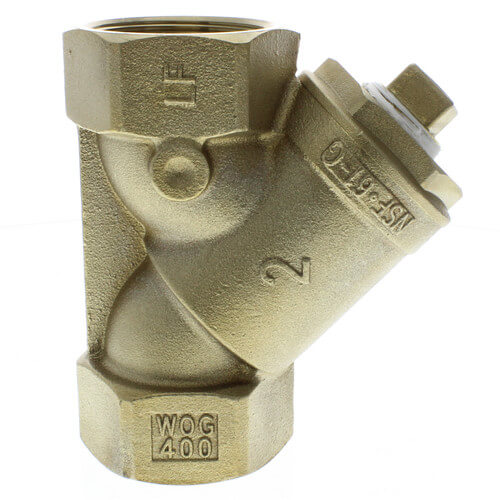

Series LF777SI, LFS777SI Lead Free* Brass Wye-Pattern Strainers feature a wye-pattern, Lead Free* brass body stainless steel screen and solid tapped retainer cap with NBR gasket. Model LF777SI comes with threaded connections and is available in sizes 3/8 to 3 in. (10 to 80mm). Model LFS777SI comes with solder connections and is available in sizes 1/2 to 2 in. (15 to 50mm). Model LF777SI - Maximum Pressure (non shock): 400psi (27.6 bar) @ 210°F (99°C) WOG, 125psi (8.6 bar) @ 353°F (178.3°C) WSP. Model LFS777SI - Maximum Pressure (non shock): 400psi (27.6 bar) @ 150°F (66°C) 15psi (103 kPa) @ 250°F (121°C) WSP.
Specs
–
| Size: | 2" |
|---|---|
| Lead Free: | Yes |
| Material: | Brass |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Thread Type: | Female |
| Pressure Rating: | 125 psi (WSP) 400 psi (WOG) |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Material
Connection Type
Connection Method
Thread Type
CURRENT ITEM
2"
Brass
FNPT x FNPT
Threaded
Female
You May Also Need
Product Reviews
4.63 out of 19 reviews
89% would recommend this product
5 star
79%
4 star
11%
3 star
5%
2 star
5%
1 star
0%
Customer Images
Most Liked Positive Review
Great service
rebuilt the service entrance to my house and saved a ton with these guys. Everything came wrapped individually, packed properly and "as advertised". Best prices I found on the web.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Strainer Retainer Cap Leaked
I bought the LFS777SI 3/4" WYE strainer with a solder connection at each end.
Soon after I started using the new strainer, I noticed that the strainer retainer cap had a slight leak. It seemed like with the main water pressure would peak, a few drops of water would leak out leaving a hard water residue on my copper pipe and brass fittings. Finally, one day I had my adjustable wrench in hand and thought, "I'll just tighten it up a bit and see if that stops it." Well, as soon as I tightened the cap 5 degrees, water started spraying out, and when I backed it off it was dripping steadily. So, I had to shut off water to the house, remove the cap and see what was wrong. It looks like there was a thin rubber gasket, maybe too thin for the space to be filled, or too small a diameter. I took it to the local hardware store and found an O-ring the same diameter and some lubricant to allow tightening the cap on the O-ring without stretching or tearing the O-ring. With the new O-ring installed, the retainer cap is bone-dry. If I could do it, why couldn't Watts?!?!?!
Showing 1-10 of 19 reviews
needed one of these years ago
had a piece of solder come through my system, after a piping change, that locked up my circulator pump. luckily caught it before it smoked the pump. this will prevent this from happening again.
gary l
Minnesota
1 years ago
Verified Buyer
Was this review helpful to you?
Strainer Retainer Cap Leaked
I bought the LFS777SI 3/4" WYE strainer with a solder connection at each end.
Soon after I started using the new strainer, I noticed that the strainer retainer cap had a slight leak. It seemed like with the main water pressure would peak, a few drops of water would leak out leaving a hard water residue on my copper pipe and brass fittings. Finally, one day I had my adjustable wrench in hand and thought, "I'll just tighten it up a bit and see if that stops it." Well, as soon as I tightened the cap 5 degrees, water started spraying out, and when I backed it off it was dripping steadily. So, I had to shut off water to the house, remove the cap and see what was wrong. It looks like there was a thin rubber gasket, maybe too thin for the space to be filled, or too small a diameter. I took it to the local hardware store and found an O-ring the same diameter and some lubricant to allow tightening the cap on the O-ring without stretching or tearing the O-ring. With the new O-ring installed, the retainer cap is bone-dry. If I could do it, why couldn't Watts?!?!?!
Home Handyman
Littleton, CO
4 years ago
Was this review helpful to you?
I would buy it again
Good unit
Plumberman
Seaside ca
6 years ago
Verified Buyer
Was this review helpful to you?
Works great easy to install
Put it on a rpz that was getting lots of crud in it. No problems with it since.
ERIC
TX
7 years ago
Verified Buyer
Was this review helpful to you?
Good buy for the price
Did exactly what i wanted it to .
journeymen
Louisville ky.
7 years ago
Verified Buyer
Was this review helpful to you?
FYI
If you're looking to install a valve in place of the plug, the thread size is 1/4. Neither product overview nor description mention that.
sterio
Milwaukee WI
8 years ago
Was this review helpful to you?
3" Wye Strainer
We needed this strainer fast...SupplyHouse "De-Livered"!
Uncle Big Bad
KY.
8 years ago
Verified Buyer
Was this review helpful to you?
Wye? Because we like you!
It does it's thing, seal doesn't leak, strains the water it's all good.
Being lead-free makes it's easy to snuggle up to!
JayBro
Ohio
9 years ago
Verified Buyer
Was this review helpful to you?
I would buy this again, only place I could FIND this item..
Easy to open.
DJB
Dublin, VA
9 years ago
Verified Buyer
Was this review helpful to you?
Easy install
This will make it so easy to filter out any debris in my hydronic system.
Harley_Dave
Baden, PA
10 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: What size is the threaded plug in the side of the strainer ?
Asked by John 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe plug is 1/2" on the 1" strainer.
Was this review helpful to you?
Q: What is the standard ss mesh size? Are there options on the mesh size? What are the optional mesh sizes for this size strainer and the 2" strainer?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis strainer features a standard screen with #20 mesh and 304 stainless steel. Watts does not offer different screens.
Was this review helpful to you?
