$428.81 each
Backorder
Size:
1"
Connection Type:
C x C
Temperature Range (F):
60°F - 120°F
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
C x C Connection
1"
60°F - 120°F
Yes
ASSE 1017 Standards Met
Description
–

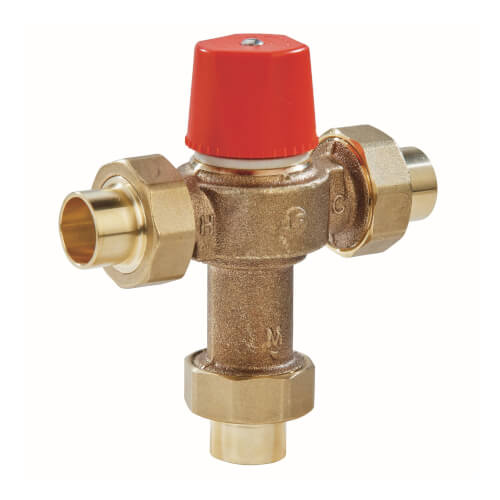

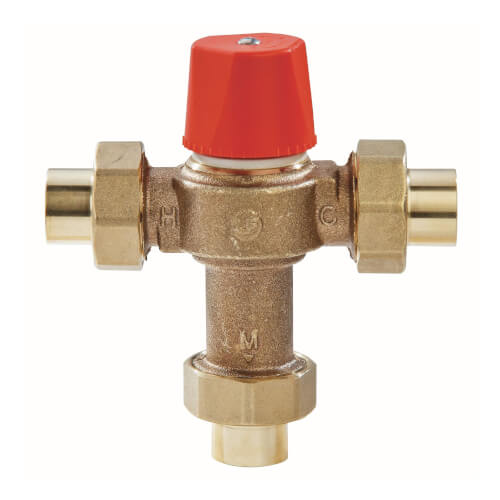

This 1 inch lead free hot water control valve is designed for installation on water heating equipment to provide tempered water to point-of-use fixtures and is ideal for radiant heat applications. The double throttling design combines hot and cold water control for a sensitive response to water temperature changes in the mixing chamber. It consists of a lead free brass body, solder union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves, virtual shutoff upon loss of cold water supply, and a locking mechanism for the temperature setting. The maximum pressure is 150 psi (10.3 bar). The adjustable field range temperature is 60 to 120 degrees F (16 to 49 degrees C).
Specs
–
| Temperature Range (F): | 60°F - 120°F |
|---|---|
| Size: | 1" |
| Lead Free: | Yes |
| Connection Type: | C x C |
| Connection Method: | Sweat |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
