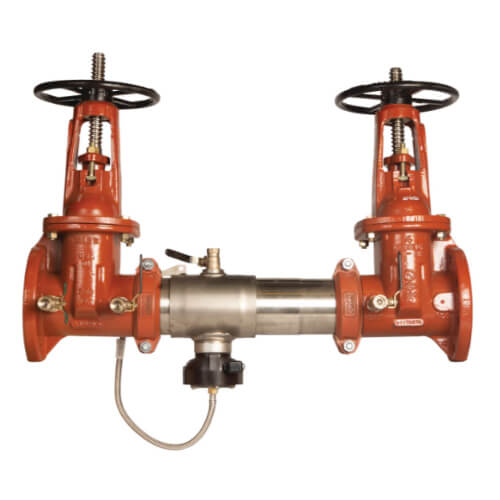

2-1/2" 957-OSY-FS Stainless Steel RPZ Assembly w/ Flood Sensor Connectivity

This 2-1/2" reduced pressure zone assembly backflow preventer help stop the reverse flow of liquids due to backpressure or backsiphonage, where potential health hazard exists. This extremely compact and lighter than a traditional designed assembly is approved for horizontal installation as long as the backflow assembly is installed in accordance with the direction of the flow arrow. This assembly consists of a stainless steel body with a quick access sleeve, torsion spring check valves, resilient seated gate valves with outside stem and yoke, test cocks, and a corrosive resistant stainless steel bottom mounted pressure relief valve. This backflow assembly contains an integrated flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor relays a signal that triggers notification of potential flooding to service personnel. Sensor activation requires purchase of an activation kit which can be connected to existing building and irrigation management systems.

Specifications:

• Body Material: Stainless Steel
• Inlet Connection Size: 2-1/2"
• Inlet Connection Type: Flanged Joint
• Inlet Shutoff Valve Type: Outside Stem And Yoke Gate Valve
• Lead Free: Yes
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-PSI: 175
• Outlet Connection Size: 2-1/2"
• Outlet Connection Type: Flanged Joint
• Outlet Shutoff Valve Type: Outside Stem And Yoke Gate Valve
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Series: 957-FS
