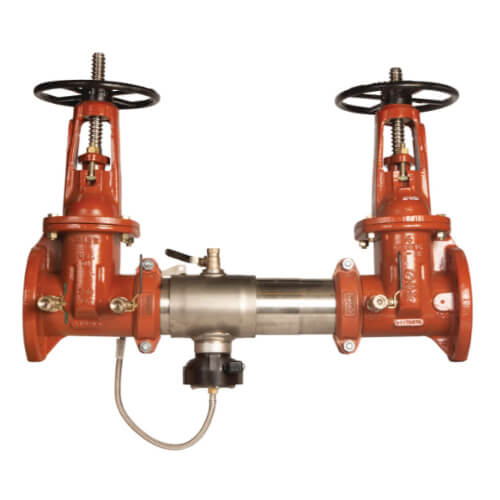

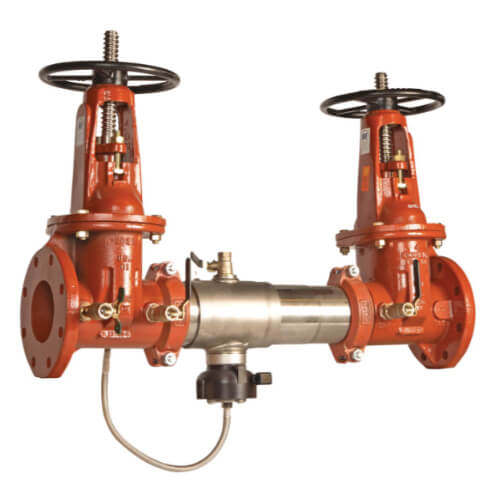

6" 957-OSY-FS Stainless Steel RPZ Assembly w/ Flood Sensor Connectivity

This 6" reduced pressure zone assembly backflow preventer help stop the reverse flow of liquids due to backpressure or backsiphonage, where potential health hazard exists. This extremely compact and lighter than a traditional designed assembly is approved for horizontal installation as long as the backflow assembly is installed in accordance with the direction of the flow arrow. This assembly consists of a stainless steel body with a quick access sleeve, torsion spring check valves, resilient seated gate valves with outside stem and yoke, test cocks, and a corrosive resistant stainless steel bottom mounted pressure relief valve. This backflow assembly contains an integrated flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor relays a signal that triggers notification of potential flooding to service personnel. Sensor activation requires purchase of an activation kit which can be connected to existing building and irrigation management systems.

Specifications:

• Body Material: Stainless Steel
• Inlet Connection Size: 6"
• Inlet Connection Type: Flanged Joint
• Inlet Shutoff Valve Type: Outside Stem And Yoke Gate Valve
• Lead Free: Yes
• Maximum Temperature-Fahrenheit: 140
• Maximum Working Pressure-PSI: 175
• Outlet Connection Size: 6"
• Outlet Connection Type: Flanged Joint
• Outlet Shutoff Valve Type: Outside Stem And Yoke Gate Valve
• Pressure Operation: Continuous
• Protection Type: Backpressure and Backsiphonage
• Series: 957-FS
