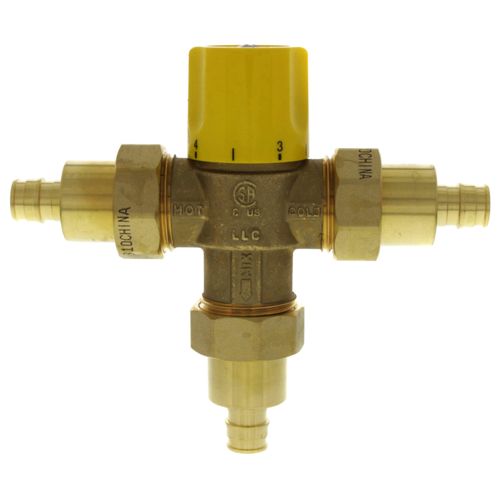

1/2" Expansion PEX Brass Thermostatic Mixing Valve w/ Check Valve, For Low Temp (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
This item replaces: H-73102W-CE
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Expansion PEX x Expansion PEX Connection
1/2"
2.5 Cv
176°F Max Temp
104°F Min Temp
104°F - 176°F
Description
–
The Webstone TMV is designed for use in heating as well as domestic water systems and provides outlet temperatures ranging
between 104°-176° F. The valve may be positioned in any orientation; designated lengths of straight piping before and after the unit
are not required. The Webstone Thermostatic Mixing Valve is a SAFETY VALVE. Inspect the TMV at least once per year to verify it is
operating correctly. It may be necessary to check the valve more frequently in installations with poor or unknown water quality. Use
of a filter or strainer is required for installations with poor or unknown water quality.
Design Advantages
Design Advantages
- For High Temperature Hydronic Applications
- Forged Brass Valve
- G1 Union Connections
- Temperature locking handle ensures appropriate output range
- Guaranteed for life
Specs
–
| Size: | 1/2" |
|---|---|
| Connection Method: | PEX |
| Working Pressure (PSI): | 30-150 |
| Connection Type: | Expansion PEX x Expansion PEX |
| Min Pressure (PSI): | 30 |
| Max Pressure (PSI): | 150 |
| Temperature Range (F): | 104°F - 176°F |
| Min Temp (F): | 104°F |
| Max Temp (F): | 176°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Application: | Point of Source Point of Use |
| Flow Capacity (Cv): | 2.5 |
| Includes: | Check Valve |
| Min Flow (GPM): | 0.5 |
