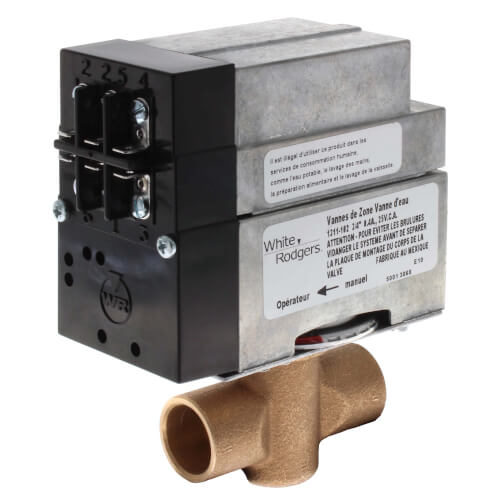

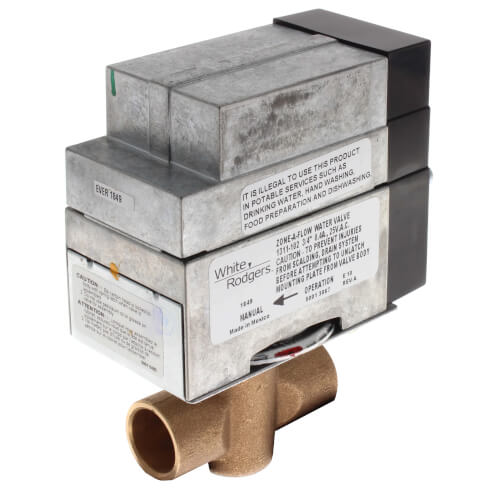

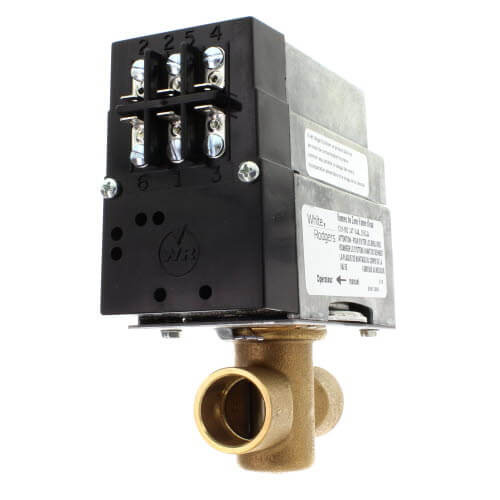

3/4" Sweat Zone Valve (Three Wire)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
Features
- 15 PSI Maximum Differential Across Valve
- 240 Degrees F Maximum Water Temperature
- 24 VAC
- 60Hz
- 50 PSI Maximum System Pressure
Specs
| Application: | Zoning |
|---|---|
| Size: | 3/4" |
| Connection Type: | Sweat |
| Position: | Normally Closed |
| Voltage: | 24V |
| Flow Capacity (Cv): | 23.5 |
| Material: | Stainless Steel |
| Wiring: | 3 Wire |
| Hertz: | 60 50 |
| Max Temp (F): | 240°F |
| Width: | 4-5/8" |
| Body Pattern: | 2-Way |
| Depth (Inches): | 2-5/8" |
| Max Pressure (PSI): | 50 |
| Height: | 5-5/8" |
| Amperage: | 0.4 |
| Time Cycle: | Open 45 Seconds, Close 45 Seconds |
| Max Pressure Differential (PSI): | 15 psi |
| Friction Loss: | 2-1/2 Ft of Tubing |
| End Switch: | Yes |
Questions?
Compare Similar Products
You May Also Need
3 Replacement Parts
Need help finding a replacement part?
Product Reviews
Most Liked Positive Review
Fit the bill for my application very nicely!
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Check the valve before installing when you get it!
This is the second Valve I have bought
Easier to replace than I expected.
Everything Went Great!
GOOD DESIGN-QUALITY PRODUCT...
yes
Good unit
great product, so glad we found this company!
Great service
Would buy again
Great price on an exact replacement part
Product Q&A
14 QuestionsQ: can i manually turn the dial from open to close, if there no power, i need to bleed air from another zone, this value is on another zone, that stays open, no wires to it, and i need to close it, can i manually close off the valve, by turning te dial
Asked by dwayne 11 years ago
Add your answer
You are able to manually turn these valves and I'm fairly certain it matters not that it has power to it.
Yes, Just rotate the protruding disc clockwise until it reads closed.
Yes, you can manually turn the valve.
Q: IS this a solenoid or motor valve unit?
Asked by Rude 11 years ago
Add your answer
motor valve unit
The White Rodgers zone valves are motor driven. They turn continuously in one direction but they stop every 90 degrees. If it is open and you demand that it close it will rotate 90 degrees and stop. If you then demand that it open it will rotate another 90 degrees in the same direction and stop. It usually takes about 15 seconds to move 90 degrees.
Motor valve ..... used on hot water heat applications
Q: The manual operation dial will turn 3/4 of the way to open and then "click" repeatedly. It resembles a stuck second hand on a clock. My boiler will not fire until I manually spin it into the open position. Could this be a problem with power to the valve or a broken part in the dial? Is there a way to check?
Asked by fatkidfrank 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffits hard to tell, i would check for voltage at the actuator, if theres power its probably the actuator motor. remove the actuator & see if it works when not connected to the valve, if it works the valve maybe jammed or stuck.
Q: could it be used with steam?
Asked by John 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffThis valve is a water valve.
I don't think the White Rodgers Hydronic Zone Valves (3-Wire) should be used with steam. The manual calls it a water valve (not a steam valve), and maximum water temperature and pressure rating is 240 F and 50 psi. At 50 psi, saturated steam has a temperature of 298 F (in other words, water boils to steam at 298 F at a pressure of 50 psig). This indicates that the water should not be boiling to steam at the maximum pressure. Also, the manual says the valves don't close completely, there is some bleeding. This will be worse with steam than water. If you know that your system generates steam, I wouldn't recommend using these valves.
Q: Can I mount this valve in the vertical position?
Asked by Jeffrey 13 years ago
Add your answer
Sure- both of my zone valves are mounted vertically- and have been for over 35 years or so- good luck with yours!
Yes, the valve can be installed in the vertical position. All of my valves which are the same, are installed in the vertical position. Richvs C***.****
Per the installation manual, this zone valve can be mounted in any position except upside down. Taken to mean that you don't want the actual mechanism below the water line. Hope this helps. Sent from my iPhone
Yes, you may mount this valve vertically. I have some mounted in that manner for 40 years.
Q: Where can I get just the valve body? My controll is working ok but the unit is leaking.
Asked by stan 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe valve body by itself is part F94-0775. It has been discontinued by the manufacturer and would only be available through dealers that have remaining stock.
Q: I have installed a new ¾” white Rodgers valve because I had one that would not shut down. The new valve will not shut down either. Is it defective or is it a valve upstream in the circuit. I have five zone valves.
Asked by tony 15 years ago
Add your answer
Verified Reply- PexSupply StaffIt appears that you have a wiring issue. We recommend that you check your wiring to make sure all connections are correct and there are no shorts in the wiring.
Q: What's included with the purchase of this item? Is it just the motor assembly or is the valve assembly included?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffIt includes the motor assembly, as well as the brass valve body.
I have purchased and installed two of these. It is the complete valve including the valve body, just like in the picture. The operator assembly is removable from the body by releasing a catch and twisting about an 1/8 turn. This allows the operator and the internal valve stem to be removed. There are also two screws that can be removed to change just the electrical section if you don't want to get into the water side.
Q: where is this product manufactured
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffIt is made in Mexico.
Q: the white rodgers 1F30-910 thermostat has 3 wires that go to a white rodgers1311 zone valve , I would like to know what the function of each wire is.
Asked by rk 15 years ago
Add your answer
Verified Reply- PexSupply StaffWires 1 and 2 are for getting power, while wires 2 and 3 are the end switch.
