$378.59 each
In Stock
Get 8 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
MANUALS (3)
This item replaces: NA12169
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/12 HP
Flanged x Flanged Connection
26 MAX GPM
140 MAX PSI
Cast Iron
Description
–
Features:
Materials:
Overview:

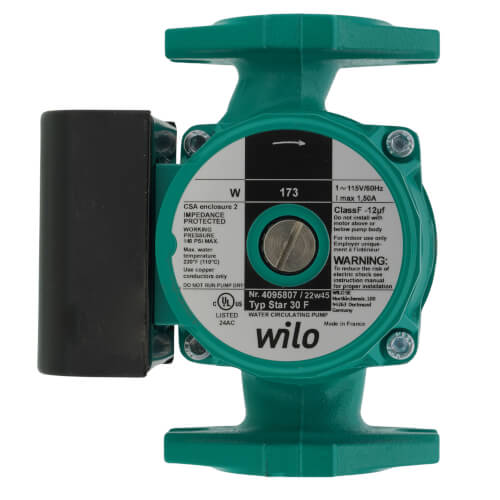

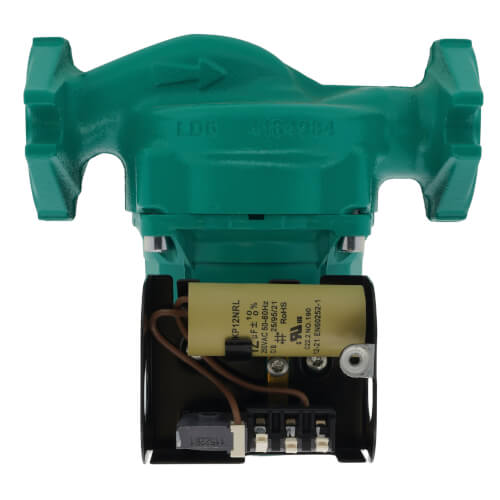

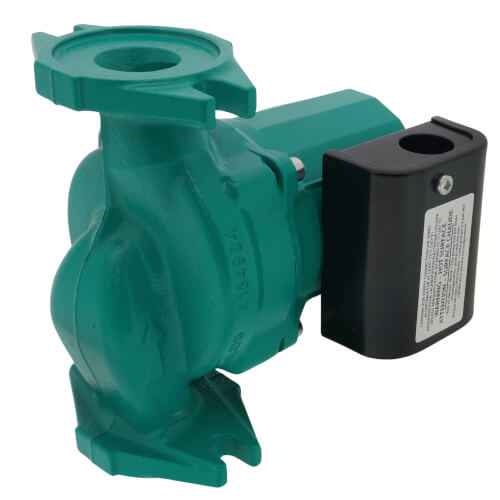

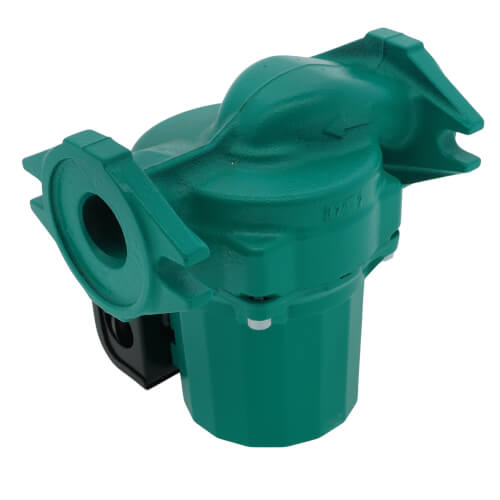

Wet rotor circulation pump, with flanged connection. (Flange perpendicular to shaft). Cast iron body for hot-water heating systems of all kinds, industrial circulation systems, cold-water systems and air-conditioning systems.
- Suitable for any installation position with horizontal shaft; terminal box in 3-6-9-12 o'clock position
- Impedance protected motor, motor protection not required
- Cable entry both sides of terminal box
- Quick connection spring clips for simple electrical connection
- Steel Terminal Box
- Fits all Competitor's Models
- Powerful Starting Torque
- Ultra Quiet
- Reliable Wet Rotor Technology
- Optional Check Flange Set
- Automatically Vented
Materials:
- Pump housing: Grey cast iron (EN-GJL200)
- Impeller: Engineered Composite (PP - 40% GF)
- Shaft: Stainless steel (Cr)
- Bearing: Metal-impregnated carbon
Overview:
Wet rotor circulation pump, with flanged connection. (Flange perpendicular to shaft). Cast iron body for hot-water heating systems of all kinds, industrial circulation systems, cold-water systems and air-conditioning systems.
Specs
–
| Application: | Heating |
|---|---|
| Type: | 1-Speed Pump |
| Material: | Cast Iron |
| Horse Power: | 1/12 |
| Voltage: | 115V |
| Phase: | 1 |
| Amperage: | 1.5 |
| Hertz: | 60 |
| Temperature Range (F): | 14°F - 230°F |
| Max Pressure (PSI): | 140 |
| Max Flow (GPM): | 26 |
| Max Head (Ft): | 30 |
| Connection Type: | Flanged x Flanged |
| Connection Size: | 1-1/2" 1-1/4" 3/4" |
| RPM: | 2700 |
