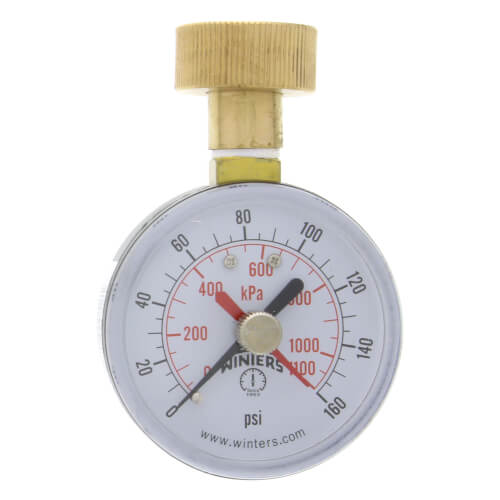

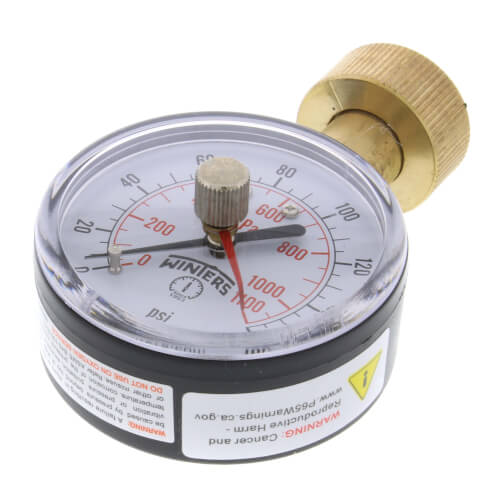

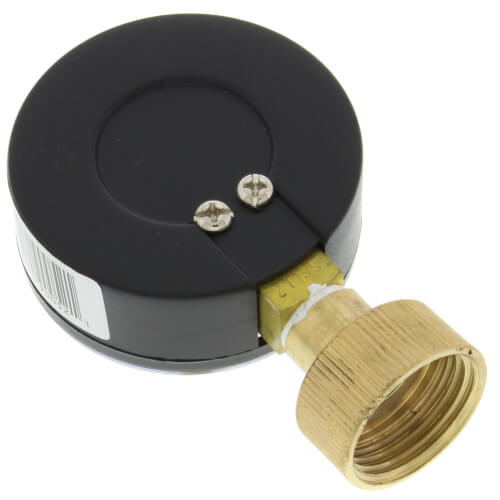

2-1/2" PET Economy Maximum Pointer Water Test Pressure Gauge (0-160 PSI)

SKU:
PETM213
Rating:
(6)
Q&A:
(0)
2-1/2" PET Economy Maximum Pointer Water Test Pressure Gauge (0-160 PSI)
Magnifying glass
Hover image to zoom
$18.05 each
In Stock
In Stock
Get 15 Mon, Aug 10
Order by 6PM, receive Monday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Product Highlight: Connection Type
3/4" Female Swivel Hose Connection
Product Highlight: Max Pressure (PSI)
160 MAX PSI
Product Highlight: Material
Polycarbonate, Steel
Product Highlight: Mount
Top

Description

Description & Features:
  • Economical pressure gauge and valve body assembly used for pressure testing
  • Bleed port and plated housing on the gas test assembly
  • Black steel case
  • Dual scale (PSI/kPa)
  • ±3-2-3% accuracy
  • CRN registered
  • 5 year warranty

Applications:
  • Residential & commercial pressure testing of natural gas, air and water lines

Specifications
  • Dial - white aluminum with black and red markings
  • Case - Steel painted black
  • Lens - Polycarbonate
  • Ring - Steel, painted black
  • Bourdon Tube - Phosphor bronze
  • Movement - Brass
  • Pointer - Aluminum, black
  • Welding #50 tin solder
  • Ambient/Process Temperature - -40°F to 150 °F (-40°C to 65°C)
  • Gas Test - 40°F to 150 °F (-40°C to 65°C)
  • Working Pressure - Maximum 75% of full scale value
  • Accuracy - ±3-2-3% ANSI/ASME Grade B
  • Enclosure Rating - IP52

Note: Do not use this item for any installation or repair of potable water applications.

This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).

This item is for non-potable (non-human consumption) water applications only.

Specs

Product Type:

Pressure Gauge

Dial Size:

2-1/2"

Connection Type:

3/4" Female Swivel Hose

Measures:

Pressure

Application:

Water

Pressure

PSI Range:

0-160

Max Pressure (PSI):

160

Material:

Polycarbonate

Steel

Type:

Dry

Accuracy:

± 3-2-3%

Ambient Operating Temperature:

-40°F to 150°F

Mount:

Top
