Description

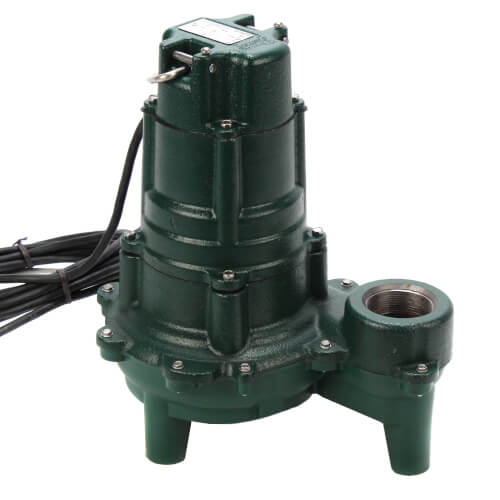

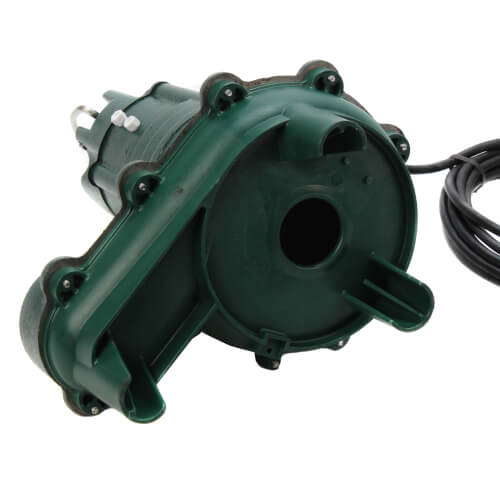

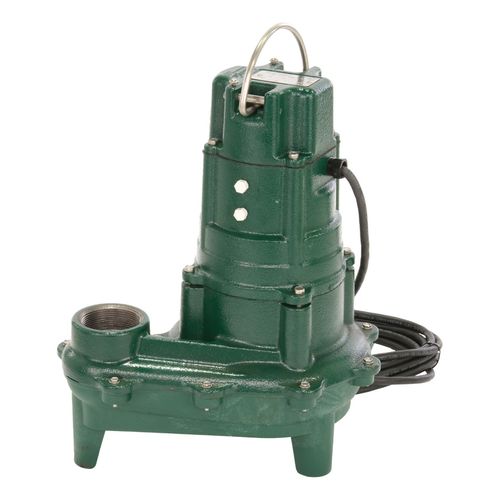

Submersible sewage/*effluent or dewatering pump

Features:
  • Corrosion-resistant powder coated epoxy finish
  • Durable cast iron motor housing, cap, and pump housing
  • Engineered plastic base
  • Engineered plastic non-clogging vortex impeller
  • Stainless steel screws, bolts, and handle
  • Motor - 1 HP, 60 Hz, 3450 RPM, oil-filled, hermetically sealed, automatic reset thermal overload protected
  • Neoprene square ring & gasket
  • Carbon and ceramic shaft seal
  • Upper sleeve bearing and lower ball bearing running in a bath of oil
  • 2" NPT vertical discharge
  • Passes 2" spherical solids
  • Maximum operating temperature 130° F
  • 20 ft. UL Listed 3-wire neoprene cord and plug
  • For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump


Hide Description
Manuals (4)
Specs
Type:

Manual

Application:

Sewage

Sewage Waste Transfer

Effluent

Material:

Cast Iron

Horse Power:

1

Voltage:

115v

Amperage:

15

Phase:

1

RPM:

3450

Cord Length:

20'

Cord Type:

UL Listed 3-Wire Neoprene Cord & Plug

Flow at 5 FT Head:

132 GPM

Flow at 10 FT Head:

101 GPM

Flow at 15 FT Head:

77 GPM

Approvals:

UL/CSA

Weight (lbs):

49 lbs

Discharge:

2" NPT

Solids Size:

2"

Shutoff Head (ft.):

29'

×
