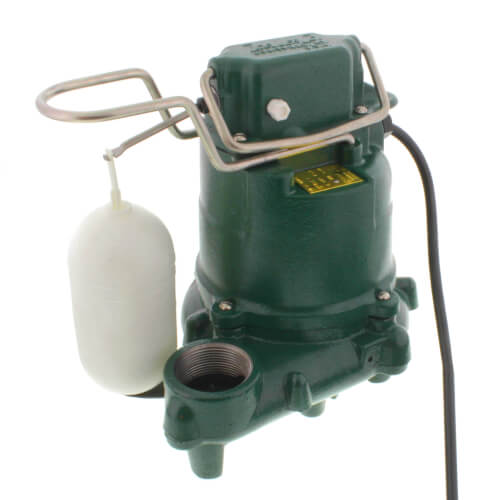

Main product image of Model M57 Mighty-Mate Automatic Cast Iron Effluent Pump - 115 V, 0.3 HP
Magnifying glass
Hover image to zoom

Model M57 Mighty-Mate Automatic Cast Iron Effluent Pump - 115 V, 0.3 HP

Brand:
Zoeller
SKU:
57-0001
Rating:
(44)
Q&A:
(3)
Model M57 Mighty-Mate Automatic Cast Iron Effluent Pump - 115 V, 0.3 HP
Magnifying glass
Hover image to zoom
$255.00 each
In Stock
In Stock
Get 35 Mon, Jun 15
Order by today, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Product Highlight: Cord Length
9'
Product Highlight: Material
Cast Iron
Product Highlight: Horse Power
1/3 HP
Product Highlight: Voltage
115V
Product Highlight: Flow at 5 FT Head
43 GPM
Product Highlight: Amperage
9.7 Amps

Description

Submersible pump for dewatering (sump) or effluent (septic tank systems)

Features:
  • Float operated, submersible (NEMA 6) 2 pole mechanical switch & variable level long cycle systems available
  • Corrosion resistant powder coated epoxy finish
  • No sheet metal parts to rust or corrode
  • Stainless steel screws, switch arm, guard and handle
  • No screens to clog
  • Watertight neoprene square ring between motor and pump housing
  • Solid buoyant polypropylene float
  • Oil-filled, hermetically sealed, automatic reset thermal overload protected motor
  • Upper and lower sleeve bearings running in bath of oil
  • Entire unit pressure tested after assembly
  • Carbon and ceramic shaft seal
  • Maximum temperature for effluent or dewatering 130°F (54°C)
  • Passes 1/2" spherical solids
  • 1-1/2" NPT discharge
  • On point: 7-1/4", Off point: 3"
  • Watertight and dust tight
  • Permanently oiled bearings
  • Impeller Type: Non-clogging vortex impeller
  • Reserve Powered Design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.

Model 57 Specific Features:
  • All cast iron construction
  • Stainless steel guard and handle
  • Lower and upper bearings, oil fed, cast iron
  • Cast iron impeller

Specs

Cord Length:

9'

Shutoff Head (ft.):

19.25'

Application:

Plumbing

Type:

Automatic

Material:

Cast Iron

Horse Power:

1/3

Voltage:

115V

Flow at 5 FT Head:

43 GPM

Amperage:

9.7

Phase:

1

Hertz:

60

RPM:

1550

Cord Type:

UL Listed, 3-Wire Cord & Plug

Height (Inches):

10.0625"

Width (Inches):

10-3/32"

Contact

Help Face
CALL US
Question? Call or text 888-757-4774
+
Help Face

Questions?

Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
MondayThursday
8am7:45pm
Friday
9am7:45pm
SaturdaySunday
9am5:45pm

Response by Mon

You May Also Need

3 Replacement Parts

Cord Seal
SKU: 004322
Zoeller
Help Image
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM

Product Reviews

4.98 out of 44 reviews
100% would recommend this product
4.98
out of 44 Reviews
100% would recommend this product
WRITE A REVIEW
5 star
98%
4 star
2%
3 star
0%
2 star
0%
1 star
0%
WRITE A REVIEW
Showing 1-10 of 44 reviews

Was the exact replacement

We had the same pump before and we ordered the exact replacement for the defective one. Delivery was fast, package was quite torn, but everything looked ok. Have not run the pump yet, but the old one held up pretty well.
Customer
Florida
10 months ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

I'd like to recommand it

My previous two last for 16 years, just order two to replace them, all looks good
Jseph
Westfield, NJ
2 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Fantastic pump

Just replaced an old same model pump. Worked without a problem for 12 yrs. very reliable.
Naa
New york
2 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Built to be repaired, not thrown away

I first found out about Zoeller pumps (and the M57 in particular) when my neighbor called saying their sump pump had stopped working, they had 2" of waster on the floor, and could I do anything. I went over to look, pulled out the pump (a Zoeller M57), and verified that the pump was indeed dead. They ordered a new one. When it came I installed it for them and took the old pump as my "payment" to see if I could figure out what was wrong with it. FIrst guess was a bad switch, and that turned out to be correct. I discovered that SupplyHouse.com sells a comolete array of replacement parts for Zoeller pumps, so I ordred a new one, put it in, and I now had a pump "as good as new." After messing about with the M57 for a couple of weeks, I decided I liked it, a lot. The ready availability of replacememnt parts, and a product that is designed to be repaired, impressed me greatly. In this day of disposable everything and a calculated produst lifetime a week longer than the warranty, the M57 is a much appreciated exception. The pump has a build date stamped on it. This pump was built i April 2012, just over 11 years ago. I'm not sure what the expected lifespan of a sump pump switch is, and of course it depends on how much it gets used, but 11 years seems plausible. One aspect of the design that I think could be better is the power cord water seal. When I replaced the switch I noticed that the power cord was loose and turned and slid easily through the seal. CLearly, it was quite likely not watertight anymore. Tightening the seal didn't help. I saw somewhere, I think, that Zoeller recommends taking the pump to an authorized repair center to replace the seal. That seems excessively inconvenient for what ought to be a simple fix. Investigating further, I unscrewed the seal nut and pulled an inch or two of the cord through. THe problem was apparent. The jaccket on the cord had taken a permanent set where it was clamped, so the seal, even when fully tightened, no longer exe
Maine Geezer
Brunswick, ME
3 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

best pump ever

I use this product for extreme duty in a oily sludge type of water it works great and the original same pump I just replaced lasted 5 times longer than the competition.This pump is in use 24/7
chris the junkman
rhode island
4 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

I would by product again from Supply House .com

Product is proven the only pump I by for industrial work & home. Supply House .com is now the place I will buy from. Other shipping company failed shipping product twice without damage and long shipping delays.
Josh
PA
4 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Best Pump For Basement Sumps

In the days of 'engineered to fail' manufacturing, its great to find products that perform well for many years. I've bought just 3 of these pumps in the last 42 years, with one pump lasting 17 years.
Pump Wizard
mid-Ohio
4 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Great pumps

I've had 2 other Zoeler pumps. They work great, last a long time and are built solid.
John
PA
5 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Great pump. Original lasted 10 years

I just replaced our original with the same pump which lasted 10 years. The pump works like a champ but the switch just wore out since our pump runs year round.
J the Carver
IA
5 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

2nd time buying with SupplyHouse.com---they are great

Great prices, fast delivery and easy process. great customer service too.
Promised Land Properties
Chicago, IL
6 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Product Q&A

3 Questions
3 Questions
ASK A QUESTION

Q: Brand new ? Not refurbished?

Asked by Dale 10 years ago

Add your answer

* Required Field
Verified Author and ReplyVerified Reply- Supplyhouse Staff

Everything we sell is new.

Was this review helpful to you?

Q: what is the minimum diameter this pump requires?

Asked by Anonymous 14 years ago

Add your answer

* Required Field
- Another PexSupply Customer

This pump is intended to be used with 1-1/2" or 1-1/4" PVC. If you use it with smaller diameter tubing, it will still work but with a reduced flow rate.

Was this review helpful to you?
- Another PexSupply Customer

 1 1/2 inch. Anything less restricts the pump output (note that the pump has a 1 1/2 outlet) which requires more work on the part of the pump (increasing power cost and decreasing pump life) so that is what I use.

Was this review helpful to you?
- Another PexSupply Customer

1.5 inches (right on the box). <http://www.pexsupply.com/Zoeller-57-0001-Model-M57-Mighty-Mate-Automatic-Ca st-Iron-Effluent-Pump-115-V-03-HP>

Was this review helpful to you?
- Another PexSupply Customer

1 1/2 inch inside diameter pipe is the recomended minimum for this pump..   Instructions specify that pipe must be same size as outlet which is 1 1/2 inch diameter for this pump.

Was this review helpful to you?
- Another PexSupply Customer

1.5 inch, here are the specs from Zoeller, you can double check here. http://www.zoellerpumps.com/ProductBenefit.aspx?ProductID=89

Was this review helpful to you?
- Another PexSupply Customer

1.5"

Was this review helpful to you?

Q: How do you lubricate the float?

Asked by tiger 15 years ago

Add your answer

* Required Field
Verified Author and ReplyVerified Reply- PexSupply Staff

There is not a lubrication procedure for the floats. If the float is sticking due to mineral build up, the manufacturer suggests you soak the pump in a mixture of vinegar and water.
