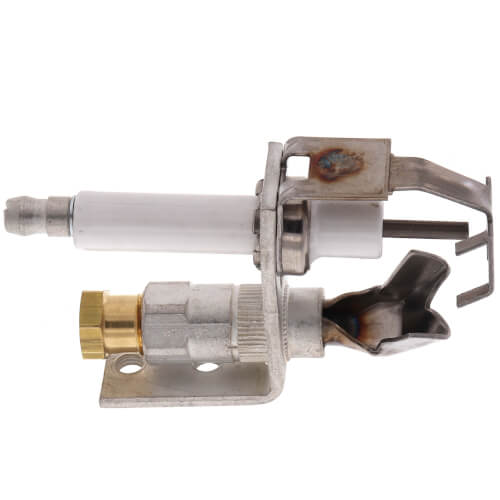

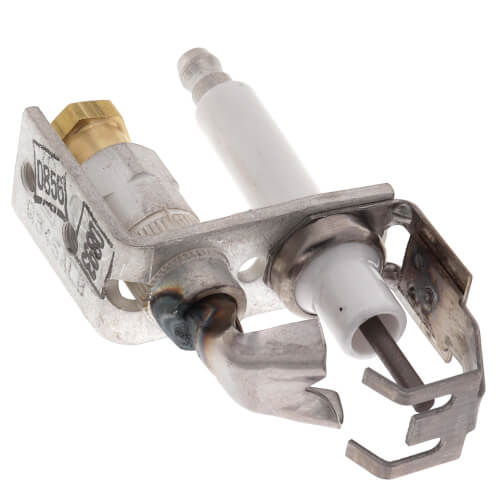

Pilot Burner for Natural Gas with a BCR-18 Orifice, Q345A1313
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$56.23 each
In Stock
Get 9 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Description
–
Nonprimary-aerated combination pilot burner and ignitor. Used with the S86, S860, S8610, or S8670 in intermittent pilot systems.
Features
Specifications
Features
- Includes pilot burner with bracket, ceramic-insulated Kanthal flame rod/spark igniter and ground strap.
- Single tip style.
Specifications
- Type of Gas: Natural
- Mounting Bracket: B
- Compression Fitting Size: 1/4"
- Compression Fitting Length: .78"
- Orifice: BCR-18 (0.018 in.)
- Direction of Front Tip: (L) left
- Tip Style: Single
- Aeration: Non-primary
- Leadwire Temp Ratings: Max. at electrode tip: 968 C

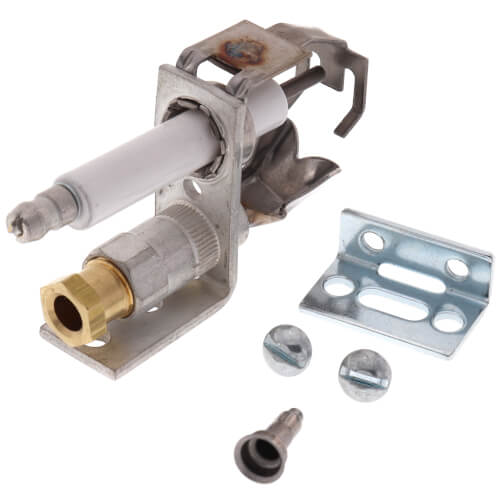

- Includes: Special mounting bracket with screws to convert "B" bracket to "A" bracket
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.67 out of 21 reviews
95% would recommend this product
5 star
76%
4 star
14%
3 star
10%
2 star
0%
1 star
0%
Customer Images
Most Liked Positive Review
Works Reliably
Compatible with Honeywell gas valve 4288061 (among many others).
From my experience installing these burners on my two boilers: Be sure to have replacement tubing on hand, and be careful to keep the ends straight, especially the end that goes into the burner since it requires the longer (0.78") fitting to clear the end of the bracket.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Very questionable performance.
Installed the unit in my furnace and it has me concerned. It takes a long time to light and at least once has not lit during the initial lighting sequence. Pilot valve has been adjusted to provide best possible flow but it is still not lighting as quickly as it should.
Showing 1-10 of 21 reviews
Leaks a bit
It works. But there is some gas/flame leakage at the compression fitting between the pilot igniter and the pilot tube. The ignitor cable boot is getting scorched as a result.
I followed the directions and tightened the nut one full turn after finger-tight, but it's leaking. Must I tighten it further?
Joe K
Ridgefield NJ
2 years ago
Was this review helpful to you?
Great seller
The part works fine ,no problems with this purchase
thandyman
he part works fine,top notch seller
2 years ago
Verified Buyer
Was this review helpful to you?
I would purchase this product again
This iginitor was a perfect fit for my shop furnace. The phone staff was very helpful in helping my find the correct replacement.for a discontinued part
Chip
Erie Pa
3 years ago
Verified Buyer
Was this review helpful to you?
WORKS AS DESCRIBED
WORKS AS DESCRIBED
QUADZILLA
NEW YORK
3 years ago
Verified Buyer
Was this review helpful to you?
Great selection
Fast delivery, great products.
Lou
New Haven CT
5 years ago
Verified Buyer
Was this review helpful to you?
I would buy and recommend this product
Perfect fit and fixed the problem. Fast delivery very convenient
TMS
Peru, IN
5 years ago
Verified Buyer
Was this review helpful to you?
Quick delivery of exact part
Part arrived quickly, worked just as it should. No problems
Tim
Hornell NY
7 years ago
Verified Buyer
Was this review helpful to you?
Yes
I replaced the Pilot Sensor on my Unit after 9yr of used. Old one somehow broke right off the ceramic and off the bracket. it was old and dirty. I Woke up cold and went to bed nice and warm after replacing the Pilot Sensor and Wire. Quick same day pick up and DIY.
M.Rivera
Carteret, NJ
7 years ago
Was this review helpful to you?
Perfect
An exact fit and performs according to needs and specs. Made my LP to Natural gas furnace conversion light off on second try. Thanks for a great product..
None
Wisconsin
7 years ago
Verified Buyer
Was this review helpful to you?
Pilot Burner Replacement
The part was exactly what I needed and I was able to replace it myself...furnace working again. Your service was excellent and I would recommend it to other DIYers.
KenA
Torrance CA
8 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: do you have orriface avail for conversion to lp gas 0.012 ?
Asked by ron 16 years ago
Add your answer
Verified Reply- PexSupply StaffWe carry a pilot burner for LP gas by White Rodgers with a .013 orifice. The SKU # is 262A384WM13. This would be the closest to the .012 orifice that you are interested in.
