Product Highlights
–
FNPT x FNPT Connection
Cast Iron
1"
125 MAX PSI
Description
–
The water that is used initially to fill a hot water heating system contains dissolved air. Make-up water subsequent added will similarly have a high air content. Heating this water releases the air and permits it to be circulated in the system, for which it must be vented. The purpose of the Air Purges is to continuously separate and collect any air from the water as it circulates so that it may be vented automatically by afloat air vent without the necessity for frequent manual venting.
Specs
–
| Product Type: | Air Scoop |
|---|---|
| Size: | 1" |
| Max Pressure (PSI): | 125 |
| Material: | Cast Iron |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.5 out of 2 reviews
100% would recommend this product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-2 of 2 reviews
Air scoop
Easy to install. Goes on top of expansion tank. Need 1/8" threaded air vent to go on top.
MC
Ontario, Canada
3 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}

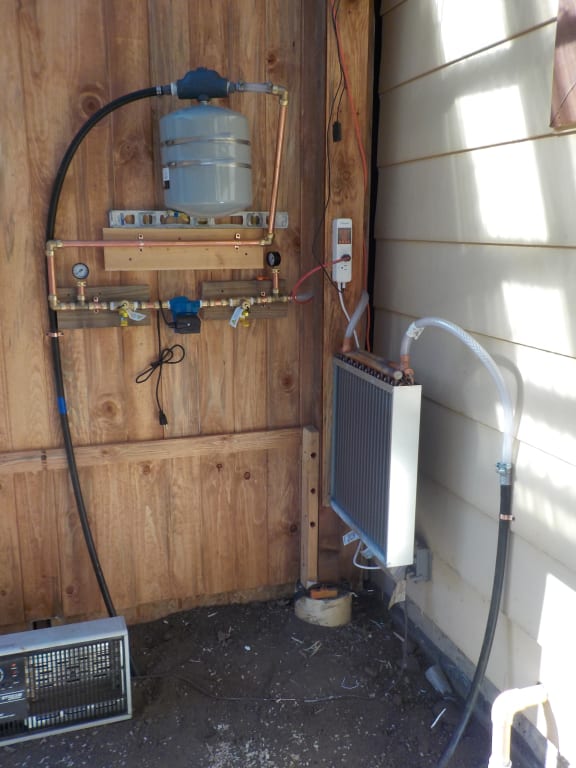

DIY Geothermal closed loop
I created m own Geothermal cooling unit for m greenhouse. It's closed loop pressurized and I needed to purge any air from the system. Having 3/4 inch ports and 1/4 inch air bleed would have been nice. Not sure if that combo is even available but had to adapt both all of those to my 3/4 inch tubing. It's a piece of metal. I will say it leaks... more over it Sweats! I thought it was a leak and tightened the connection close to breaking and a small drop of water forms every day. Even wrapped the connection with Rescue Tape. I have concluded the cold fluid going through the metal housing creates condensation. Just an FYI if you run into the same thing. Don't 'sweat' it!
Handyman
Colorado
5 years ago
Verified Buyer
Was this review helpful to you?
