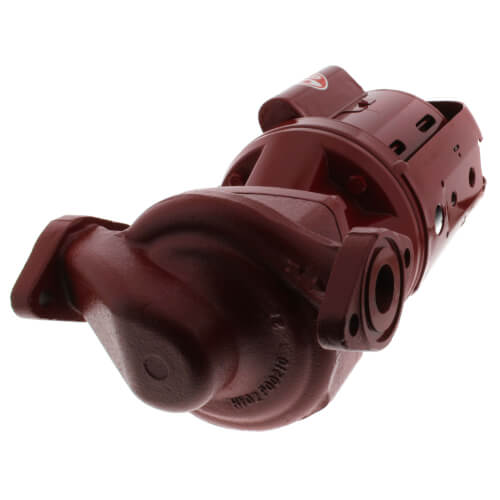

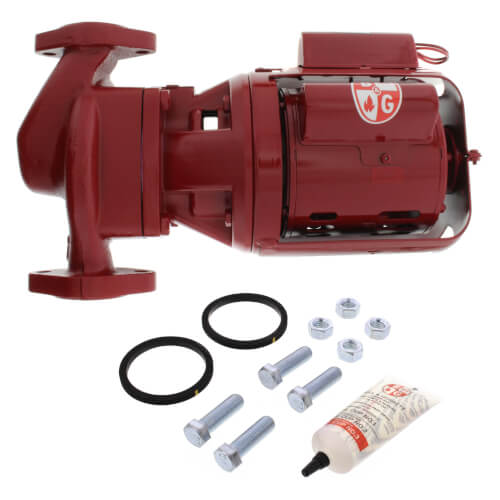

1/6 HP, PR Circulator Pump
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,731.80 each
In Stock
Get 9 Wed, Jun 18
Order by 6PM, receive Wednesday
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/6 HP
Flanged x Flanged Connection
27 MAX GPM
125 MAX PSI
Cast Iron
Description
–
Overview
The Series 100 is a leader in applications such as hydronic heating and domestic hot water circulation, with over 10 million units installed. Series 100's three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Series 100 oil lubricated motor is specifically designed for the Series 100, and its resilient mounting provides quiet, dependable service with minimum annual lubrication. UL and CSA listings are standard. The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to overcome system related noise caused by valves, fittings, or piping.
Operating Data
The Series 100 is a leader in applications such as hydronic heating and domestic hot water circulation, with over 10 million units installed. Series 100's three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Series 100 oil lubricated motor is specifically designed for the Series 100, and its resilient mounting provides quiet, dependable service with minimum annual lubrication. UL and CSA listings are standard. The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to overcome system related noise caused by valves, fittings, or piping.
Operating Data
- Maximum working pressure: 125 psi (8.6 bar)
- Maximum operating temperature
- Standard Seal: 225°F (107°C) continuous
- Special Seals: 250°F (121°C) continuous
- Applications: Reliable Circulators for Residential Heating Systems
Specs
–
| Material: | Cast Iron |
|---|---|
| Amperage: | 1.9 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 1/6 |
| Connection Size: | 3/4" 1" 1-1/4" 1-1/2" |
| Flow Range (GPM): | 0-27 |
| Max Flow (GPM): | 27 |
| Max Head (Ft): | 17.5 |
| Head Range (ft.): | 0-17.5 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 1725 |
| Max Temp (F): | 225°F |
| Connection Type: | Flanged x Flanged |
