$5.78 each
BOX UP & SAVE 13%
$50.10 box of 10
$5.01 each
In Stock
Get 400 Wed, Jul 8
MANUALS (2)
This item replaces: MA-38PAP
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

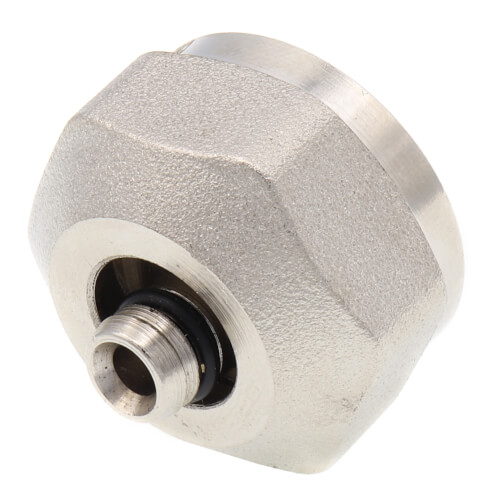

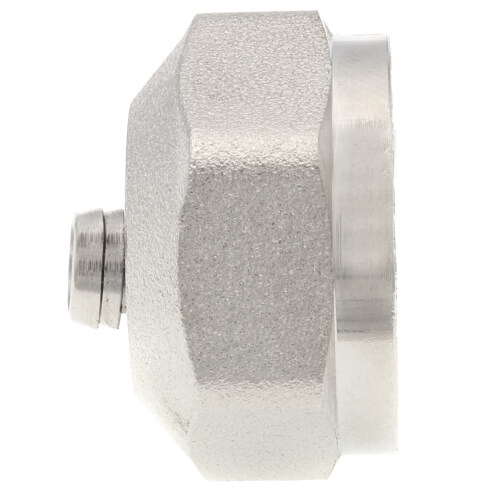

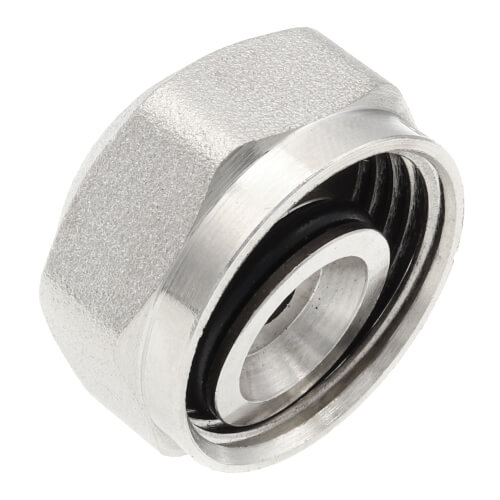

Product Highlights
–
EK20 x 3/8" Connection
Brass
200 MAX PSI
5 Year Warranty
Female Thread Type
NSF, ASTM F1960, ASTM F877 Standards Met
Specs
–
| Connection Size: | EK20 x 3/8" |
|---|---|
| Product Type: | Loop Adapter |
| Material: | Brass |
| PEX Size: | 3/8" |
| Brass Alloy: | C46500 |
| Application: | Heating |
| Max Pressure (PSI): | 200 |
| Warranty: | 5 Year |
| Thread Type: | Female |
| Standards Met: | NSF ASTM F1960 ASTM F877 |
| Tubing Compatibility: | PEX-AL-PEX |
| Max Temp (F): | 200°F |
| Thread Size: | EK20 |
| Fitting System Compatibility: | PEX-AL-PEX Compression |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 8 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-8 of 8 reviews
Pex-AL-Pex fitting assembly
Work great in the process of getting my geothermal system into operation. good quality, good price, and fast shipping.
HaymanPete
Hamlin, Maine
2 years ago
Verified Buyer
Was this review helpful to you?
Good product, better support
Fittings worked great, no leaks as expected. Ordered two boxes but was missing one of the compression rings. Called support and they sent a replacement that day. Top notch customer service.
Joe,
Grand Rapids mi
3 years ago
Verified Buyer
Was this review helpful to you?
Well built, easy to use and works perfect
Had a small issue with quantity but was resolved in a very timely manner. I could not be more pleased with the customer service. Excellent experience.
fix it man
NE Iowa
4 years ago
Verified Buyer
Was this review helpful to you?
Yes
Easy installation
Jed
Mercer pa.
5 years ago
Verified Buyer
Was this review helpful to you?
Making business easiet
You have what I need at a excellent price, Thank you
Tom
Maine
7 years ago
Verified Buyer
Was this review helpful to you?
Had trouble with o-rings and Pex-Al-Pex
These work great, but they can be a bit hard to install without first chamfering the inside of the pex pipe. If you try to shove them in past a sharp 90 degree edge on the inner diameter of the pipe, the o-ring will catch in one or more spots pinching it, pulling it out of it's groove, and causing a leak. It's fine if you chamfer first, but then you have to blow out your pex line in case any shavings fell inside. Not sure if this would be an issue with regular (non-aluminum lined) pex or not? Other than that, they worked great with no leaks. Luckily I had a way to chamfer them using a metal deburring/chamfering tool, but a woodworking countersinking tool would also have worked. If you don't have one of those you might want to order a PEX-al-PEX Chamfering Tool just to be safe (sold here on the site).
Tyler Youngblood
Columbia SC
7 years ago
Was this review helpful to you?
Works Great
I used these to connect my 5/8" Pex-Al-Pex to the Rifeng Manifold. Everything worked flawlessly.
Jesse
Nazareth, PA
10 years ago
Verified Buyer
Was this review helpful to you?
Great quality
This is a well made product. My personal preference for using connectors with manifolds is to use Mr. Pex EK20 fittings with Mr. Pex products and Rifeng EK20s with Rifeng products, and so on.
Pete
Boston
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: Can the compression ring and fitting be used more than once? If not, do you supply only the compression ring?
Asked by hydronick 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffhttps://www.supplyhouse.com/PEX-Compression-Fittings-364000
Was this review helpful to you?
Q: Do these fittings replace the need for PEX-AL-PEX fittings when connecting the pipe to the manifold? Or does it require an additional fitting to connect the PEX-AL-PEX tube to this fitting?
Asked by plumbingfriend 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes that is the correct fitting
Was this review helpful to you?
Q: Will these fittings work on a tru-flow manifold?
Asked by Anonymous 14 years ago
Add your answer
Verified Reply- PexSupply StaffNo, you need to use D4120500 fittings to connect 1/2" PEX-AL-PEX to TruFLOW manifolds.
Was this review helpful to you?
- Another PexSupply Customer
These are adaptors that will work to secure any 1/2" pex-al-pex tubing to any manifold output threaded with 1/2" EK-20 threads. Reifing uses R-20, and so does wirsbo tru-flo. What I can't find a reference to is whether EK-20 & R-20 are the same. Will someone at Pexsupply be willing to try to fit one of these EK-20 nuts onto the output threads of a wirsbo manifold to answer this question? Alternatively, you can call Wirsbo directly and ask their tech support if the threads match. Also, make sure wirsbo manifolds will accept anything other than wirsbo tubing. At one time it seems to me they made a proprietary tubing Randy Danziger
Was this review helpful to you?
- Another PexSupply Customer
EK20 is a European standard connector. Not sure of the connector specs on a Tru-Flow.
Was this review helpful to you?
