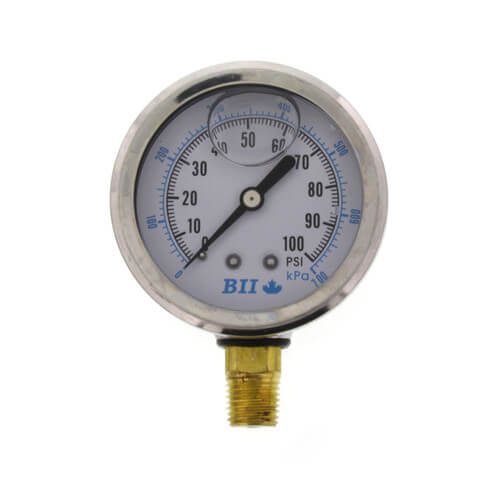

2-1/2" Liquid Filled Pressure Gauge w/ Lower Mount (0-100 psi)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$13.96 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/4" NPT Connection
Male Thread Type
100 MAX PSI
0 PSI
Bottom
Description
–
Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in difficult environments.
Features:
Features:
- Liquid filled
- Not for use with oxygen
- Lead free solder, bourdon tube and socket
- Application: Where vibration or pressure pulsation occur
- Accuracy: 1.5% full scale value
- Operating Temperatures: Ambient: -4F - 140F (-20C - 60C) / Media: Max. 140F (60C)
- Stainless steel case
- Polycarbonate lens
- Bourdon tube design
- 1/4" MPT brass lower mount connection
- Specially designed for potable H2O systems, these gauges are ideal for the measurement of system pressure
Specs
–
| Dial Size: | 2-1/2" |
|---|---|
| Connection Type: | 1/4" NPT |
| Thread Type: | Male |
| Max Pressure (PSI): | 100 |
| Min Pressure (PSI): | 0 |
| Increments (psi): | 1 |
| Measures: | Pressure |
| Mount: | Bottom |
| Type: | Liquid Filled |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Dial Size
Connection Type
Max Pressure (PSI)
Measures
Mount
CURRENT ITEM
2-1/2"
1/4" NPT
100
Pressure
Bottom
You May Also Need
Product Reviews
5 out of 8 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-8 of 8 reviews
Good quality
Works well, and good quality. Replaced old well pressure gauge with liquid filled since i run alot of water continuously figured liquid filled would hold up better with frequent cycling. Face was 2.5inch compared to old one with 2inch so needed to rotate pressure switch becase was too close, something to think about so you have clearance to rotate and tighten properly. Make sure to trim rubber top piece for accurate readings
Eri
Perkasie
1 months ago
Was this review helpful to you?
i would buy it again
Well made and works good
Northernhauler
maine
4 years ago
Verified Buyer
Was this review helpful to you?
Beautiful and quality gauges
Very nice quality and a good value versus the higher price and lower quality gauges at the big box store. I appreciate the selection at SupplyHouse.
CWahl
Hershey, pa
5 years ago
Was this review helpful to you?
Quick delivery
Great product, quick delivery.
Geardawg
Spring Branch, tx
6 years ago
Verified Buyer
Was this review helpful to you?
Love it
I use this gauge with a hose bib fitting as my go to when I need to check customers water pressure on the house or boiler. Works great as long as I remember to take it back off when I am done and not leave it on the job!
GuitarDad
Milford CT
6 years ago
Was this review helpful to you?
I use these gages on my domestic water well setup
A quality product with an easy to read dial face. I installed these gages at the well head and on my pressurized storage tank. They are easy to read and simple to install.
Installed by attaching with a pipe union, the gage is easily rotated for optimum viewing with out the risk of over tightening the threads.
Rusty
Tucson, AZ
6 years ago
Verified Buyer
Was this review helpful to you?
Works
Works fine, I have to assume it's as accurate as it's supposed to be
djc
Upstate NY
7 years ago
Verified Buyer
Was this review helpful to you?
Great guage
Application: used as a gauge on water well. Very accurate on the cut-in and cut-out pressures. Very good price.
Mr. P
Surrpise, Az
8 years ago
Verified Buyer
Was this review helpful to you?
