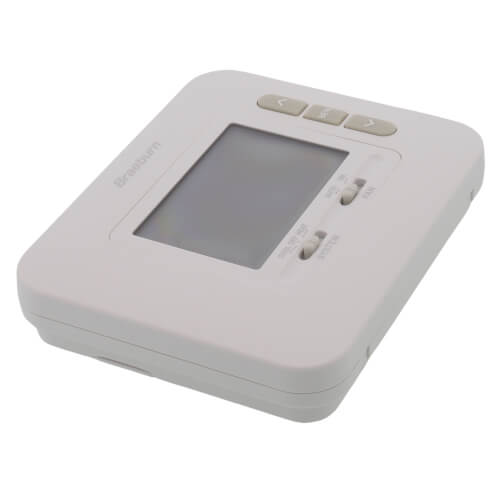

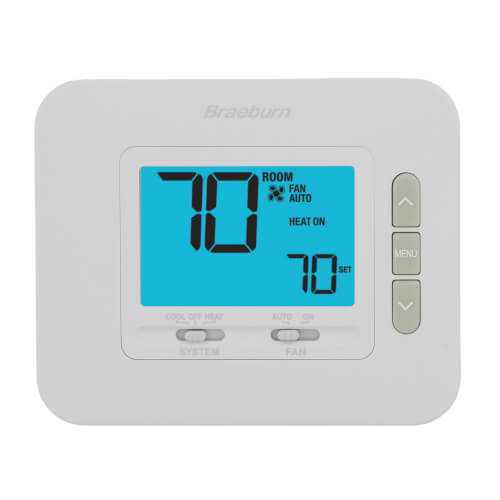

Non-Programmable 1H/1C Thermostat w/ 4.4" Display
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$31.26 each
In Stock
Get 2 Mon, Mar 31
More Available
MANUALS (3)
This item replaces: 3000, 1020, 3020, PS2110
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Non-Programmable
24V
1 Heat/1 Cool
Horizontal
Hardwired, Battery
5 Year Warranty
Description
–
Note: Additional Information regarding Product and Installation can be found in Manuals section
Product Overview

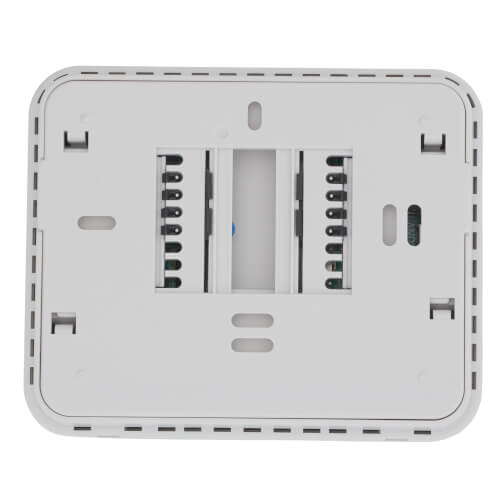

The non-programmable thermostat shall be a Braeburn model number 1030, 4.25” high x 5.12” wide x 1” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer settings and setpoints. The thermostat shall be compatible with low voltage single stage gas, oil, or electric heating or cooling systems, and single stage heat pumps. Also compatible with 250mv – 750mv millivolt heating only systems and 2 wire hydronic zone systems. The thermostat shall have a bright blue backlight display and separate sub-base. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C) and operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, permanent non-volatile memory to retain user settings, filter check monitor and installer lock mode.
Features:
Product Overview
The non-programmable thermostat shall be a Braeburn model number 1030, 4.25” high x 5.12” wide x 1” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer settings and setpoints. The thermostat shall be compatible with low voltage single stage gas, oil, or electric heating or cooling systems, and single stage heat pumps. Also compatible with 250mv – 750mv millivolt heating only systems and 2 wire hydronic zone systems. The thermostat shall have a bright blue backlight display and separate sub-base. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C) and operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, permanent non-volatile memory to retain user settings, filter check monitor and installer lock mode.
Features:
- Non-Programmable
- Large 4.4 Sq. In. Display
- Bright Blue Backlight
- SmartLimit Temperature Limits
- Hardwire or Battery Powered
- Installer Lock Mode
- Filter Check Monitor
- Optional Celsius Display
- Separate O and B Terminals
- Adjustable Temperature Differential
- Compatible with 2-Wire Hydronic Zone Systems
Specs
–
| Product Type: | Thermostat |
|---|---|
| Application: | Single-Stage (Heat/Cool) |
| Stages: | 1 Heat/1 Cool |
| Programmability: | Non-Programmable |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Changeover: | Manual |
| Options: | Large Display |
| Power Method: | Hardwired Battery |
| Terminations: | Rc, Rh, O, B, Y1, W1, G, C |
| Voltage: | 24V |
| Warranty: | 5 Year |
