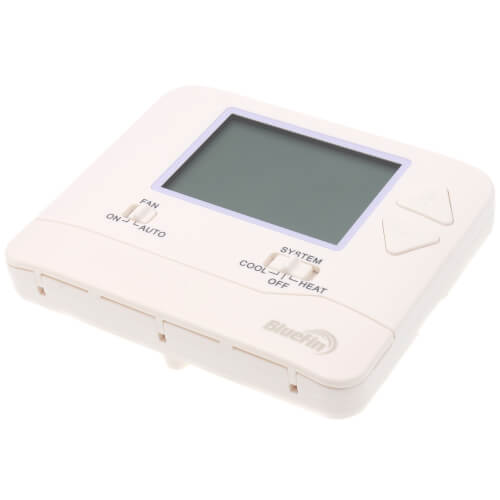

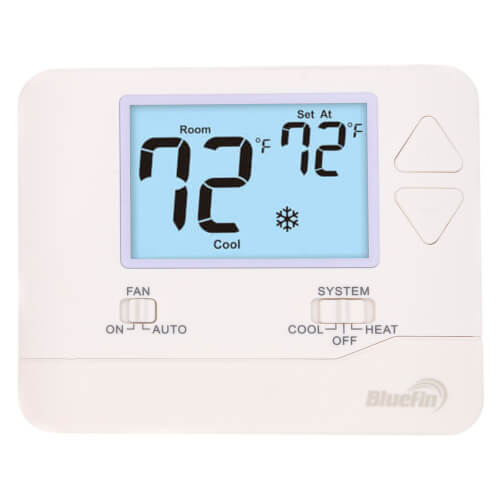

Master Series Non-Programmable, 1H/1C Thermostat
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
THBF701 is temporarily unavailable
Unavailable Date April 5, 2023
This product is on backorder until further notice.
MANUALS (2)
Direct Replacement:
FocusPro Non-Programmable, 1H/1C, Large Display Thermostat
In Stock
Get 712 Wed, Jun 14
Product Highlights
–
Non-Programmable
Low voltage, 24v
1 Heat/1 Cool
Horizontal
Hardwired, Battery
32°F to 99°F
Description
–
Master Series Non-Programmable, 1H/1C Thermostat
Features
Features
- Non-programmable
- Single-stage (heat/cool)
- 1 heat/1 cool
- Gas, oil or electric
- Separate B & O terminals
- Separate heating and cooling differential adjustment
- Room temperature calibration adjustment
- 5 minute compressor delay protection (selectable on or off)
- White/green/blue backlight
- Battery or 24V power
- 4 sq. in. display
- 5 year warranty
Specs
–
| Application: | Heat Pump Single-Stage (Heat/Cool) |
|---|---|
| Stages: | 1 Heat/1 Cool |
| Programmability: | Non-Programmable |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Power Method: | Hardwired Battery |
| Features: | Backlight |
| Temperature Control Range: | 44°F to 90°F |
| Temperature Range (F): | 32°F to 99°F |
| Max Temp Differential: | 1°F |
| Voltage: | Low voltage 24v |

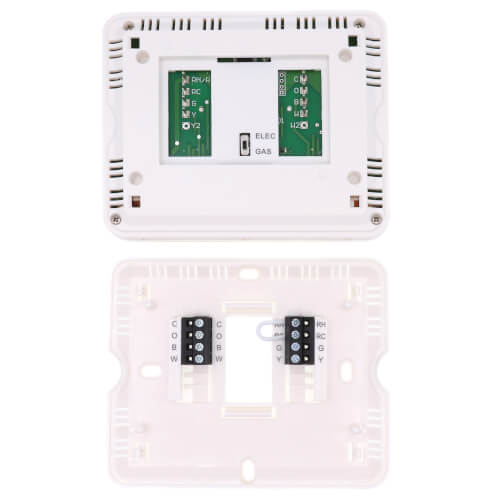

| Wiring: | RH, RC, C, W, Y, G, B, O |
| Color: | White |
