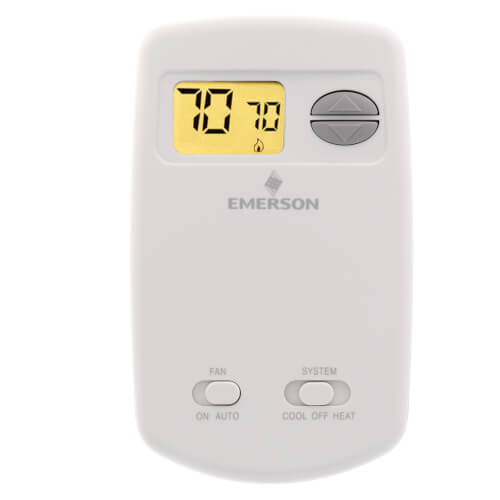

Non-Programmable Thermostat, 24 Volt or Millivolt system, Vertical
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Product Highlights
Description
Specs
| Amperage: | 1.5 |
|---|---|
| Application: | Single-Stage (Heat/Cool) |
| Stages: | 1 Heat/1 Cool |
| Programmability: | Non-Programmable |
| User Interface: | Push Button |
| Mount: | Vertical |
| Options: | Fan Control |
| Power Method: | Battery |
| Changeover: | Manual |
| Temperature Range (F): | 45°F - 90°F |
| Voltage: | Low voltage 24V |
| Wattage: | 1.5 to 45 |
| Wiring: | Rh O G B Y W Rc |
| Color: | White |
| Height: | 5-3/10" |
| Width: | 3-1/4" |
| Depth (Inches): | 1-1/10" |
Questions?
Compare Similar Products
You May Also Need
Product Reviews
Easy to install. Simple for customers
Great product
Great product, easy to install!
Great service and delivery.
Simple and works great. Everything is included
Good product good service!
This product was exactly what I needed.
I would recomend this product
Yes
As advertised
Product Q&A
10 QuestionsQ: how do you change the battery does the cover just pull off
Asked by dick 11 years ago
Add your answer

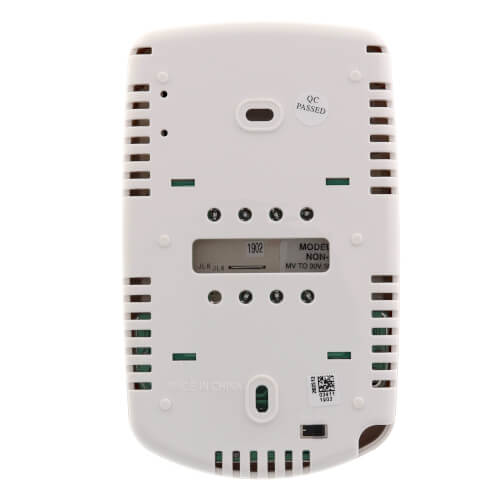

Verified Reply- SupplyHouse StaffThis thermostat requires 2 "AAA" alkaline batteries to operate.The batteries are located on the back of the thermostat body.
Q: What does it mean when the * (asterisk) shows above the temp that you have set it for? What does it mean when the * flashes? What does it mean when the * is not showing? THANKS VERY MUCH
Asked by Sam 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe Thermostat has a time delay between cooling cycles to allow the head pressure of the compressor to stabilize. If the temperature is adjusted to call for cool within 5 minutes of the last cycle the * icon blinks indicating the thermostat is locked out and the compressor is stabilizing. After 5 minutes, the * icon will stop flashing.
Q: My grandson grabbed my thermostat cover and dropped it and when I put it back on the heat will not shut off, it just runs continuously. What can I do to fix it? Thanks
Asked by deb 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffCheck the wire connections to verify they are not shorted or touching together. No bare wire should stick out from under terminal screws. Try resetting the thermostat. If the condition persists the manufacturer of your system or service person can instruct you on how to test the Heat/Cool system for correct operation. If the system operates correctly, replace the thermostat.
Q: How to change temp from f to celsius
Asked by Cid 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffOpen the thermostat and cut the clip marked W904.
Q: I already have this thermostat in my home. Is it possible (easy) to modify or switch it to a programable unit.
Asked by John 13 years ago
Add your answer
Yes, it is possible to change this to a programmable thermostat. It is a simple swap out. Just make sure you keep track of the wires.
Q: We replaced the batteries and now the display light does not go on , any ideas ? ty
Asked by Joe 14 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the troubleshooting guide in the manual: If a voltage spike or static discharge blanks out the display or causes erratic thermostat operation you can reset the thermostat by pressing the up and down buttons at the same time while moving the SYSTEM switch from OFF to HEAT. This also resets the factory defaults.
Q: how do you replace display light?
Asked by TP 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe display light for this thermostat is not a replaceable part.
Q: Do you have a timer - auto ON / off?
Asked by Col 14 years ago
Add your answer
This product works great but; HAS NO TIMER. It is no frills. Kevin R Crain, D.C.
Q: Should you here a click Before and right before the a/c comes on and off?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, there should be a low but audible click.
Q: Could you explain why after you replace the battery that unit will show the last temp plus a flame
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe flame appears when the system switch is set to heat. It should have nothing to do with the battery. Refer to the manual ( http://s3.pexsupply.com/manuals/1249544570102/White_Rodgers_1E78-144_Instructions.pdf ) for more information.
