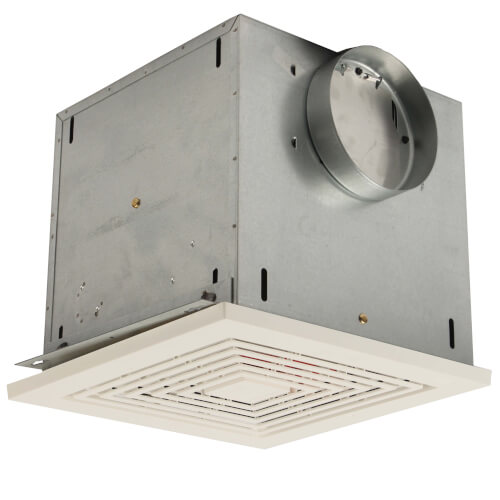

L150 Ceiling & Wall Mount Ventilation Fan, 6" Round Duct (157 CFM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
L150 has been discontinued
Discontinued January 1, 2025
This product was discontinued by the manufacturer.
MANUALS (2)
This item replaces:Â AK150LS
'/%3E%3C/svg%3E){kind=small}
Suggested Alternative:
L150E Ceiling & Wall Mount Ventilation Fan, 8" Round Duct (200 CFM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
157 CFM
6"
1.5 Sones
12-1/4" x 12-1/4" x 11-3/4"
14" x 14"
1 Year Warranty
Description
–
**Note: Specifications on left hand side are based on fans ducted horizontally. Please see Product Overview document for vertical ducting data.
Features:
Features:
- 157 CFM, 1.5 Sones (AMCA), horizontal ducting
- Can be ducted horizontally or vertically (160 CFM, 1.6 Sones with vertical ducting). In-line ducting available with separate adapter
- 6" round duct connector
- Low profile, white polymer grille
- Single, impact-resistant centrifugal blower wheel
- 20 gauge galvanized steel housing
- UL Listed for use over bathtubs and showers when connected to a GFCI branch circuit
- Use Broan Electronic Variable Speed Control to adjust blower speed and sound level (available separately)
- Housing Dimension: 12-1/4" x 12-1/4" x 11-3/4"
- Grille Dimension: 14" x 14"
Specs
–
| Product Type: | Ventilation Fan |
|---|---|
| Duct Size: | 6" |
| Voltage: | 120v |
| Air Flow Capacity (CFM): | 157 |
| Hertz: | 60 |
| Sone: | 1.5 |
| Housing Dimension: | 12-1/4" x 12-1/4" x 11-3/4" |
| Amperage: | 1.3 |
| Grille Dimension: | 14" x 14" |
| Ducting: | Horizontal Vertical |
| Wattage: | 100 |
| Grille Finish: | White |
| Nominal RPM: | 710 |
| Warranty: | 1 Year |
| Grille Material: | Polymeric |
