$182.78 each
In Stock
Get 20 Tue, Jul 7
Order by today, receive Tuesday
Size:
1/2"
Connection Type:
Press x Press
Features:
Gauge
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Press x Press Connection
1/2"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–

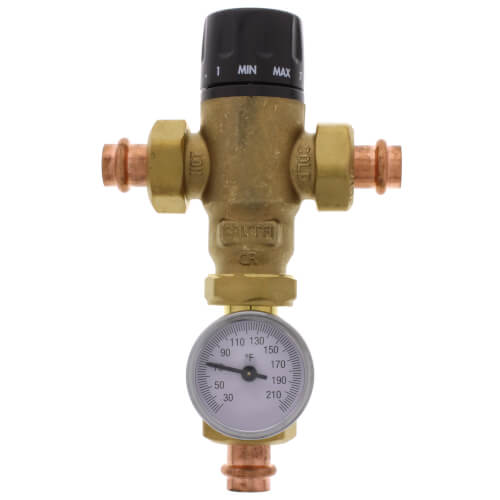

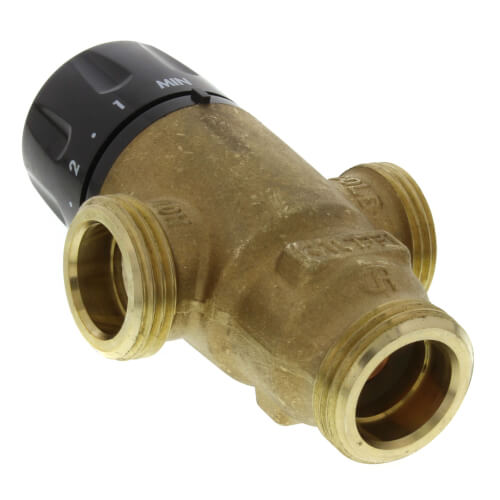

Caleffi MixingCal 3-Way Thermostatic Mixing Valve, Low-Lead Brass 1/2" Press Connections, 3 Cv with Gauge
The Caleffi MixingCal 3-Way Thermostatic Mixing Valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied to the user at a constant set valve, compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The Caleffi MixingCal 3-Way Thermostatic Mixing Valve has an CV of 3.
Features:
Connection Type: Press
Connection Size: 0.5 Inches
The Caleffi MixingCal 3-Way Thermostatic Mixing Valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied to the user at a constant set valve, compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The Caleffi MixingCal 3-Way Thermostatic Mixing Valve has an CV of 3.
Features:
- Maintain Temperature
- Compensates for both temperature and pressure fluctuations
Connection Type: Press
Connection Size: 0.5 Inches
Specs
–
| Features: | Gauge |
|---|---|
| Size: | 1/2" |
| Connection Type: | Press x Press |
| Connection Method: | Press |
| Max Pressure (PSI): | 200 |
| Temperature Range (F): | 85°F - 150°F |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Application: | Point of Source |
| Standards Met: | ASSE 1017 |
| Flow Capacity (Cv): | 3 |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
3.5 out of 2 reviews
50% would recommend this product
5 star
50%
4 star
0%
3 star
0%
2 star
50%
1 star
0%
Showing 1-2 of 2 reviews
Love This Product
I Have Been Using This Product For A While. I Use It Pretty Much Everywhere. I've Learned To Use A Little Bit Of Dope On All Of The Gaskets/O-Rings/Flat Washers And I Never Have A Leak. Definitely Worth The Purchase. Definitely My Favorite Always A Bummer When You Can't Get Them At The Local Supplyhouse , But You Can Always Come Here Lol
Jake K
Rhode Island
3 years ago
Was this review helpful to you?
Dripping
East installation. Accurate adjustments.
But all the union connections drip water.
I find this ad a common issue using caleffi parts that have union brass connections. Especially on water feed valves also.
JB
Miller place NY
4 years ago
Verified Buyer
Was this review helpful to you?
