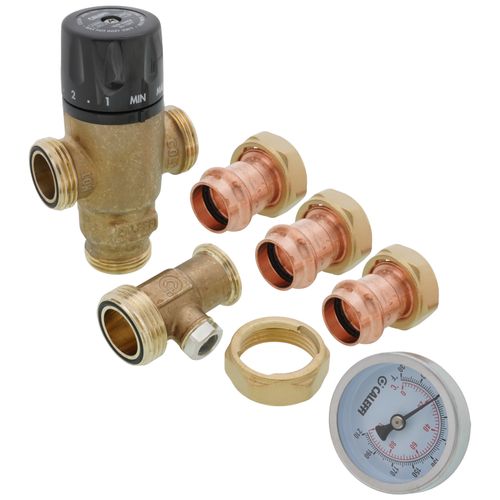

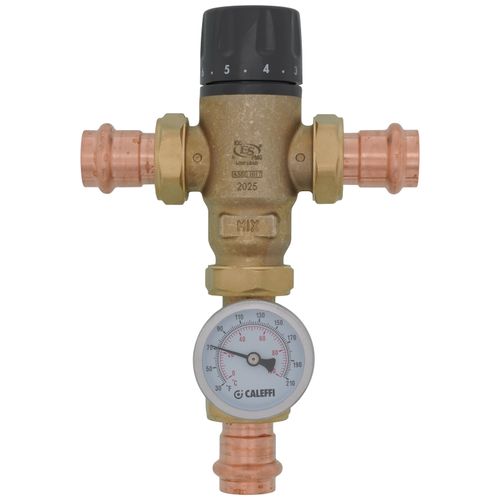

3/4" Press MIXCAL 3-Way Thermostatic Mixing Valve w/ Temperature Gauge
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$184.61 each
In Stock
Order by 6PM, receive Tomorrow
Size:
3/4"
Connection Type:
Press x Press
Features:
Gauge
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Press x Press Connection
3/4"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–
The Caleffi MixCal 521 series three-way thermostatic mixing valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water.
The valve has been specifically certified to ASSE 1017 and Low Lead Plumbing Law by IAPMO R&T.
Features:
- Low-lead brass body.
- Internal anti-scale materials.
- Locking set point knob.
- Meets requirements of ANSI/NSF 372-2011.
- Max. working pressure: 200 psi.
- Max. inlet temperature: 200ºF.
- Adjustable range: 85-150ºF.
- Min. flow for optimum performance: 1.3 gpm.
- Gauge scale: 30-210ºF.
- Gauge accuracy: +- 6ºF.
- Gauge dial: 2" diameter.
- Certified to: cUPC listed to ASSE 1017/ CSA B125.3, Low lead.
Specs
–
| Features: | Gauge |
|---|---|
| Size: | 3/4" |
| Connection Method: | Press |
| Connection Type: | Press x Press |
| Max Pressure (PSI): | 200 |
| Temperature Range (F): | 85°F - 150°F |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
| Flow Capacity (Cv): | 3 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.71 out of 7 reviews
100% would recommend this product
5 star
71%
4 star
29%
3 star
0%
2 star
0%
1 star
0%
Showing 1-7 of 7 reviews
Buy these constantly
Price and quality are great
Randy
Vt
10 months ago
Verified Buyer
Was this review helpful to you?
very good product
I think it is a great product, my only complaint is that the set point marker is on the rear of the valve if as most installs will be the cold is on the right, hot on the left, and you want the mixed water outlet in the up position. When that is the case the set point of the dial marker is on the rear of the valve making it hard to adjust especially if it is connected to a tall/large water heater.
Alex
Baltimore, Maryland
3 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
works as it should. easy installation
Paul
OH
4 years ago
Verified Buyer
Was this review helpful to you?
right part for great price
Easy install and set up discharge temp perfectly.
Will buy again when needed.
Robert
NJ
4 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
great price for the product
Loved the press fittings which made for an easy install. I would highly recommend putting pipe sealant on ALL joints due to the fact that i had to keep tightening up due to leakage. It would be better if they came with o-ring seals rather than the fiber gaskets.
Steve, Northeast
Massachusetts
6 years ago
Verified Buyer
Was this review helpful to you?
Best Tempering Valve Out There
I've used this product many times with great success. Caleffi makes superior plumbing and hydronic products. SupplyHouse offers the best pricing. Confused by another comment on here saying "It would be helpful if the setpoint indicator were on the front". Seeing as this mixing device can be mounted in basically any position, one of it's strengths, there is no "front". Simply install the unit so that the temperature dial is readily readable.
Matt
Newton, MA
8 years ago
Was this review helpful to you?
excellent product, easy to install
It would be helpful if the setpoint indicator were on the front
ds
CT
8 years ago
Verified Buyer
Was this review helpful to you?
