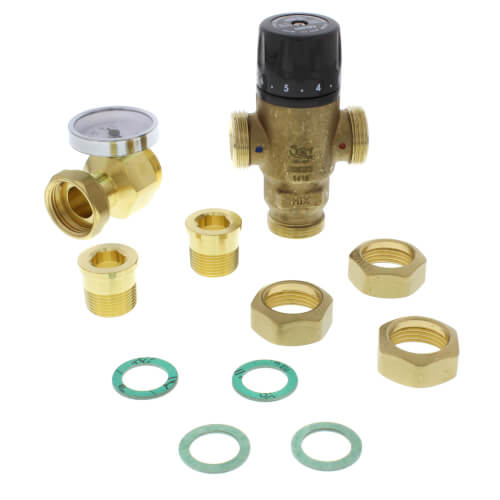

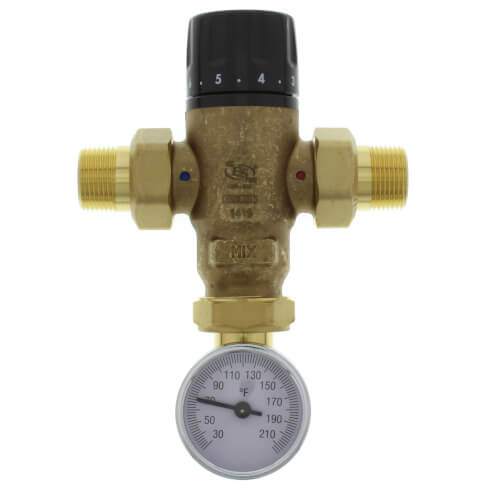

3/4" Male NPT MIXCAL 3-Way Adjustable Thermostatic Mixing Valve w/ Temp Gauge
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$210.91 each
In Stock
Get 10 Tue, Jul 7
Order by today, receive Tuesday
Size:
3/4"
Connection Type:
MNPT x MNPT
Features:
Gauge
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
MNPT x MNPT Connection
3/4"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–
The Caleffi MixCal™ 521 series three-way thermostatic mixing valve
is used in systems producing domestic hot water or in hydronic and
radiant heating systems. It maintains the desired output temperature
of the mixed water supplied at a constant set value compensating for
both temperature and pressure fluctuations of the incoming hot and
cold water.
The valve has been specifically certified to ASSE 1017 and Low Lead Plumbing Law by IAPMO R&T.
Features:
The valve has been specifically certified to ASSE 1017 and Low Lead Plumbing Law by IAPMO R&T.
Features:
- Low-lead brass body and fittings.
- Internal anti-scale materials.
- Locking set point knob.
- Meets requirements of ANSI/NSF 372-2011.
- Max. working pressure: 200 psi.
- Max. inlet temperature: 200ºF.
- Adjustable range: 85 - 150ºF.
- Min. flow for optimum performance: 1.3 gpm.
- Certified to: cUPC listed to ASSE 1017/
- CSA B125.3, Low lead.
Specs
–
| Features: | Gauge |
|---|---|
| Size: | 3/4" |
| Connection Method: | Threaded |
| Connection Type: | MNPT x MNPT |
| Max Pressure (PSI): | 200 |
| Temperature Range (F): | 85°F - 150°F |
| Type: | Adjustable |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
| Lead Free: | Yes |
| Flow Capacity (Cv): | 3 |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Connection Method
Connection Type
Standards Met
Application
CURRENT ITEM
3/4"
Threaded
MNPT x MNPT
ASSE 1017
Point of Source
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Works as expected, good sturdy product!
Using this to regulate temperature for a radiant floor system. This is placed to pull water through a heat exchanger on the hot side and bypass the HX on the cold side. Regulates the temperature to the set temp flawlessly.
Ben
Happy, TX
5 years ago
Verified Buyer
Was this review helpful to you?
properly regulating house water temp
Our plumber installed this as a replacement for a simple mixing valve, which was not properly regulating our hot water temperature (perhaps due to seasonal fluctuations in the temperature of the cold water into the valve). The new thermostatic valve mixes the water from our indirect hot water tank with the cold water from the main house feed to set the house water temp. So far, it is doing this correctly.
Joe
Brooklyn, NY
8 years ago
Verified Buyer
