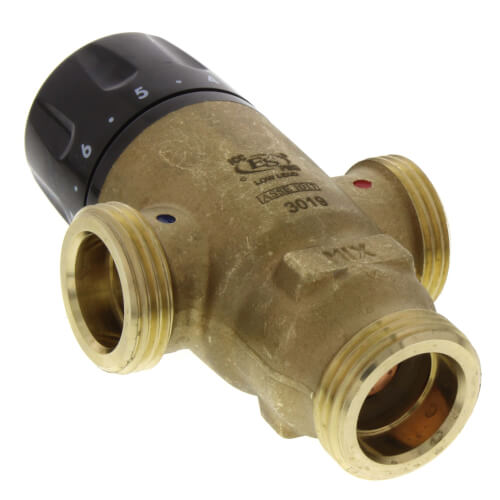

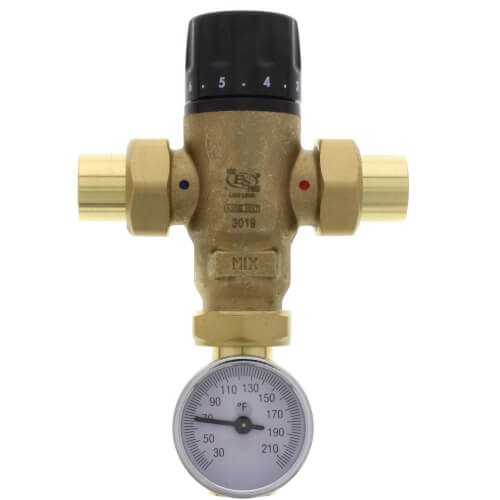

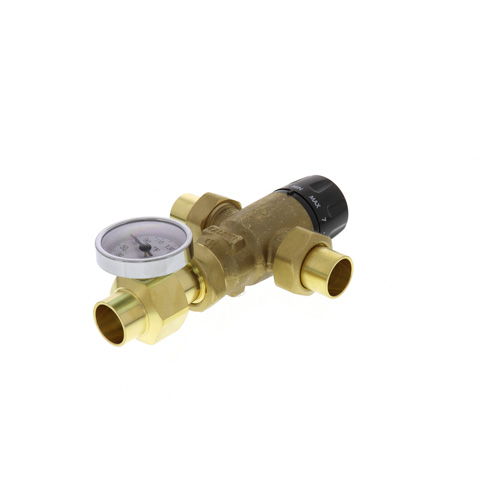

3/4" Sweat MIXCAL 3-Way Thermostatic Mixing Valve w/ Temperature Gauge
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$172.78 each
In Stock
Get 19 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
Size:
3/4"
Connection Type:
C x C
Features:
Gauge
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
C x C Connection
3/4"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–
Function
The Caleffi MIXCAL three-way thermostatic mixing valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied to the user at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The valve has been specifically certified to ASSE 1017 and IAPMO R&T.
Product Range
521519A (AC) Adjustable three-way thermostatic mixing valve, sweat connections, outlet temperature gage size 3/4"
Technical Specification
Materials: - Body: low-lead brass (<0.25% Lead content)
Shutter: PPO - Springs: Stainless steel
Seals: EPDM
Setting range: 85-150°F (30-65°C)
Tolerance: ±3°F (±2°C)
Max working pressure (static): 200 psi (14 bar)
Max working pressure (dynamic): 70 psi (5 bar)
Max hot water inlet temperature: 200°F (93°C)
Maximum inlet pressure ratio (H/C or C/H): 2:1
Minimum temperature difference between hot water inlet and mixed water outlet for optimum performance: 27°F (15°C)
Certified to: ASSE 1017
Lead Plumbing Law Compliance: (0.25% Max. weighted average lead content)
Lead Plumbing Law Certified by IAPMO R&T
The Caleffi MIXCAL three-way thermostatic mixing valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied to the user at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water. The valve has been specifically certified to ASSE 1017 and IAPMO R&T.
Product Range
521519A (AC) Adjustable three-way thermostatic mixing valve, sweat connections, outlet temperature gage size 3/4"
Technical Specification
Materials: - Body: low-lead brass (<0.25% Lead content)
Shutter: PPO - Springs: Stainless steel
Seals: EPDM
Setting range: 85-150°F (30-65°C)
Tolerance: ±3°F (±2°C)
Max working pressure (static): 200 psi (14 bar)
Max working pressure (dynamic): 70 psi (5 bar)
Max hot water inlet temperature: 200°F (93°C)
Maximum inlet pressure ratio (H/C or C/H): 2:1
Minimum temperature difference between hot water inlet and mixed water outlet for optimum performance: 27°F (15°C)
Certified to: ASSE 1017
Lead Plumbing Law Compliance: (0.25% Max. weighted average lead content)
Lead Plumbing Law Certified by IAPMO R&T
Specs
–
| Features: | Gauge |
|---|---|
| Size: | 3/4" |
| Connection Type: | C x C |
| Connection Method: | Sweat |
| Max Pressure (PSI): | 200 |
| Temperature Range (F): | 85°F - 150°F |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
| Flow Capacity (Cv): | 3 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Connection Type
Material
Application
CURRENT ITEM
3/4"
C x C
Brass
Point of Source
You May Also Need
Product Reviews
4.85 out of 13 reviews
100% would recommend this product
5 star
85%
4 star
15%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-10 of 13 reviews
I would buy this product again
This product was easy to install and worked as advertised
Denman
Melbourne Florida
10 months ago
Verified Buyer
Was this review helpful to you?
Works perfectly
I have used this brand before with successful results. I really appreciate the thermometer well and thermometer, makes it super easy to commission and monitor.
I would buy it again
CCorms
Sonoma, CA
10 months ago
Verified Buyer
Was this review helpful to you?
Easy install good value
I've been in the trade for 50 years and I believe in doing it right the first time. Every hot water maker or indirect should have thermostatic mixing valve installed. I keep my indirect at 140° to kill bacteria and deliver it at 120° so no one gets scalded
David R
Brookfield Connecticut
11 months ago
Verified Buyer
Was this review helpful to you?
I would buy this again
Temper hot water from solar collectors
Lucy
Guilford, CT
2 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Not great with hard water
Tempering valve works well but has internal parts that collect scale from hard water. Have to swap them out every few years and decalcify the old one.
Diy dad
Maine
3 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
Great product
Hvac guy
Baltimore
3 years ago
Verified Buyer
Was this review helpful to you?
This is the first time I have ordered from supply house.
The staff was very helpful in finding the mixing valve I needed. It controls our hot water temperature very well. The thermometer that is built in is wonderful, you can make adjustments and watch your new temperature. With water flowing it responds quickly.
Dickster
Le Roy MN
4 years ago
Verified Buyer
Was this review helpful to you?
Will be customer for a long tkme
Great price . Great service, and fast shipping. Ordered many times. Always on time
Richie
Ny
5 years ago
Verified Buyer
Was this review helpful to you?
Does exactly what we needed
Pricing was well below what we expected
Jim
Morristown , TN
6 years ago
Verified Buyer
Was this review helpful to you?
Great product
Works as intended with no issues. Will buy more as needed.
Bob
Silver Spring, MD
7 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Is this valve ok to use for domestic hot water ?
Asked by bubbs 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it is.
Was this review helpful to you?
Q: What is the difference between SKU521519AC and SKU521519A other than the price? I want to use the valve to mix heated water and cold for my garden.
Asked by Jim 11 years ago
Add your answer
Verified Reply- SupplyHouse Staff521519AC includes an inlet port check valve to prevent back flow of water. The 521519A does not include this check valve. In other aspects the two valves are identical in operation and features.
