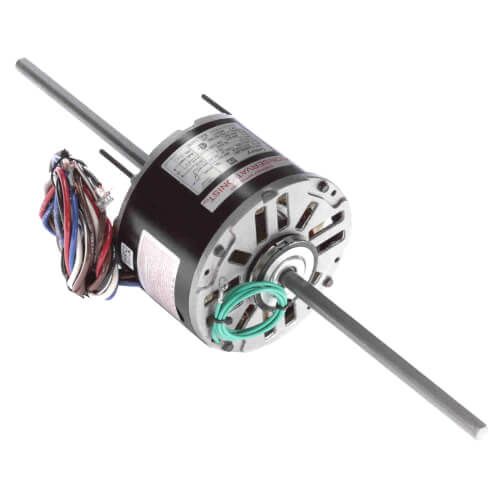

Main product image of 5-5/8" Double Shaft Fan/Blower Motor (115V, 1075 RPM, 1/8 HP)

Hover image to zoom

5-5/8" Double Shaft Fan/Blower Motor (115V, 1075 RPM, 1/8 HP)

Name: 5-5/8" Double Shaft Fan/Blower Motor (115V, 1075 RPM, 1/8 HP)
Brand: Century
SKU: RAL1006
Price: 201.89 USD
Availability: OutOfStock

Brand:

Century

SKU:

RAL1006

Rating:

(0)

Q&A:

(0)

5-5/8" Double Shaft Fan/Blower Motor (115V, 1075 RPM, 1/8 HP)

Hover image to zoom

RAL1006 has been discontinued

Discontinued April 13, 2026

This product was discontinued by the manufacturer.

MANUALS (1)

Brochure

Direct Replacement:

5-5/8" Double Shaft 48Y Fan/Blower Motor (115V, 1075 RPM, 1/8 HP), NAL1006

Brand:

Century

SKU:NAL1006

(0)

VIEW REPLACEMENT

Product Highlights

–

115V

1075 RPM

CCWLE

1/8 HP

Resilient Ring - Extended Studs

2 Amps

Description

–

5-5/8" Double Shaft Fan/Blower Motor (115V, 1075 RPM, 1/8 HP)

Features:

Continuous air over
Energy efficient
Permanent Split Capacitor
Sleeve Bearing
60 HZ
Automatic Overload
Single Phase
48 Frame

Specs

–

Type:	Permanent Split Capacitor
Horse Power:	1/8
Bearings:	Sleeve
Voltage:	115V
Duty:	Air Over
RPM:	1075
Poles:	6
Mount:	Resilient Ring - Extended Studs
Enclosure Type:	Semi-Enclosed
Rotation:	CCWLE
Hertz:	60
Speeds:	3
Frame:	48Y
Amperage:	2
Insulation Class:	A
Phase:	1
Overload Protection:	Automatic
Max Ambient Temp (°F):	140°F
Motor Orientation:	Horizontal
