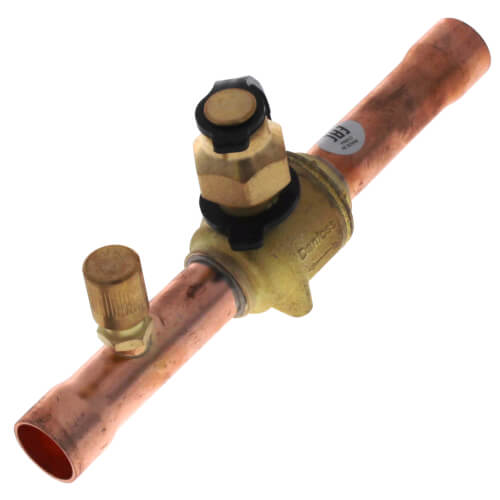

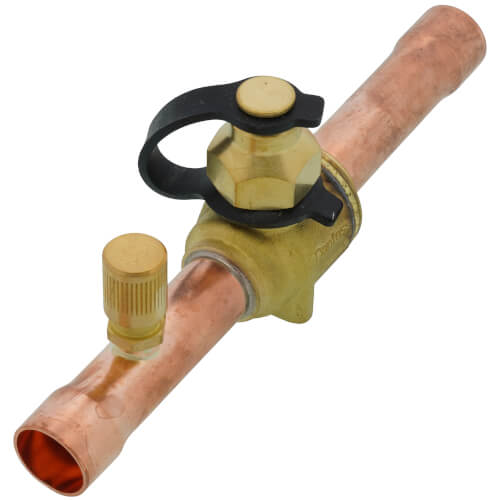

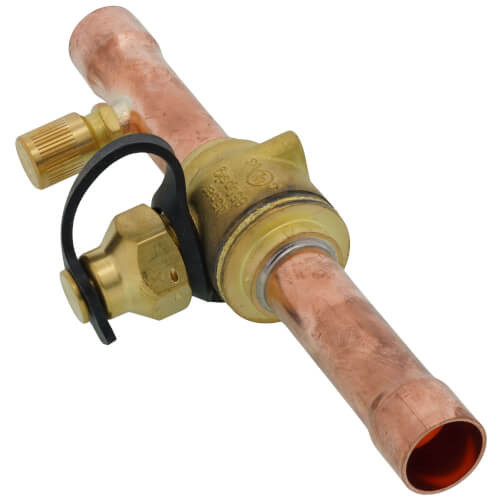

5/8" ODF Sweat Ball Valve w/ Port
GBC valves are used in liquid, suction and hot gas
lines in all refrigeration and air-conditioning
systems with fluorinated refrigerants. Danfoss
GBC ball valves are manually operated shut-off
valves suitable for bi-directional flow (1,2).
The design is based on years of experience.
The valve concept includes a high precision laser
welding (3) ensuring both a strong and a light
slim line valve body design. The design, weld,
and choice of the sealing material enables the
ball valves to meet the most demanding
requirements, for example, the high working
pressure when operating with R-410A. Additional
features include:
Specifications:
- Connection Size 5/8"
- Connection Type Solder
- Pressure Range PSIG 650
- MFG# GBC16S
