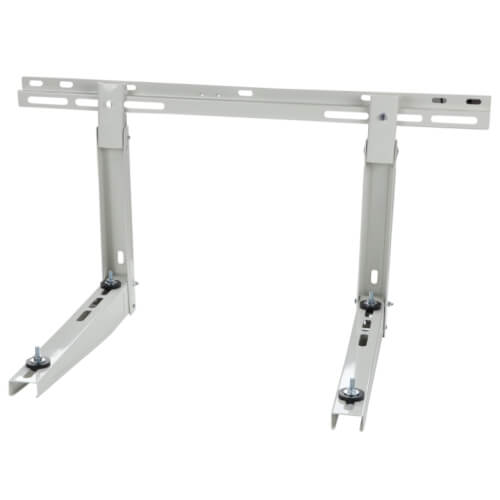

DiversiTech 230-B2L Hef-T-Bracket Wall Bracket with Easy-Fit for Mini-Split Condensers
A wall-mount bracket system used to support a ductless mini-split outdoor condensing unit on an exterior wall.
Key Features:
- Wall bracket for supporting condensing units / ductless condensers

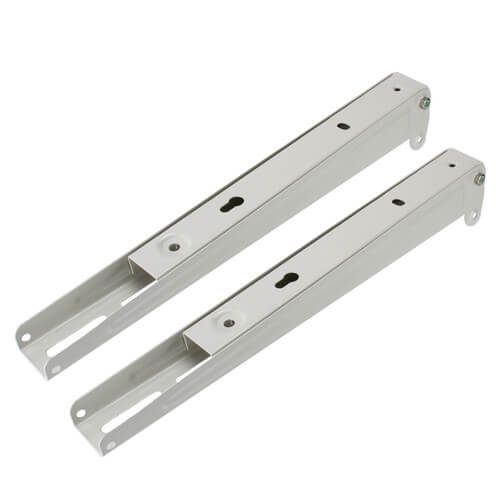

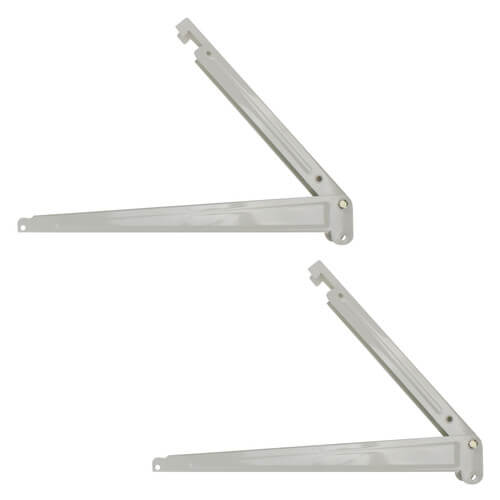

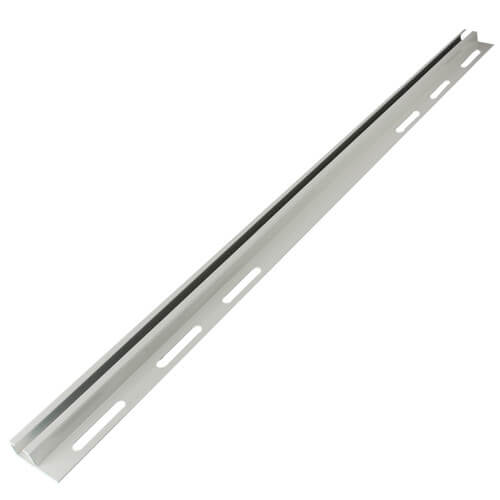

- Cross bar attaches to the wall with two L-shaped brackets that hook and bolt onto the cross bar
- Quick and easy installation design

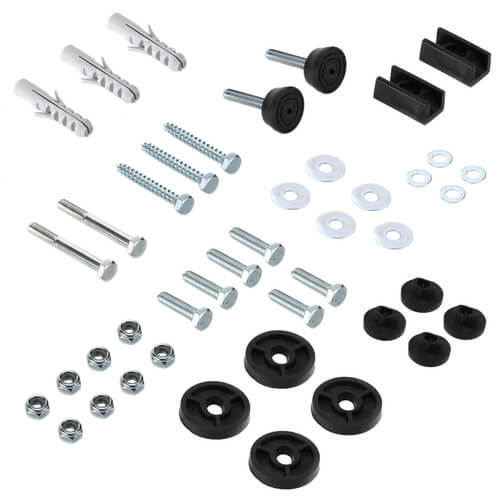

- Fastened using bolts and anti-vibration washers provided
- Construction and design details:
- Powder-coated steel
- 16 GA steel
- Maximum mounting width: 37.8 in
- All assembly hardware included
- Length details shown on the listing and documentation:
- Listing highlights 21" length
- Arm length 20.866 in
- Arm length 21.65 in and wall-bar length 34.65 in
- Capacity is stated differently across provided materials:
- Listing name references "220 lbs max"
- Listing specs show Capacity: 250 lbs
- Holds up to 176 pounds per arm
- Load capacity 310 lbs"
Compatibility & Applications:
- Intended for mini-split outdoor condensing units / condensing units in wall-mount installations
- Must only be used where the manufacturer specifies this exact part number: 230-B2L
Installation & Operation Notes:
- Installation should be performed by a qualified HVAC technician or installer familiar with mini-split mounting practices.
- Use on brick or wooden wall types with adjustment capability from 0° to 15°, using a "screwless hooking" concept and "lift up to unlock and regulate" adjustment.
- It does not meet a requested 150 mph wind rating for Florida permitting.
Maintenance & Troubleshooting:
- This is a mounting/support component; it's typically addressed when there are installation-related issues such as vibration, alignment, or hardware fit.
- Use the provided bolts and anti-vibration washers as part of the mounting system.
- If vibration/noise persists after installation, confirm the unit is securely fastened, the bracket is mounted to adequate structure, and the anti-vibration components are installed as intended.
