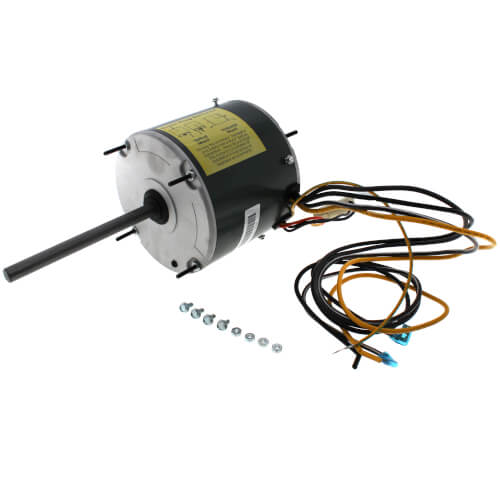

1/4 HP, 208-230 VAC (825 RPM) Condenser Fan Motor
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$114.94 each
In Stock
Get 23 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
825 RPM
CW/CCW
1/4 HP
Shaft up, shaft down, or belly band
1.5 Amps
Description
–
- Installs with all Standard 48 Frame Mounting Brackets
- Standard Shaft Length, Diameter, and Flats
- Drain Holes with Plugs in Both End Plates
- Automatic Thermal Overload Protector
- Standard 48 Frame Motor Casing Size
- Low Power Consumption
- 60 C Ambient Design
- Electrically Reversible
- Continuous Air Over
- Class B Insulation
- Quiet Operation
- Extended Studs
- 30" Leads
- Color Packaging
Bright, colorful, easy to read packaging removes confusion about motors. The distributor can easily identify the stock of motors on the shelf. The application, voltage, and horsepower of a motor are visible at a glance. - Capacitor Size
The appropriate size 370 VAC run capacitor is noted on every motor carton. - Innovative Packaging
A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft, and mounting bolts during shipment. (See Image #2) - Larger Diagram
An extra large wiring diagram is supplied on the motor itself, on the motor carton, and also in the installation and safety instruction sheet. This large wiring diagram makes it very easy to read. - Cross Reference
For your convenience, Wagner provides a complete manufacturer cross-reference on the side of every motor carton. - Large Label
Informative product label contains the motor model number in large type. The UPC code is also printed on every motor label. - Extended Bolts
Extended mounting bolts provide for easier installation in cramped spaces. With the longer bolts, the installer is able to more easily start the threaded mounting nut. - Extended Wires
Wagner motor wires are thirty inches long. The added length makes it easier for the contractor to install the new motor. - Wire Stripping
Partial stripping leaves the insulation on the motor connection wire. This protects the stranded copper wire and prevents damage to individual strands. - Insulated Disconnects
Run capacitor connections are insulated for increased safety. Flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided.
Specs
–
| Amperage: | 1.5 |
|---|---|
| Motor: | Permanent Split Capacitor |
| Horse Power: | 1/4 |
| Voltage: | 208/230V |
| RPM: | 825 |
| Speeds: | 1 |
| Capacitor: | 370 VAC |
| Hertz: | 60 |
| Insulation Class: | B |
| Mount: | Shaft up, shaft down, or belly band |
| Bearings: | Sleeve |
| Finish: | Grey-green powdercoat |
| Frame Size: | 48 |
| Rotation: | CW/CCW |
| Temperature Rating: | 60 deg C / 140 deg F |
| Lead Wire Length: | 30 inches |
| Lead Wire Gauge: | #18 AWG |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Amperage
Horse Power
Voltage
RPM
Speeds
CURRENT ITEM
1.5
1/4
208/230V
825
1
You May Also Need
Product Reviews
4.5 out of 8 reviews
100% would recommend this product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Showing 1-8 of 8 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Good Purchase of Motor
Everything described with basic handout instructions. Too short of wire leads..had to splice in extra leads for could have been a relatively simple plug & play hvac system install.
W.D.
CA
12 months ago
Verified Buyer
Was this review helpful to you?
yes
y
h
n
4 years ago
Verified Buyer
Was this review helpful to you?
Replacement Condenser Motor was the Exact OEM Factory Part
My condenser motor had a bad bearing and needed to be replaced. I was able to find the exact motor at SupplyHouse.com, and my shipment arrived on time and undamaged. The price was extremely affordable, and the instructions were easy to understand. I am one satisfied customer.
Mikeman
San Antonio, TX
5 years ago
Verified Buyer
Was this review helpful to you?
Looks good
I like this fan, and I probably would give it five stars, but I recently installed it and it has not been through a cooling season yet. For the installation, I cut off a little bit of the four mounting bolts so they would not stick up too far above the nuts on top of the air conditioner. I also used a zip tie to secure the wires that allow reversing the fan direction; that made the installation look a little neater.
Note that the fan calls for a capacitor rated at 7.5 mfd; my old capacitor was 5 mfd.
Buying this and installing it at my rental house was way less expensive than the exorbitantly priced HVAC company I used for the same air conditioner two years ago. The repair technician did a sloppy job and gave me a fan that lasted only two years.
BobH
Cedar Park, TX
8 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again, hopefully i wont need to.
Product was the correct fit and delivered the next day. Great service.
Cindy
Las Vegas, NV
8 years ago
Verified Buyer
Was this review helpful to you?
will buy again
Not a motor we replace often, but when we need it, this is the perfect replacement.
Werners
SW Ks
8 years ago
Verified Buyer
Was this review helpful to you?
Works Great
Worked great for a replacement on my Goodman Condenser Unit. Just don't use the Brown/White wire.
glennmidd
San Antonio, Tx.
13 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
Product came packaged with wiring diagram on outside of box, and worked perfectly for my application.
jdwilldo
Irving, Texas
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: What is the diameter of the shaft?
Asked by Andre 9 years ago
Add your answer
Verified Reply- The diameter of the shaft is 1/2"
Was this review helpful to you?
Q: what capacitor is used with this motor?
Asked by Mark 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffThe run capacitor must meet the following specification 370 VAC - 5 to 20 μF
Was this review helpful to you?
Q: Is this motor UL or ETL listed?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffDiversiTech 1/4 HP, 208-230 VAC (825 RPM) Condenser Fan Motor is UL listed.
