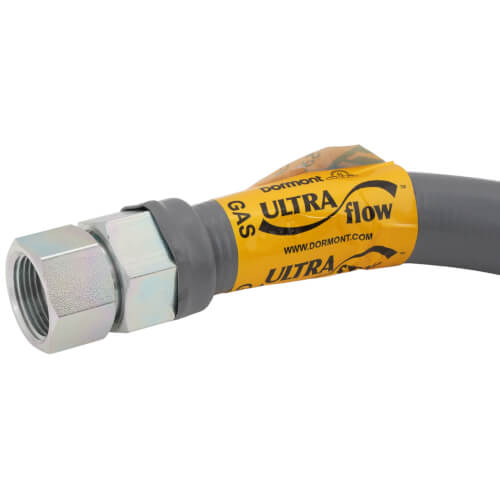

Model 51-5152-18 1" ID (1-1/4" OD) PVC Coated High BTU SS Gas Connector 1" MIP x FIP (18" Length)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$77.21 each
In Stock
Get 33 Thu, Jun 18
Order by today, receive Thursday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Stainless Steel
1"
1-1/4"
18" Length
FIP x MIP Connection
1"
Description
–
Model 51-5152-18 1" ID (1-1/4" OD) PVC Coated High BTU SS Gas Connector 1" MIP x FIP (18" Length)
This 1 1/4 inch OD, 1 inch ID, durable, corrosion resistant stainless steel gas connector is configured with 1 inch MIP x 1 inch FIP adapters and is 18 inches in length. Provided with a hot-dipped, heavy duty gray PVC coating, this gas connector is used for indoor and outdoor high BTU applications such as rooftop units and tankless water heaters. Designed with safety in mind, this is a CSA approved gas connector
Features:
- Tubing Annealed, 304 stainless steel (ASTM A240)
- Flare nuts - Brass or plated steel
- Adapters - Brass or plated steel
- Coating Heavy-duty, antimicrobial, hot-dipped gray PVC (41, 51 & 61 series). Coating will not hold a flame.
- Approved for indoor and outdoor use
- Operating temperature with adapters: -40_F to 150_F
- 100% leak tested
- When installing a new appliance or when an existing appliance is moved to a new location a NEW gas connector must be used per manufacturer's installation instructions and per product standards ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27.
- Avoid repeated bending, flexing, or extreme vibration. Do not use on portable gas generators due to excessive vibration
- Not suitable for moveable installations. Not NSF certified.
- Designed for high BTU demand
- Exclusive No-Neck_ design increases flexibility
- CSA design-certified Durable 304 stainless steel tubing
- More corrugations per inch increase flexibility and extend service life
Applications:
- Boilers
- Gas Meters
- Furnaces
- Commercial
Water Heaters:
- Gas packs/Rooftop HVAC units
- Tankless Water Heater
- Stationary Standby Gas Generators
Specs
–
| Size: | 1" |
|---|---|
| Connection Type: | FIP x MIP |
| Length (Inches): | 18" |
| NG Capacity (BTU): | 637000 |
| Type: | Corrugated |
| LP Capacity (BTU): | 1019200 |
| OD: | 1-1/4" |
| ID: | 1" |
| Coating: | Gray Coated |
| Material: | Stainless Steel |
| Application: | Heating High BTU |
