Model 51-5152-72 1'' ID MIP (1-1/4" OD) PVC Coated High BTU SS Gas Connector 1" FIP (72" Length)
Hover image to zoom

Model 51-5152-72 1'' ID MIP (1-1/4" OD) PVC Coated High BTU SS Gas Connector 1" FIP (72" Length)

Brand:
Dormont
SKU:
0241118
Rating:
(1)
Q&A:
(0)
Model 51-5152-72 1'' ID MIP (1-1/4" OD) PVC Coated High BTU SS Gas Connector 1" FIP (72" Length)
Hover image to zoom
$180.57 each
In Stock
In Stock
Get 6 Fri, Jun 21
More Available
Fast Track Logo
Order by 6PM, receive Friday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Material icon
Stainless Steel
ID icon
1"
OD icon
1-1/4"
Length (Inches) icon
72" Length
Connection Type icon
MPT x FPT Connection
Size icon
1"

Description

Model 51-5152-72 1'' ID MIP (1-1/4" OD) PVC Coated High BTU SS Gas Connector 1" FIP (72" Length)

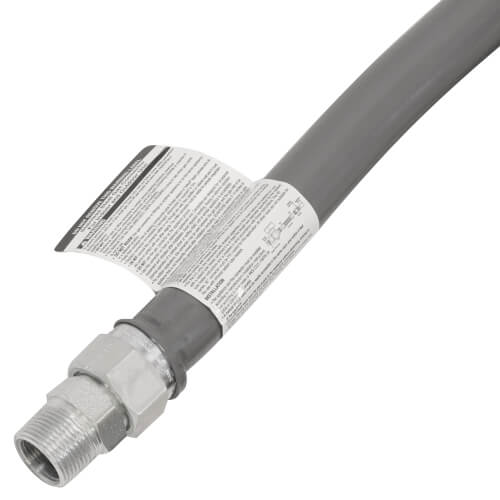

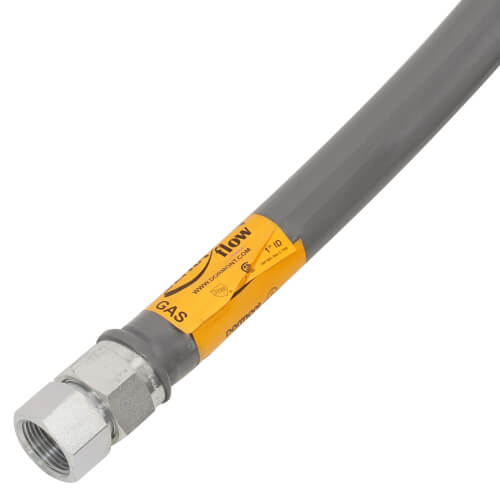

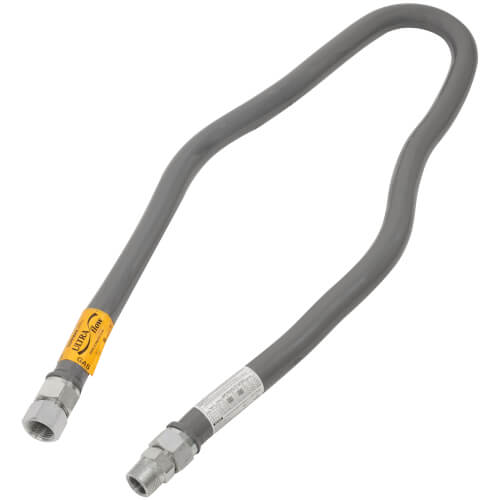

This 1 1/4 inch OD, 1 inch ID, durable, corrosion resistant stainless steel gas connector is configured with 1 inch MIP x 1 inch FIP adapters and is 72 inches in length. Designed with safety in mind, this CSA approved gas connector has a hot-dipped, heavy duty gray PVC coating that provides protection from weather, UV, and chemicals. It is commonly used for the installation of high BTU appliances such as tankless water heaters, rooftop units and mobile home gas meters.

Features:
  • Tubing - Annealed, 304 stainless steel (ASTM A240)
  • Flare nuts - Brass or plated steel
  • Adapters - Brass or plated steel
  • Coating - Custom Formulated Polymer
  • Approved for indoor and outdoor use
  • Temperature rating with adapters: -40°F to 150°F
  • Temperature rating with valves: -40°F to 125°F
  • 100% Factory leak tested
  • When installing a new appliance or when an existing appliance is moved to a new location a NEW gas connector must be used per manufacturer’s installation instructions and per product standards ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27.
  • Not engineered for high temperature applications such as gas logs, fireplace inserts or free-standing fireplaces
  • Not suitable for moveable installations. Not NSF certified
  • Avoid repeated bending, flexing, or extreme vibration. Do not use on portable gas generators due to excessive vibration

Specs

Length (Inches):

72"

NG Capacity (BTU):

347800

LP Capacity (BTU):

556480

Type:

Corrugated

Size:

1"

Connection Type:

MPT x FPT

OD:

1-1/4"

ID:

1"

Material:

Stainless Steel

Coating:

Gray Coated

Application:

Heating
