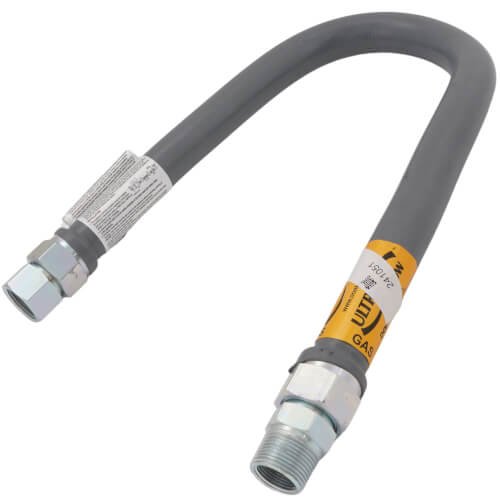

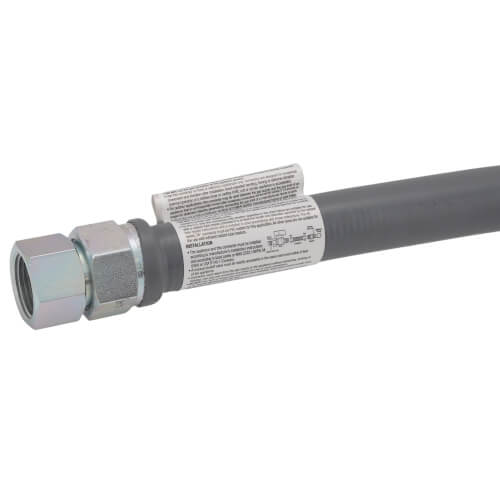

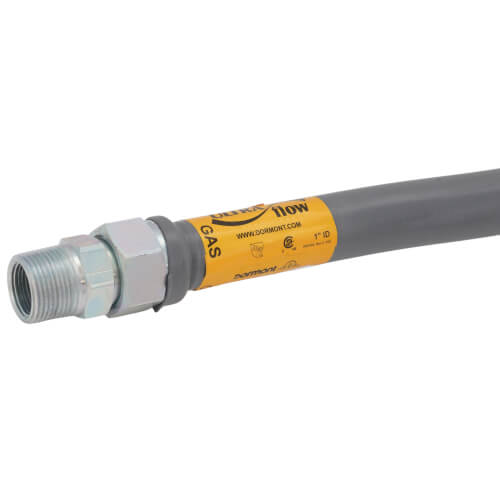

Model 51-5152-36 1" ID (1-1/4" OD) PVC Coated High BTU SS Gas Connector 1" MIP x FIP (36" Length)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$94.05 each
In Stock
Get 15 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Stainless Steel
1"
1-1/4"
36" Length
FIP x MIP Connection
1"
Description
–
Model 51-5152-36 1" ID (1-1/4" OD) Gray PVC Coated High BTU SS Gas Connector 1" MIP x FIP (36" Length)
This 1-1/4 inch OD, 1 inch ID, durable, corrosion resistant stainless steel gas connector is configured with 1 inch MIP x 1 inch FIP adapters and is 36 inches in length. Provided with a hot-dipped, heavy duty gray PVC coating, this gas connector is used for indoor and outdoor high BTU applications such as rooftop units and tankless water heaters. Designed with safety in mind, this is a CSA approved gas connector.
Features:
Applications:
Water Heaters:
This 1-1/4 inch OD, 1 inch ID, durable, corrosion resistant stainless steel gas connector is configured with 1 inch MIP x 1 inch FIP adapters and is 36 inches in length. Provided with a hot-dipped, heavy duty gray PVC coating, this gas connector is used for indoor and outdoor high BTU applications such as rooftop units and tankless water heaters. Designed with safety in mind, this is a CSA approved gas connector.
Features:
- Tubing Annealed, 304 stainless steel (ASTM A240)
- Flare nuts - Brass or plated steel
- Adapters - Brass or plated steel
- Coating Heavy-duty, antimicrobial, hot-dipped gray PVC (41, 51 & 61 series). Coating will not hold a flame.
- Approved for indoor and outdoor use
- Operating temperature with adapters: -40°F to 150°F
- 100% leak tested
- When installing a new appliance or when an existing appliance is moved to a new location a NEW gas connector must be used per manufacturer’s installation instructions and per product standards ANSI Z21.24/CSA 6.10 and ANSI Z21.75/CSA 6.27.
- Avoid repeated bending, flexing, or extreme vibration. Do not use on portable gas generators due to excessive vibration
- Not suitable for moveable installations. Not NSF certified.
- Designed for high BTU demand
- Exclusive No-Neck® design increases flexibility
- CSA design-certified Durable 304 stainless steel tubing
- More corrugations per inch increase flexibility and extend service life
Applications:
- Boilers
- Gas Meters
- Furnaces
- Commercial
Water Heaters:
- Gas packs/Rooftop HVAC units
- Tankless Water Heater
- Stationary Standby Gas Generators
- Specifically designed for application with a significant BTU requirement. Can supply up to 1.5 million BTU (natural gas) or 2.4 million (propane), depending on length.
- Eliminates the need for pipe nipples, 90’s and elbows.
- Pre-fabricated gas connector means no field threading, cutting or assembly of CSST fitting and tubing.
Specs
–
| Connection Type: | FIP x MIP |
|---|---|
| Length (Inches): | 36" |
| NG Capacity (BTU): | 515900 |
| Type: | Corrugated |
| LP Capacity (BTU): | 825440 |
| Size: | 1" |
| OD: | 1-1/4" |
| ID: | 1" |
| Material: | Stainless Steel |
| Coating: | Gray Coated |
| Application: | Heating High BTU |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-4 of 4 reviews
Purchasing from Supply House has always been a great.
Great website, great price, product show up quickly.
RJP
SLC,Utah
9 months ago
Verified Buyer
Was this review helpful to you?
I would buy again
Great product. Fast shipping and customer service is excellent. Thank you!
Snappy
St Louis MO
1 years ago
Verified Buyer
Was this review helpful to you?
This product is a good choice for hooking up my customer's .

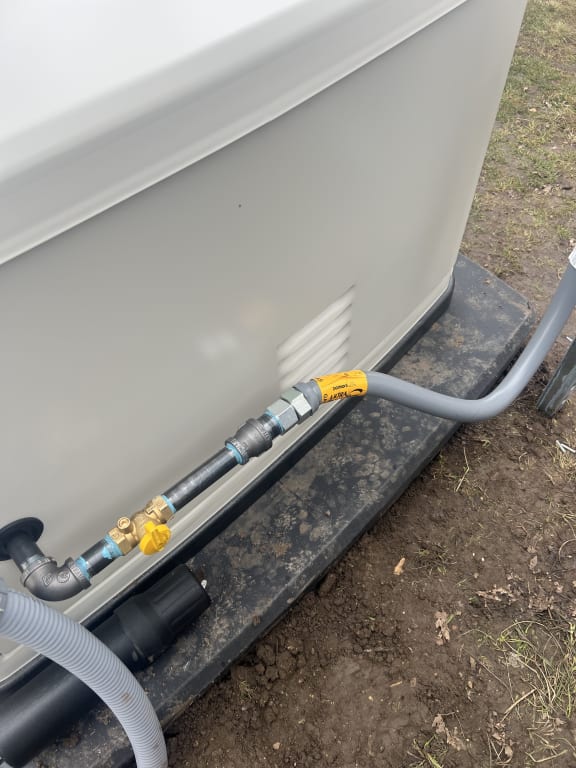

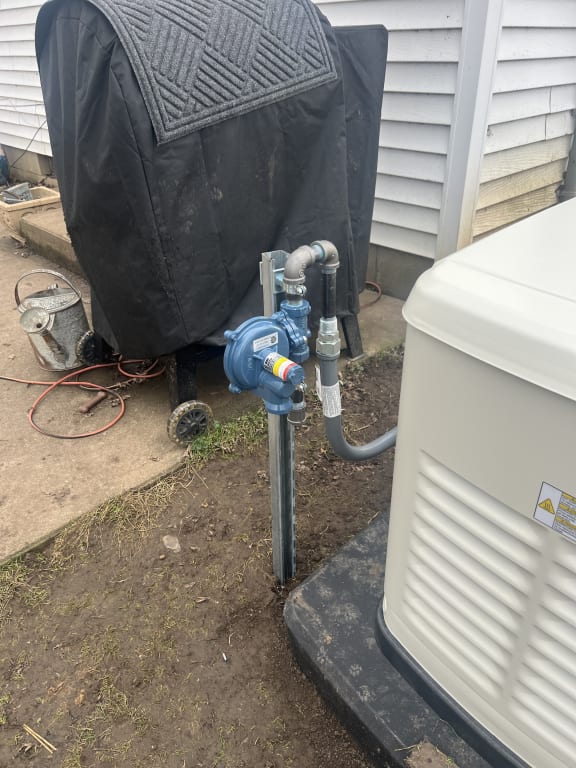

I use this product to connect the secondary side of an LP regulator to the Generac fuel input port.
