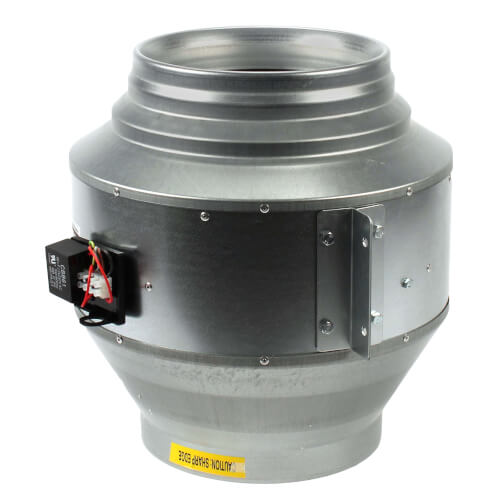

FKD 12XL Series Round Inline Mixed Flow Centrifugal Fan, 12" Duct (1,863 CFM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
498327 has been discontinued
Discontinued May 15, 2025
This product was discontinued because the part number was changed by the manufacturer. No modifications were made to the replacement product.
MANUALS (2)
This item replaces: FKD12XL
Direct Replacement:
FKD Series Round Inline Mixed Flow Centrifugal Fan, 12" Duct (2,016 CFM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
4.14
1863 CFM
5 Year Limited Warranty
12"
120v
1641 RPM
Description
–
Fantech's direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important. Perfect for commercial and institutional structures such as offices, commercial bathrooms, hospitals, beauty salons, veterinary clinics as well as residential applications such as kitchen range hood exhausts.
Features:
Features:
- Galvanized steel housing
- Built-in thermal overload protection with automatic reset
- Simplified lever-action, quick wiring terminals
- Mixed flow impeller enabling high static pressure
- Suitable for airstream temperatures up to 140°F
- Comes with fan brackets for quick and easy installation
- UL, CSA, HVI, and AMCA Air & Sound certified
- Limited five-year warranty
Specs
–
| Duct Size: | 12" |
|---|---|
| Voltage: | 120v |
| RPM: | 1641 |
| Air Flow Capacity (CFM): | 1863 |
| Rated Watts: | 487 |
| Max. Amps: | 4.14 |
| Housing Material: | Galvanized Steel |
| 0" Ps: | 1863 CFM |
| 0.5" Ps: | 1524 CFM |
| 0.75" Ps: | 1325 CFM |
| 1.0" Ps: | 1052 CFM |
| 1.5" Ps: | 300 CFM |
| Warranty: | 5 Year Limited |
