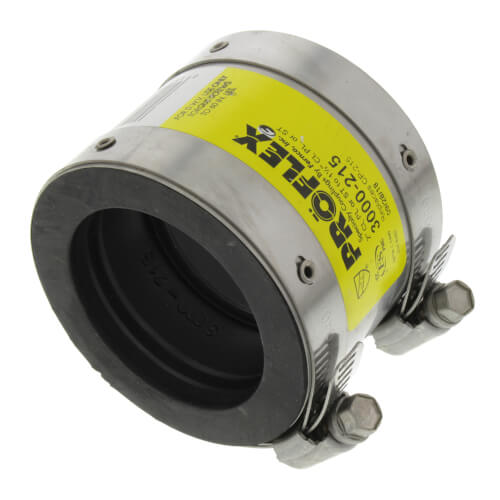

This fitting connects 2" cast iron, PVC, or steel to 1-1/2" cast iron, PVC, or steel.
- .012" stainless steel shield
- 301 Stainless Steel Clamp Bands
- Gasket Material: Neoprene
- Gasket ID: Part No. and application on each gasket.
- Shield Assembly Material Requirements: All 300 Series S.S.
Clamp
- Band = 301 Stainless Steel .025 x .500 x Length
- Housing = 301 Stainless Steel - Fernco
- Screw = 305 Stainless Steel 5/16" Hex - No Slot
- Shield - 301 Stainless Steel .012 x 2.125 x Length
- Eyelet - 305 Stainless Steel
- Installation Torque = 60 lb-in
- Maximum test pressure: 4.3 PSI (29.6KPA)
- Maximum operating temperature: 180° F
- Conforms to the requirement of ASTM C1460
