Yes, it is compatible with the GVD 6.
46487101 is the listed replacement for the RVGP-PC-6 available here: http://www.supplyhouse.com/Field-Controls-GVD-6PL-6-Automatic-GVD-Vent-Damper-11703000-p
we dont have specs on the EFFIKAL RVG-P-A, so i cant verify that it will work.

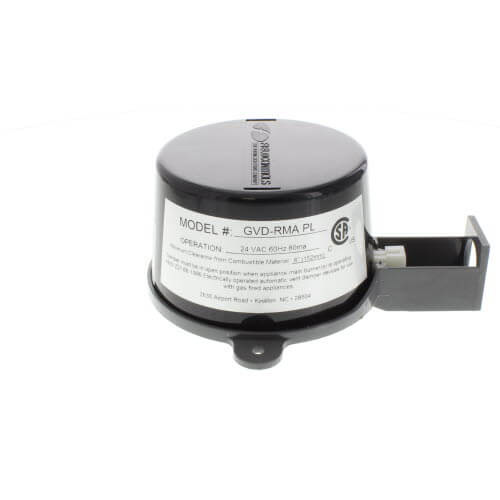

that is just the motor, and it will fit on a GVD7
you should be able to. I just switched mine out. If I recall there is just a plug
You mean motor assembly? There's more then just motor in that small box. As far as I remember I didn't have to do anything. Replaced it 2 years ago and I haven't had any problems since. --- sasha
yes
Hello, Item 46491600 that was ordered 11-15-11 was a direct replacement for the GVD-9. I believe the existing wiring harness worked with the new damper motor. Since it's been a couple of years since I installed the new part I don't recall for sure having to rewire anything.
According to the manufacturer, you can either replace the entire unit or just the motor assembly. The GVD and the Effikal RVGP are interchangeable.
Yes, it does.
Yes, it certainly does. It is mounted far enough from the pipe so that it's not too hot. And the plastic that is used is holding OK.
sure, the base isn't what breaks anyway. The gear in the motor is what strips.
Yes. It's far enough away from the heat of the flue pipe.
This motor will replace all Field Controls and Effikal units. The molex plugs on the motors are the same, only the harness ends that adapt to the appliance are different.
