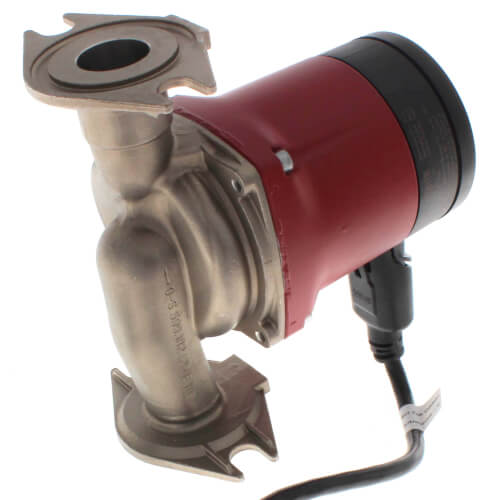

ALPHA2 15-55SF/LC Stainless Steel Circulator Pump (w/ Line Cord)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
99163972 has been discontinued
Discontinued July 25, 2023
This product was discontinued by the manufacturer.
This item replaces: 59896834
'/%3E%3C/svg%3E){kind=small}
Suggested Alternative:
UPS15-55SFC Stainless Steel 3-Speed Flanged Circulator Pump, 1/12 HP, 115 V
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
115V
1/16 HP
Flanged x Flanged Connection
150 MAX PSI
36°F Min Temp
230°F Max Temp
Description
–
Grundfos is proud to introduce the next generation of
energy efficient circulators - the Grundfos ALPHA.
By incorporating a permanent magnet motor design,
power consumption is now reduced by 50%. The
Grundfos ALPHA adapts to the variable demands of
the system without sacrificing comfort. Using the
AUTOADAPT feature, the Grundfos ALPHA will analyze
the system and adjust to meet your heating demands.
Features:
Features:
- AUTOADAPT measures system changes automatically and maximizes energy savings
- Easy-to-use operation
- Select a mode with the touch of a button
- Easy-to-read LED display shows flow indication and power consumption
- Simple plug connections
- No wiring required
Specs
–
| Application: | Zoning |
|---|---|
| Horse Power: | 1/16 |
| Flow Range (GPM): | 0-21 |
| Max Head (Ft): | 18 |
| Head Range (ft.): | 0-19 |
| Min Temp (F): | 36°F |
| Max Temp (F): | 230°F |
| Max Pressure (PSI): | 150 |
| Phase: | 1 |
| Voltage: | 115V |
| Amperage: | 0.65 |
| Frequency: | 60 Hz |
| Type: | Var. Speed Pump |
| Connection Type: | Flanged x Flanged |
| Material: | Stainless Steel |
