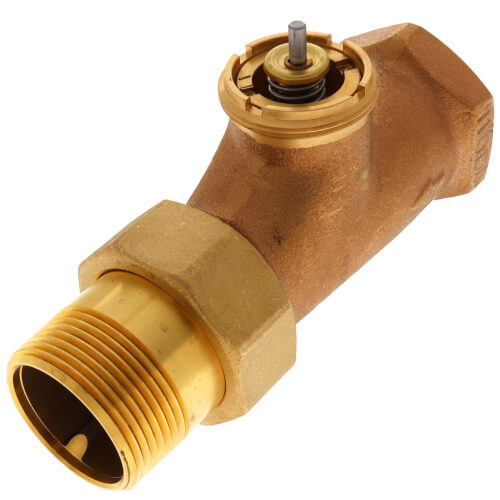

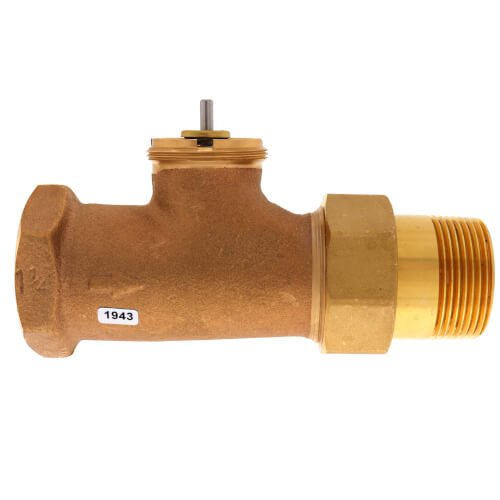

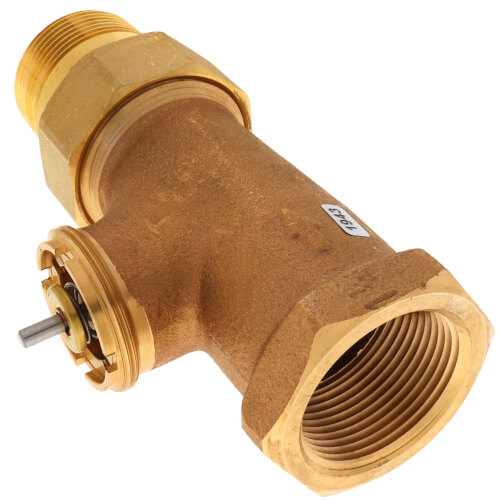

1-1/4" Straight Valve For High Capacity Radiator
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$177.79 each
In Stock
Get 9 Fri, Jun 12
Order by today, receive Friday
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1-1/4"
17 psi
Straight
15 (Steam), 150 (Hot Water) MAX PSI
Bronze
8 Cv
Description
–
Product Overview:
- High capacity thermostatic radiator valves with T104 thermostatic actuators provide precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.
Product Features:- Designed with the higher capacity normally required by North American heating systems
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems
- Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
- All working parts are replaceable using service tool (MT100C1011) while valve remains in service, in-line, under pressure
- Valves normally open without control mounted
- Valves may be used with T104 thermostatic actuators
- Meets ASHRAE Standard 102-1989
Product Specifications:- Description: Straight Pattern 1 1/4 in. Valve for High Capacity Radiator
- Application Type: Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units
- Pipe Size (inch): 1 1/4 in.
- Pipe Size (DN): DN32
- Body Pattern: Straight
- Capacity: High
- Capacity (Cv): 8 Cv
- Capacity (Btu/hr-steam): 193,000 Btu/hr
- Connection Type: Threaded
- Pressure Ratings (Hot Water): 150 psi maximum
- Pressure Ratings (Hot Water): 1034 kPa maximum
- Pressure Ratings (Steam): 15 psi maximum
- Pressure Ratings (Steam): 103 kPa
- Differential Pressure Ratings (psi): 17 psi maximum
- Temperature Ratings (F): 248 F Maximum
- Temperature Ratings (C): 120 C Maximum
- Materials (Body): Nickel Plated Bronze
- Cartridge Change Tool: Yes - Use MT110C1011
- Used With: T104
Specs
–
| Application: | 2 Pipe Steam Hot Water |
|---|---|
| Size: | 1-1/4" |
| Differential: | 17 psi |
| Body Pattern: | Straight |
| Max Pressure (PSI): | 15 (Steam) 150 (Hot Water) |
| Material: | Bronze |
| Capacity: | High |
| Flow Capacity (Cv): | 8 |
| Connection Type: | FNPT x MNPT Union |
| Capacity (BTU): | 193000 |
| BTU: | 193000 Btu/hr (steam) |
| Position: | Normally Open |
| Temperature Range (F): | 248°F Max |
