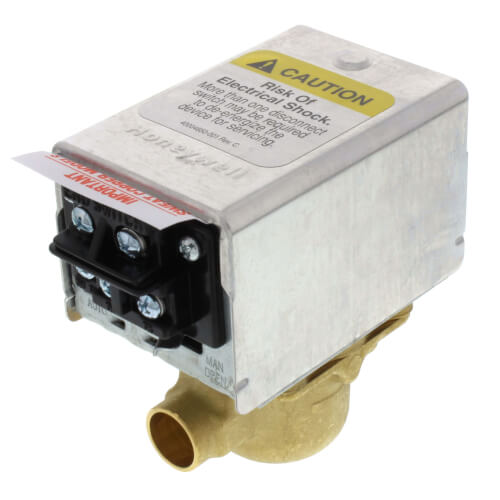

1/2" Sweat Zone Valve (Connection = Terminal Block)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$119.83 each
In Stock
Get 61 Wed, Dec 6
More Available
Order by today, receive Wednesday
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Replacement Parts
View AllFree Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way, Straight-Through
Sweat Connection
3.5 Cv
1/2"
24v
Normally Closed
Description
–
ON-OFF and two-way low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water and some models for steam.
Features
Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure. valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
- Chilled water models available for cooling and heating applications
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 1/2" |
| Flow Capacity (Cv): | 3.5 |
| Width (Inches): | 3-1/2" |
| End Switch: | Yes |
| Height: | 4" |
| Max Pressure (PSI): | 300 |
| Material: | Brass |
| Amperage: | 0.3 |
| Voltage: | 24v |
| Position: | Normally Closed |
| Depth (Inches): | 2-3/8" |
| Wiring: | Screw Terminal Block |
| Body Pattern: | 2-Way Straight-Through |
| Hertz: | 59 50 |
| Max Ambient Temp (°F): | 125°F |
| Max Close-Off PSI: | 20 psi |
| Max Temp (F): | 200°F |
| Temperature Range (F): | 50°F - 200°F |
| Min Temp (F): | 50°F |
| Connection Type: | Sweat |
