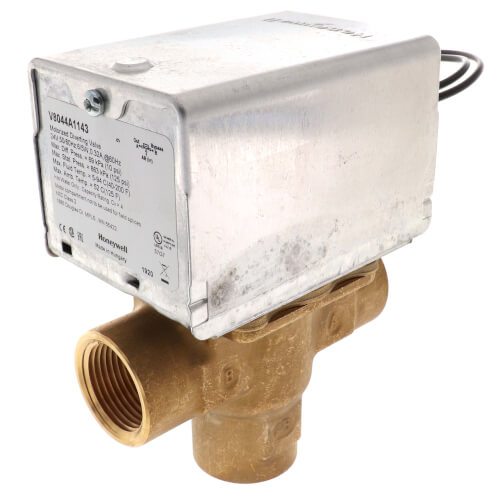

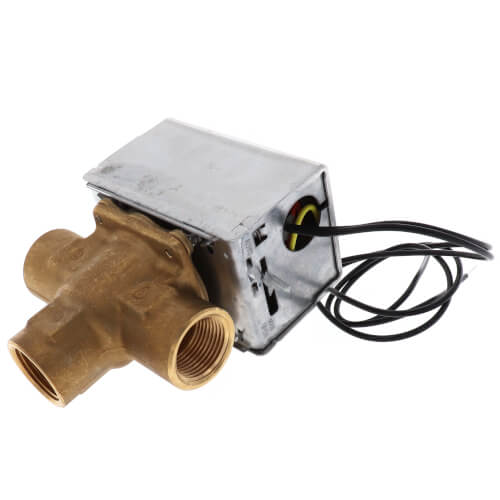

3/4" NPT Connection 3 Way Zone Valve, port A normally closed (24v)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$163.70 each
In Stock
Get 20 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3-Way, Diverting
Threaded Connection
4 Cv
3/4"
24V
Normally Closed
Description
–
- On-off and diverting line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water.
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 3/4" |
| Voltage: | 24V |
| Position: | Normally Closed |
| Connection Type: | Threaded |
| Flow Capacity (Cv): | 4 |
| Max Close-Off PSI: | 10 psi |
| Body Pattern: | 3-Way Diverting |
| End Switch: | No |
| Wiring: | 18" Leads |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Voltage
Position
Connection Type
Flow Capacity (Cv)
CURRENT ITEM
3/4"
24V
Normally Closed
Threaded
4
You May Also Need
4 Replacement Parts
Replacement head for V8044A (24V, 50/60 Hz)
SKU: 40003916-046
Honeywell HomeReplacement head for V8044A, (24v, 50/60 Hz)
SKU: 40003916-032
Honeywell Home3 Way Powerhead Conversion Kit (Water)
SKU: 40003918-007
Honeywell Home
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
Be the first to write a review.
Product Q&A
3 Questions3 Questions
Q: I need a three way zone valve that can be used on an open loop system. I need to be able to put it thru a heat exchanger or return it back to the wood fired boiler which is open to the atmosphere and unfortunately has to be replenished with fresh water regularly. Is there a 3-way that can be used with open loop system?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThere are no 3-way valves that we are aware of that can be used on an open system.
Was this review helpful to you?
Q: I need a valve of this type but that can be used on an open loop system. I see this is only recommended for closed loop systems. Can you point me in the right direction? Thanks
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe Taco 5101-G2 ( http://www.pexsupply.com/Taco-5101-G2-5101-G2-3-4-Threaded-Geothermal-Valve-4017000-p ) can be used in open systems.
Was this review helpful to you?
Q: Is the power on all the time the valve is open to port A, what is the current draw?
Asked by Dick 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe current draw is 7.7 VA. This valve is normally closed when it is powered off. This valve will be open when it is powered on.
Was this review helpful to you?
