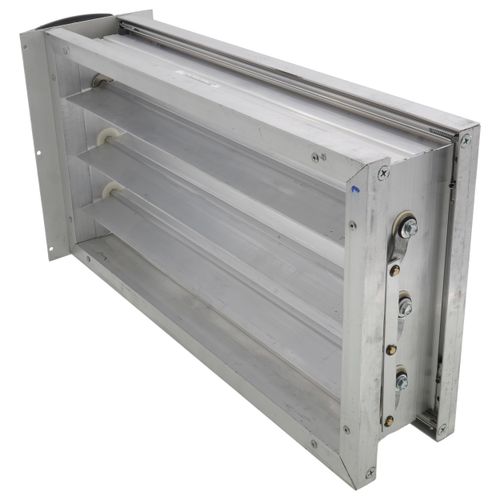

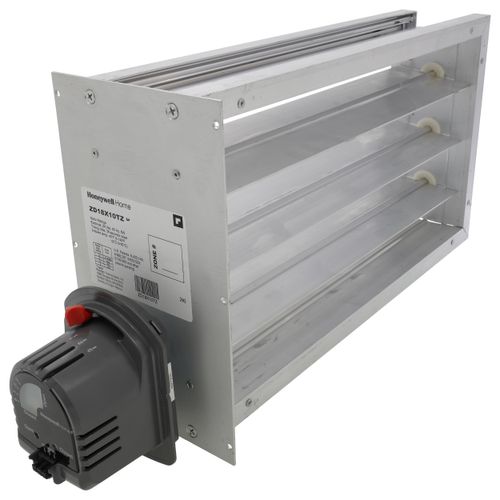

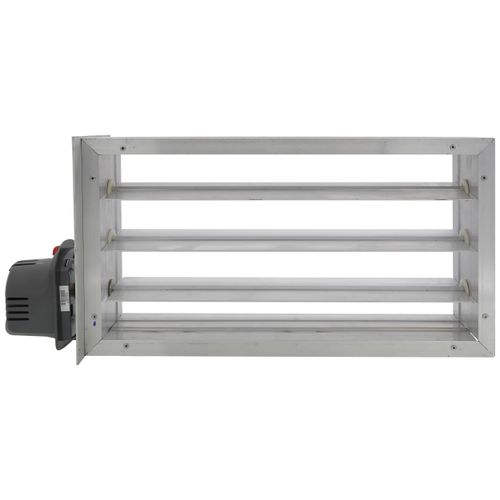

18 in. x 10 in. TrueZONE Rectangular Parallel Blade Damper
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$265.31 each
In Stock
Order by 6PM, receive Monday
MANUALS (4)
This item replaces: ZD18X10
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
18" x 10"
Rectangular
24V
5 Year Warranty
Description
–
Overview
The ZD is a power close and spring open damper. It has a 24-volt motor used to control circulating air in heating, cooling and ventilating systems. It is used when a normally-open damper is required. The ZD is typically used with the TrueZONE systems and other electronic zoning systems.
Features
The ZD is a power close and spring open damper. It has a 24-volt motor used to control circulating air in heating, cooling and ventilating systems. It is used when a normally-open damper is required. The ZD is typically used with the TrueZONE systems and other electronic zoning systems.
Features
- Kevlar gearing reduces wear, more than doubling damper life.
- Adjustable range stops.
- Mechanical visual position indicator for damper status.
- Solid construction using extruded aluminum frame and blades.
- Parallel blade design for low leakage performance.
- Quieter operation with fewer blades.
- Simple, easy-to-wire, two-wire installation.
- Reliable, strong, 24-volt spring-return motor.
- Fail-safe, normally open operation.
- Compatible with conventional and networked zoning.
- Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is a 8 in. x 10 in. damper that has the motor on the 10 in. side.
- Damper can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).
Specs
–
| Warranty: | 5 Year |
|---|---|
| Shape: | Rectangular |
| Size: | 18" x 10" |
| Application: | Air Quality |
| Voltage: | 24V |
| Features: | Adjustable Range Stops |
| Motor: | Spring Return |
| Motor Side: | 10" |
| Wires to Motor: | 2 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Shape
Size
Application
Voltage
CURRENT ITEM
Rectangular
18" x 10"
Air Quality
24V
You May Also Need
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Great motorized damper
Replaced 25 year old dampers. I like the light on the new damper to show it is activated. The open/closed indicator is easy to read and understand.
Bruce
Kansas City Go Chiefs
2 years ago
Verified Buyer
Was this review helpful to you?
Works like a charm.
I needed to replace the old damper because the spring was worn out and I prefer the Honeywell dampers because the spring is in the actuator, so SupplyHouse had it at a good price so I bought it and it works great. This is the second time I have bought an item from them and I've been very satisfied with both purchases.
Ron
Williamsburg, VA
5 years ago
Verified Buyer
Was this review helpful to you?
