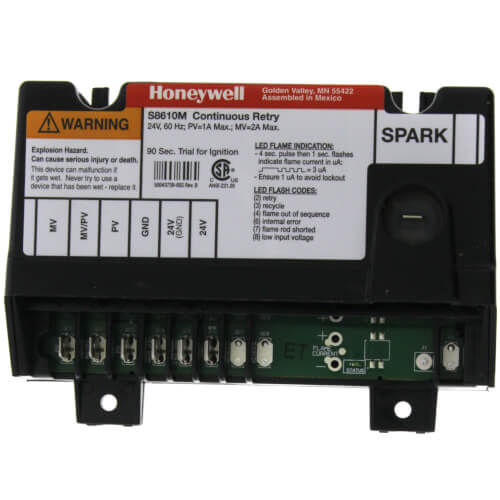

One-Rod Intermittent Pilot Control
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$132.53 each
In Stock
Get 134 Thu, Oct 5
More Available
Order by 5PM, receive Thursday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Intermittent Pilot
Description
–

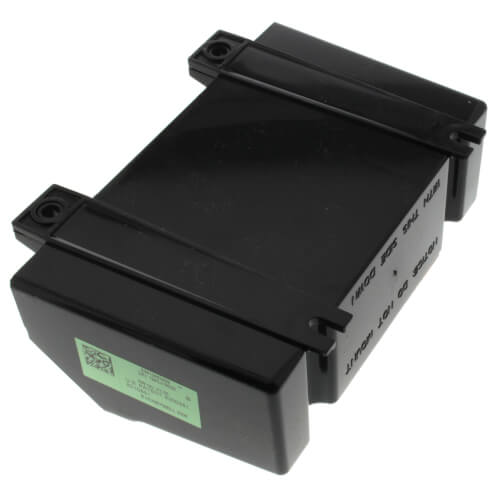

Note: Image may not be an exact representation of the item. The item will either have a black or white plastic cover.
Overview
Provide electronic control of intermittent pilot ignition systems used on gas-fired furnaces, boilers and other heating appliances.
Features
Specifications
Overview
Provide electronic control of intermittent pilot ignition systems used on gas-fired furnaces, boilers and other heating appliances.
Features
- Provide ignition sequences, flame monitoring and safety shutoff for intermittent pilot central furnaces and heating appliances.
- Functional equivalent of S86, S860, and S90 modules. Include spark cable adapter to allow field replacement of S86, S860, and S90 without replacing existing spark cable.
- Include relay contacts for use with any intermittent pilot gas control string with maximum 1.0A pilot and 2.0A main valve rating; Honeywell VR8204, VR8304, or VR8440 combination gas control recommended.
Specifications
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Flame Failure Response Time (sec): 2 seconds maximum
- PrePurge: None
- Ambient Temperature Range (F): -40 F to +175 F
- Ignition System Type: Intermittent Pilot
- Ignition Sequence: Continuous Retry
- Typical Gas Control: VR8204, VR8304
- Type of Gas: Natural or LP
- Flame Sense: Single Rod
- Ignition Source: Internal high voltage spark generator
- Ignition Trials To Lockout: continuous retry
- Lockout Timing: continuous retry
- Ignition Trial Time (sec): 90 sec
- Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 2A Main @ 24Vac
- Typical Ignition Hardware: Q345, Q3451, Q3452
- Between Trial Time (sec): 5 minute delay after failed trial for ignition.
Specs
–
| Ignition Type: | Intermittent Pilot |
|---|
