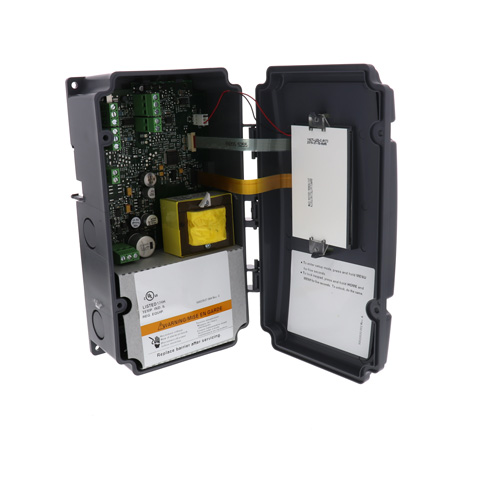

Electronic Temperature Controller with 2 Temperature Inputs, 2 Analog Outputs, 1 Sensor Included
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$253.24 each
In Stock
Get 56 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (3)
This item replaces: T991A1764, T991A1194, T991A1061, T991A1079, T991A1012
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V, 240v, 120v
248°F Max Temp
-40°F Min Temp
8.15625" Height
4-13/32" Width
2-15/16" Depth
Description
–
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
Features
Features
- Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
- Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
- Protect equipment from freezing or overheating on models with the modulating high or low limit control option
- Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
- Configure models with reset in a few easy steps
- Control floating actuators with floating outputs on select models
- Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
- Sensor 5002159-001 included with non-NEMA 4X models
- Sensor T775-SENS-WR included with NEMA-4X models
- Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
- Type: Modulating-NEMA 1
- Analog Outputs: 2
- Relay Outputs: 0 SPDT
- Sensor Inputs : 2
- Voltage: 24 Vac or 120/240 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Relay Contact Ratings (24 Vac): 10.0A resistive
- Relay Contact Ratings (120 Vac):1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
- Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
- Dimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
- Sensor Element: 1097 ohms PTC at 77 F (25 C)
- Number of Sensor Inputs: 2
- Sensors Included: 50021579-001 (1)
- Maximum distance to sensor (ft): Up to 1,000 ft
- Setpoint Temperature Range (F): -40 F to 248 F
- Accuracy (F): ±1 F at 77 F
- Differential Temperature (F): 1 F to 150 F
- Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
- Analog Output Type: Electronic Series 90
Specs
–
| Application: | Electronic Remote Temperature |
|---|---|
| Type: | Modulating |
| Output: | (2) Analog |
| Sensor Inputs: | 2 |
| Voltage: | 24V 240v 120v |
| Hertz: | 60 50 |
| Contact Ratings 24v: | 10.0 A Resistive |
| Contact Ratings 120v: | 9.8 AFL 58.8 ALR 1/2 hp 125 VA Pilot Duty |
| Contact Ratings 240v: | 1/2 hp 29.4 ALR 125 VA Pilot Duty 4.9 AFL |
| Height (Inches): | 8.15625" |
| Width (Inches): | 4-13/32" |
| Depth (Inches): | 2-15/16" |
| Sensor Type: | 1097 ohm @ 77 F PTC 50021579-001 |
| Max Dist To Sensor: | Up to 1000 ft |
| Bulb Size: | 1/4" x 2" |
| Min Temp (F): | -40°F |
| Temperature Range (F): | -40°F to 248°F |
| Max Temp (F): | 248°F |
| Accuracy: | +/-1° at 77°F |
| Throttling Range: | 1°F to 150°F |
| Ambient Operating Temperature: | -40°F to 140°F @ 60 Hz -40°F to 125°F @ 50 Hz |
| Features: | NEMA-1 Enclosure |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
1097 Ohm Standard Temperature Sensor
SKU: 50021579-001
Honeywell
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4 out of 2 reviews
50% would recommend this product
5 star
50%
4 star
0%
3 star
50%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Awesome product!
Easy to program with 2 modulating outputs. The only thing to watch for is the sensors only read accurately to -40. Not a problem in most places, but here in Alaska
we dip below that quite often. Other than that its our standard local controller now.
GRS Controls
North Pole, Alaska
13 years ago
Verified Buyer
Was this review helpful to you?
Well built, lacks flexibility
The unit is easy to program and seems rugged. The disappointments are: 1) it uses only PTC temperature sensors which are available only from Honeywell and their selection is poor (e.g. none with rapid time constant); and 2)it claims to provide PID control but allows adjustment of only a few of the PID constants so that optimal tuning is problematic.
Still Having Fun
Bellefonte, PA
14 years ago
Verified Buyer
Was this review helpful to you?
